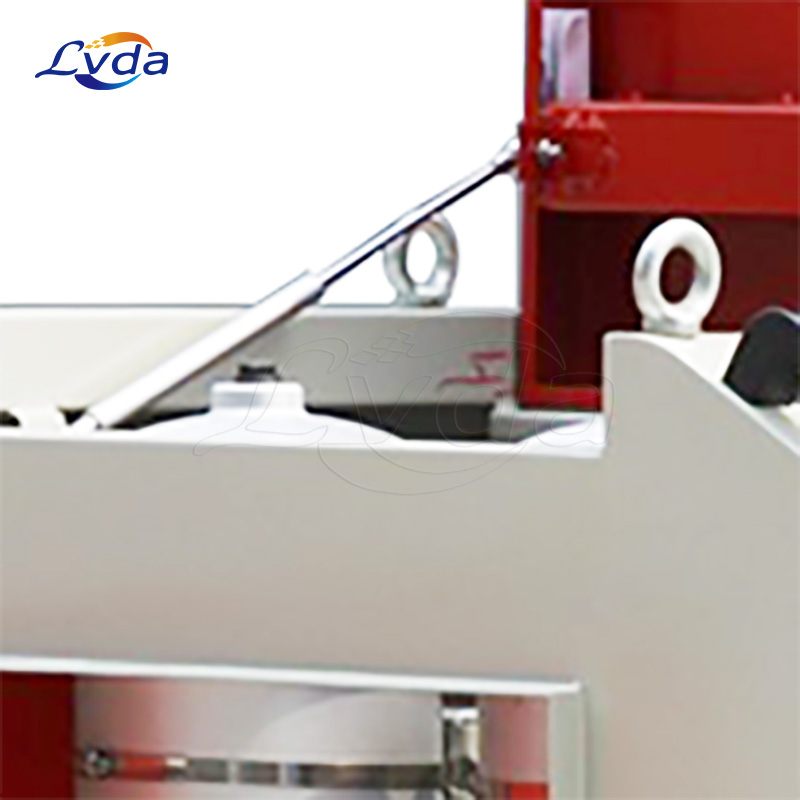

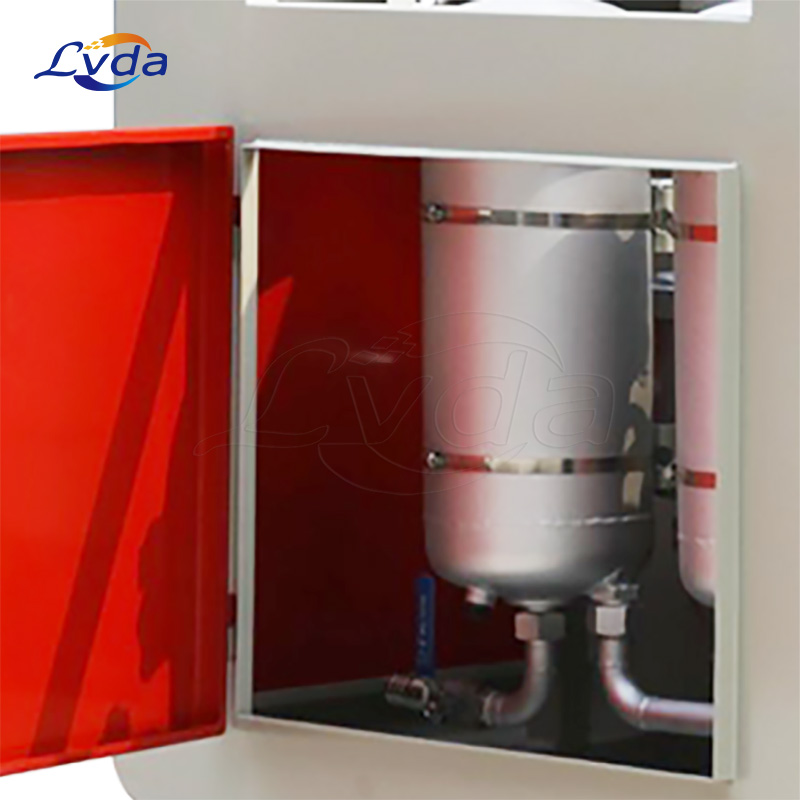

Box-type stainless steel explosion-proof oil purifier for waste oil disposal
All electrical equipment of this series oil purifier are adopt explosion-proof type,the system piping and components made of stainless steel, with high filtering capacity.
Our box-type stainless steel explosion-proof oil purifier for waste oil disposal mainly applies in aerospace industries to filter petrol, grease, kerosene and hydraulic oil or any other occasions which demand high explosion-proof.
Technical parameter
| Model | A0P-B32-*/** | AOP- B40-*/** | AOP- B50-*/** | AOP-B63-*/** | AOP-B100-*/** |
| Rated flow(L/min) | 32
| 40 | 50 | 63 | 100 |
| Rated pressure(MPa) | 0.6 |
| Mpa(MPa) | ≤0.02 |
| Coarse filter precision(μm) | 100 |
| Grade 1 filter precision( μ m) | 3、5、10、20 |
| Grade 2 filter precision( μ m) | 3、S-W |
| Differential pressure | 0.2Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-160 |
| Voltage(V) | AC 380V(Three- phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 |
| Weight(kg) | 135 | 145 | 150 | 156 | 182 |
Dimensions(mm)
| 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 1100 x 660 x 1000 |
Features
*high dirt holding capacity;
*the filter element has long usage life is about 10-20 times of hydraulic filter element.
*The purifier has high filtration efficiency and precision, the oil can reach the second grade of GJB420A-1996 standard through three times repeat filtrate.
*The purifier use circular arc gear oil pump has the features of low noise, stable output.
*All the electrical appliances and motors are explosion-proof components, it is safe and reliable for gasoline and aviation kerosene filtration and can be served as a clean source of washing machine.
*The purifier is remove flexible, compact structure, sampling criteria and facilitate.
*The purifier has beautiful appearance and stainless steel mirror shell. All the piping system is treatment with stainless steel electro polishing. The way of joint seal is HB, and the in and out oil pipe is stainless steel hose, china made.
Applications
Hydraulic lubrication system filtration during refueling
Bypass filtration during operation of hydraulic lubrication system
Cyclic fltration of hydraulic lubrication system before operation
Comprehensively improve the cleanliness of hydraulic lubrication system
Suitable oil types:
Oil, hydraulic oil, lubricating oil, transformer oil, turbine oil, gear oil, rail oil, cutting oil, quenching oil, stamping oil, anti-rust oil, spark oil, etc..
