Product Details

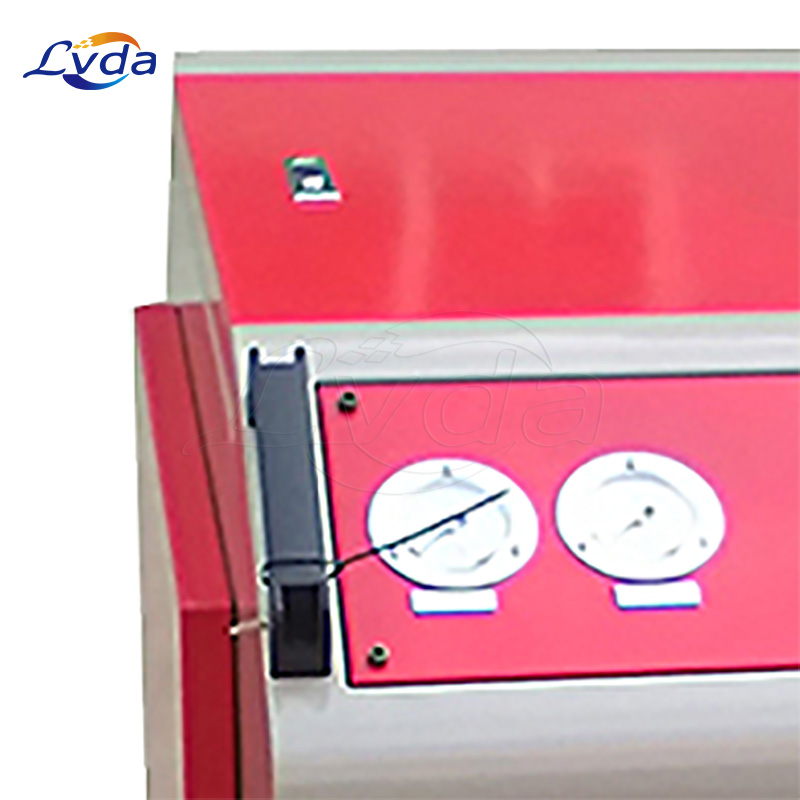

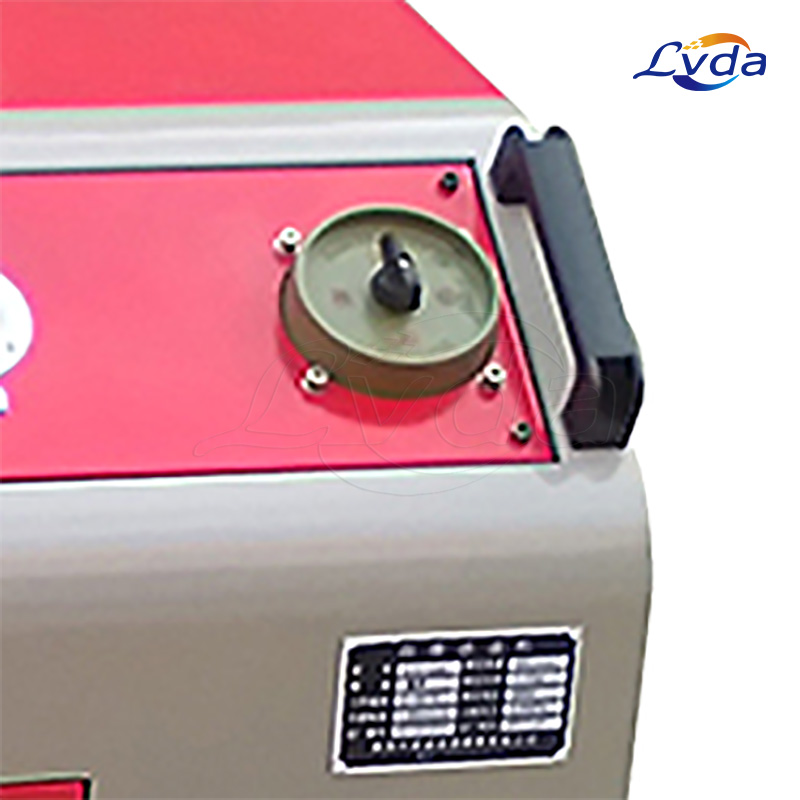

Box type quenching oil purifier & filtration device
Our box type purifier & filtration device for quenching oil is a type of high-efficiency oil filtration purifier.
The Box type quenching oil purifier & filtration device is equipped with multi-stage pressureless reverse osmosis filtration with a filtration accuracy of 2 microns! Get rid of water without heating.
According to the size of different impurities, the characteristics of different pollutants, different filter material materials and prices, the purification levels are distributed in sequence. Add a return pipe to decompress the part from the oil pump to the filter element, so that the oil can penetrate into each filter element in the state of no pressure and slight pressure, prolong the life of the filter element and improve the efficiency of purification. The reverse osmosis filter element is made of three materials: glass fiber, lipophilic and hydrophobic material, and precision membrane. Glass fiber is the main material of the precision filter element; the lipophilic and hydrophobic material can separate the oil molecules from the water, so that the water molecules condense into large water droplets. The box type quenching oil purifier & filtration device can be left on the outside of the filter element and fall on the bottom of the filter bucket due to its weight to discharge regularly.
Technical parameter
| Model | A0P-B32-*/** | AOP- B40-*/** | AOP- B50-*/** | AOP-B63-*/** | AOP-B100-*/** |
| Rated flow(L/min) | 32
| 40 | 50 | 63 | 100 |
| Rated pressure(MPa) | 0.6 |
| Mpa(MPa) | ≤0.02 |
| Coarse filter precision(μm) | 100 |
| Grade 1 filter precision( μ m) | 3、5、10、20 |
| Grade 2 filter precision( μ m) | 3、S-W |
| Differential pressure | 0.2Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-160 |
| Voltage(V) | AC 380V(Three- phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 |
| Weight(kg) | 135 | 145 | 150 | 156 | 182 |
Dimensions(mm)
| 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 1100 x 660 x 1000 |
Features
-The whole box type quenching oil purifier & filtration device is interlocked for safety protection, and the oil inlet is interlocked with the heating system to avoid adverse effects caused by misoperation.
-The box type quenching oil purifier & filtration device can be used for online filtration, demulsification, dehydration, acid removal, and impurity removal, to ensure the normal operation of the unit adjustment and lubrication system, and to prolong the maintenance period of the unit.
-According to the needs of users, PLC intelligent control, touch screen operation, and dynamic display can be selected.
-Imported products can be selected for the main power components, filter equipment and electrical components to improve the performance of the equipment.
-Optional flowmeter with accumulating function.
-According to the safety environment of the use site, BT-level "or" CT-level explosion-proof can be selected.
-User-selectable whole machine structure.
-The structure of the whole machine can be made into mobile or fixed.
-Box type quenching oil purifier & filtration device can be made into fully enclosed type, canopy type, canvas canopy and open type.
-The color of the box type quenching oil purifier & filtration device can be arbitrarily selected as needed.
Applications
Suitable oil types:
Oil, hydraulic oil, lubricating oil, transformer oil, turbine oil, gear oil, rail oil, cutting oil, quenching oil, stamping oil, anti-rust oil, spark oil, etc.
