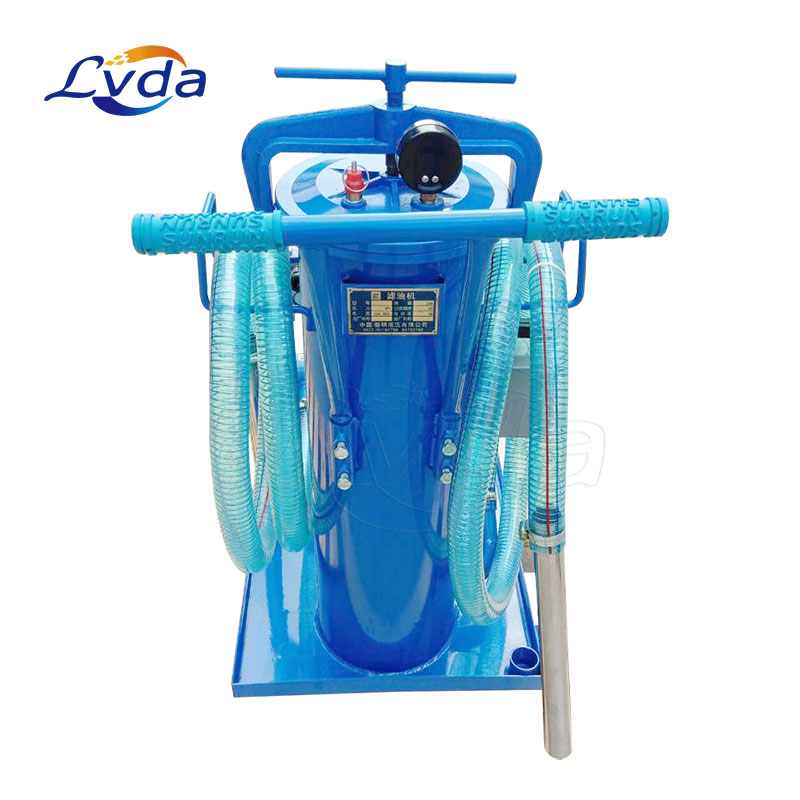

Mobile portable cooking/cooked oil filter and purify trolley
This mobile filter trolley is ideal for batch processing, or fltering from tanks or drums. It can be used for filtering new fluids during transfer and replenishment, as well as, filtering fluids currently in service. This mobile unit is most effective controlling particulate problems before they cause damage to critical production equipment.
Our filter trolley uses a positive displacement pneumatic pump that transfers fluids by movement of diaphragms driven by compressed air.
The heart of the unit is the ultra-fine filter element. High degrees of separation guarantee the highest degree of cleanliness and thus the highest level of component protection. The dirt holding capacity of the ultra-fine filter elements allow the unit to be operated economically. And it is already equipped with hoses ready for connection.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

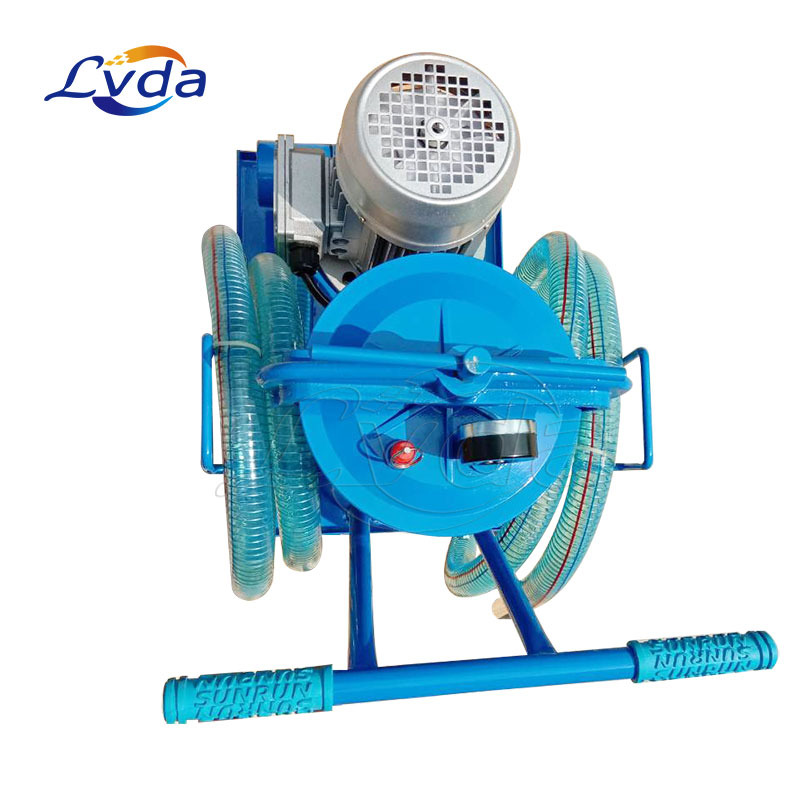

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
-Simple filling, cleaning and pumping over
-Ergonomically unbeatable, optimal handling
-High filter performance
-Optionally with portable particle counter
-Optionally with integrated particle monitor
-Optionally with integrated humidity sensor
-Simple, compact and ergonomic
-With oils for hydraulic or lubrication systems can be easily filled or cleaned or be pumped around without filtering.
-The ergonomic design also allows for easy handling tightest working space.
Applications
Our Mobile portable cooking/cooked oil filter and purify trolley can be used with cooking oils,cooked oils, coolants, metal working, and other fluids. Most of these fluids are out of spec before they even come in contact with the oil systems. The unit is the ideal means of pre-fltering and transferring these fluids.
