Product Details

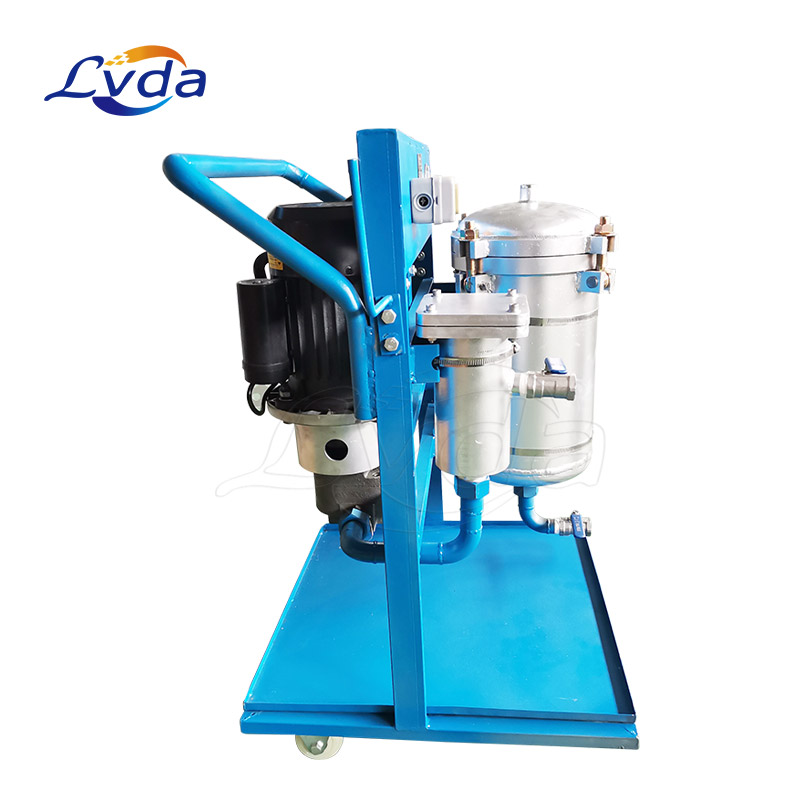

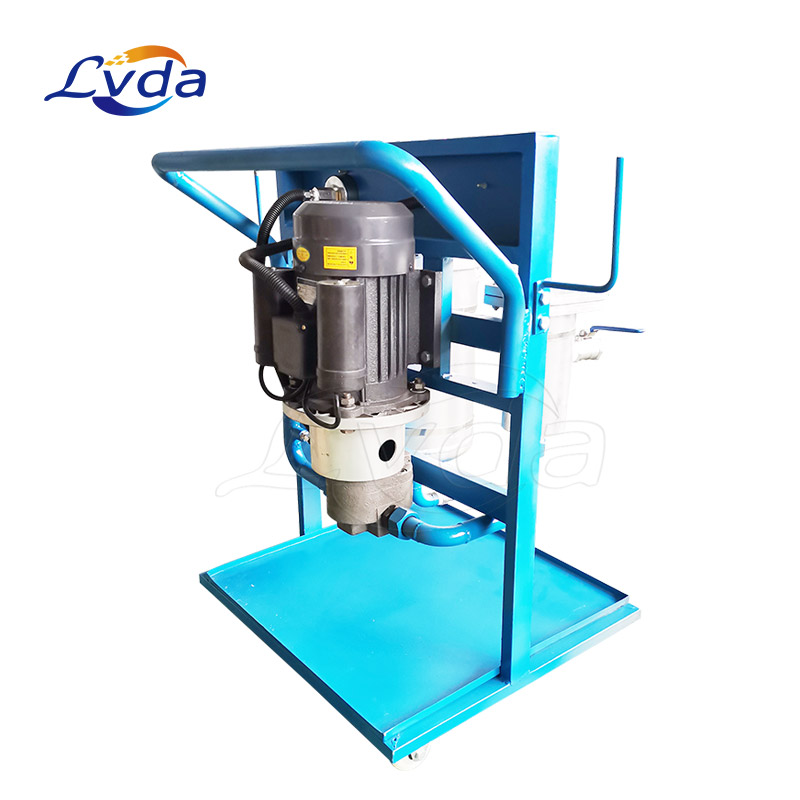

Mobile filter system for glycerine
The mobile facility is equipped with extensive facilities. All functions are monitored, and the system switches off automatically in the event of a fault. The cause can be localized immediately.
The mobile filter system for glycerine filters the finest components from the glycerine, which would otherwise be pressed into the surface of the plastic window during the bending process of the round arches.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Flow Rates Range from 1 GPM to 35 GPM
Electrical Service 3Phase/60Hz/210V
Self-Priming Positive Displacement Gear Pump
Internal Relief Valve Set at 100 PSI
Claw-Style Vacuum Pump – pulls deeper vacuum, higher CFM, and requires less maintenance
Motor Class 1 Explosion Proof, 50 Hertz, 3 Phase
Assembly Frame: Powder Coated Carbon Steel Platform
Inlet Suction Strainer for Pump Protection
Piping and Fittings – Carbon Steel
Filter Housing – Powder Coated, Epoxy Lined, Carbon Steel
Hoses: 20’ Medium Pressure Hydraulic
Nitrile (Buna-N): -40°F to 150°F
Fluorocarbon (Viton)*: -15°F to 200°F
Applications
Filter new glycerine
Filter the oil in use
Fill in and filter new oil
Metallurgy, mechanical oilfield, chemical, mining, electric power, transportation, manufacturing and other industries purify hydraulic oil, hydraulic transmission oil, gear oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, heat transfer oil, coking oil, etc.
