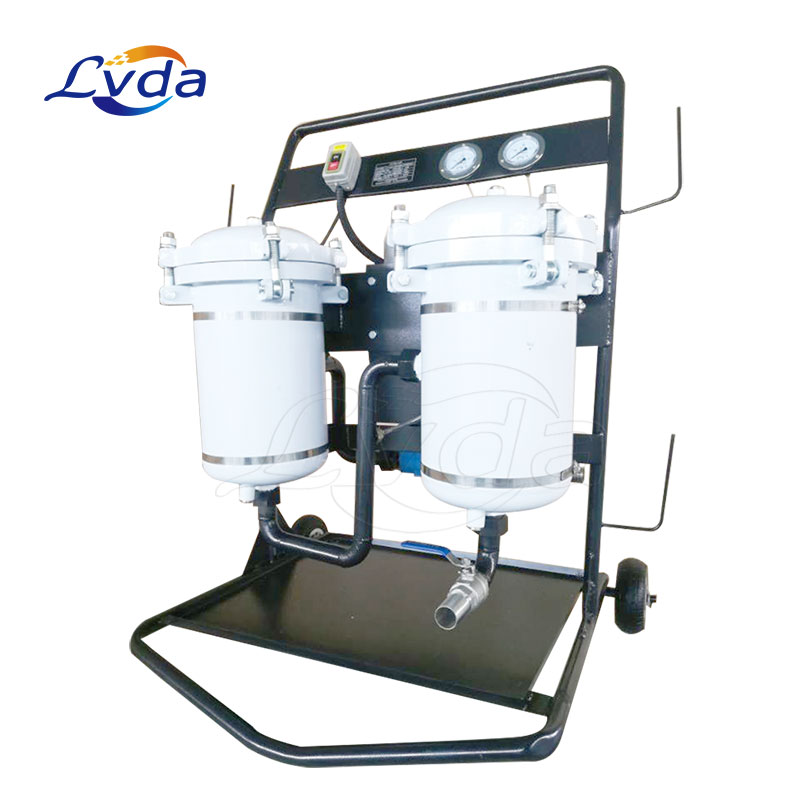

Mobile filter cart skid
Our Mobile filter cart skid is Lightweight and Has Power to Filter Oil Viscosities up to 600cSt.
Our mobile filter cart skid is an excellent choice for off-line filtration for a wide variety of applications. Extremely mobile and lightweight, our filter carts have all the power needed for filtering oil viscosities up ot 600cSt (ISA VG 680) at 100F within ambient temperatures ranging from -15F to 150F.
We offer a mobile filter cart skid that filters a single gear oil or motor oil as well as a dual filtering tandem filter cart that filters two different oil types – saving time and money. Our filter carts are ideal for filtering contaminated systems, flushing new or repaired systems, pre-filtering new oil, transferring oils, topping off reservoirs, collecting oil samples for analysis and for dispensing new oil.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

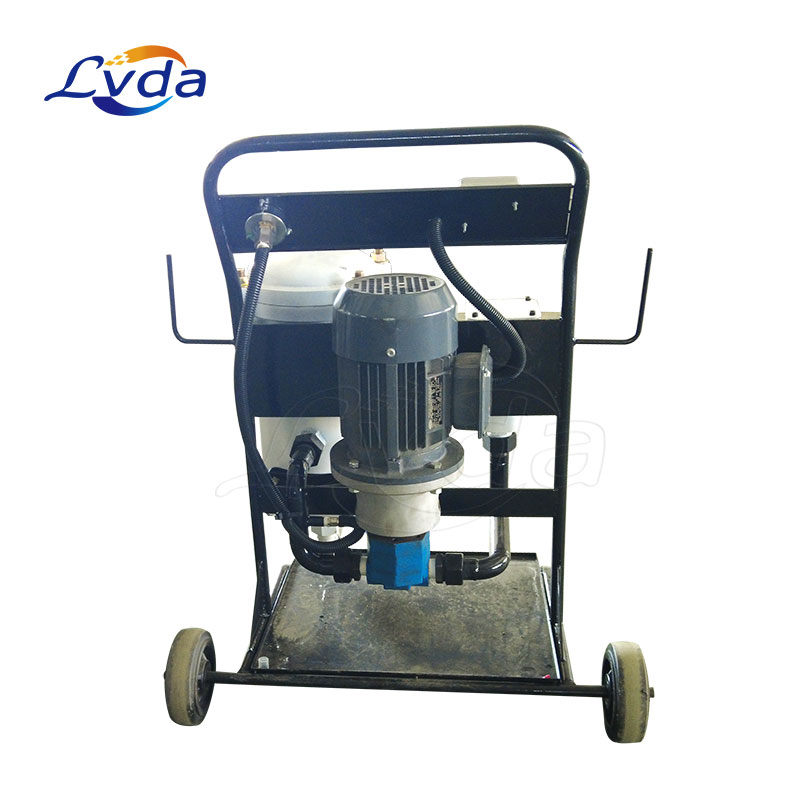

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Single Oil Filter Cart Frame: Carbon Steel
Dual Oil Filter Cart Frame: Carbon Steel with Drip Pan
Motor: 1HP, 115vac, 60Hz or Pneumatic
Pump: Heavy Duty, Cast Steel Gear Pum
Power Switch: Sealed On/Off Power Switch
Cord: 40ft Retractable Cord Reel
Filter Heads: Medium Pressure, Cast Aluminum Heads
Hoses: 7ft, Clear PVC, Steel Reinforced Hose or Hydraulic Hose
Hose Connections: Various Quick Connect Options Available
Applications
Mineral oil
Particulate and Water Removal
Hydraulic Reservoir Maintenance
Gearbox Flushing & Oil Change
Filtration System Upgrades
Turbine Oil Conditioning
Refinery Upset Conditions
Complete System Flushing
Liquid Coalescing and Separating
High Viscosity Lubrication and Hydraulic Oils
Transfer and Replenishment of New Fluids
Reusing Oil and Prolonging Machinery Life
