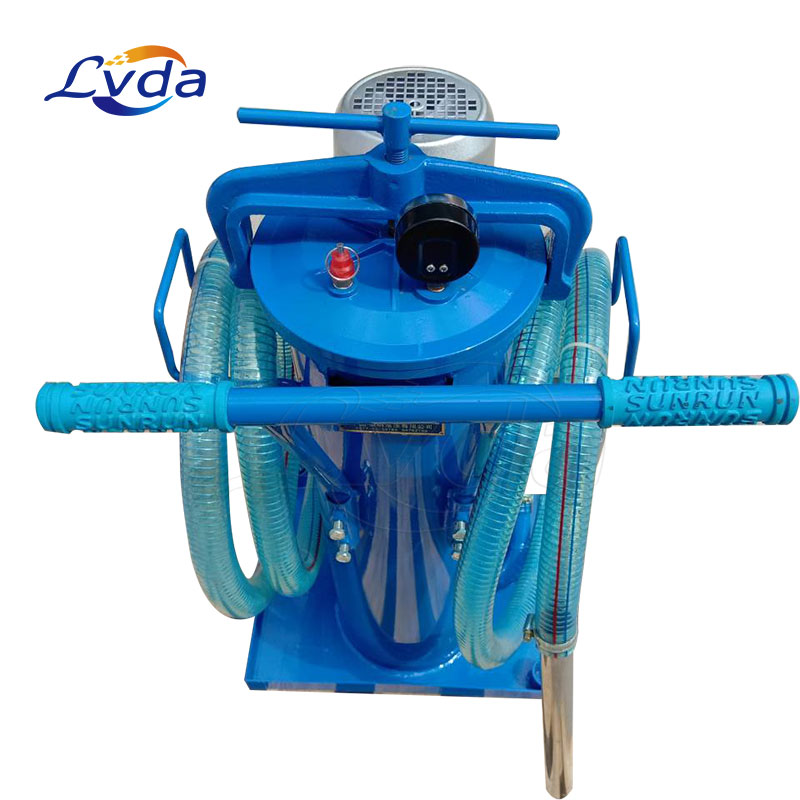

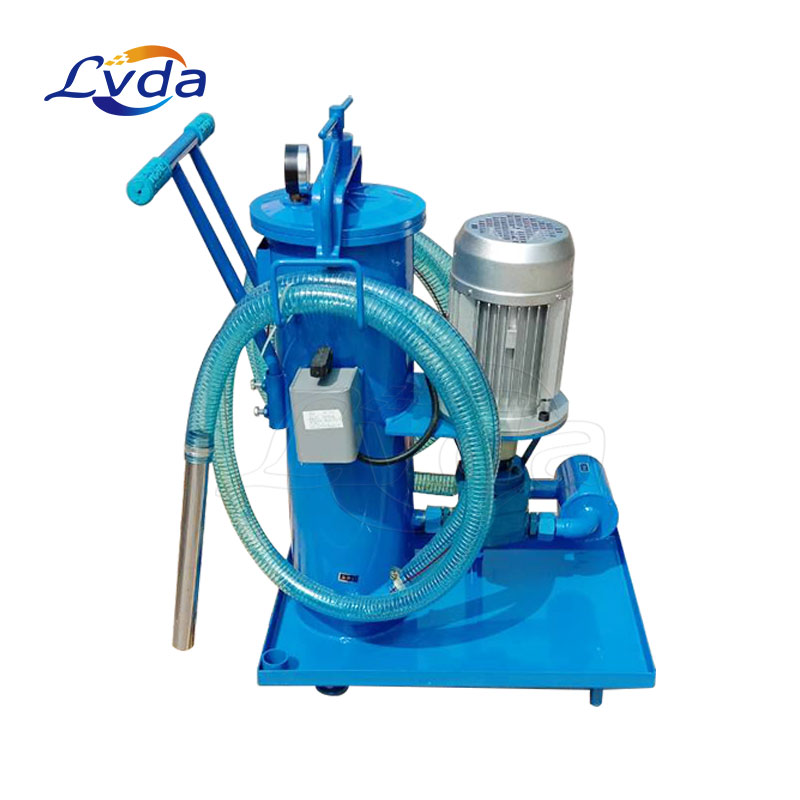

Dielectric insulation oil filtration unit mini mobile skid
The dielectric insulation oil filtration unit mini mobile skid removes solid particles, water and gases from dielectric insulation oil.
The dielectric insulation oil filtration unit mini mobile skid is used in the process of installation, repairs and operation of high voltage oil filled equipment (power transformers2, high voltage switches3 etc).
Operating conditions range:
ambient temperature from 278 to 313°К (+5 to + 35°C/ 8°F to 104°F);
atmospheric pressure 84 to 106.7 kPa (630 to 800 mm.hg);
elevation up to 2000 meters/6561 feet above sea level;
outdoors and under canopy;
indoors with adequate ventilation.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
No need any sorbents, silica gel or zeolite for oil drying process
Unit is compact, protected with metal doors, can be trailer mounted for on field usage
Easy to operate and maintain, one-man operation
Low energy consumption, noiseless and highly effective
Applications
Dielectric insulation oil purification and filtration.
To clean-up your engine oil system before restarting following a component failure.
Providing clean fluid when re-filling and adding fluid to the system reservoir.
To reclaim contaminated fluid.
Pre-filling and cleaning up hydraulic systems on new or re-built machinery and equipment.
For offline contamination of engine oil systems.
To empty waste engine oil fluid quickly.
For other uses in many industries including steel production, machine tools, automotive, etc..
