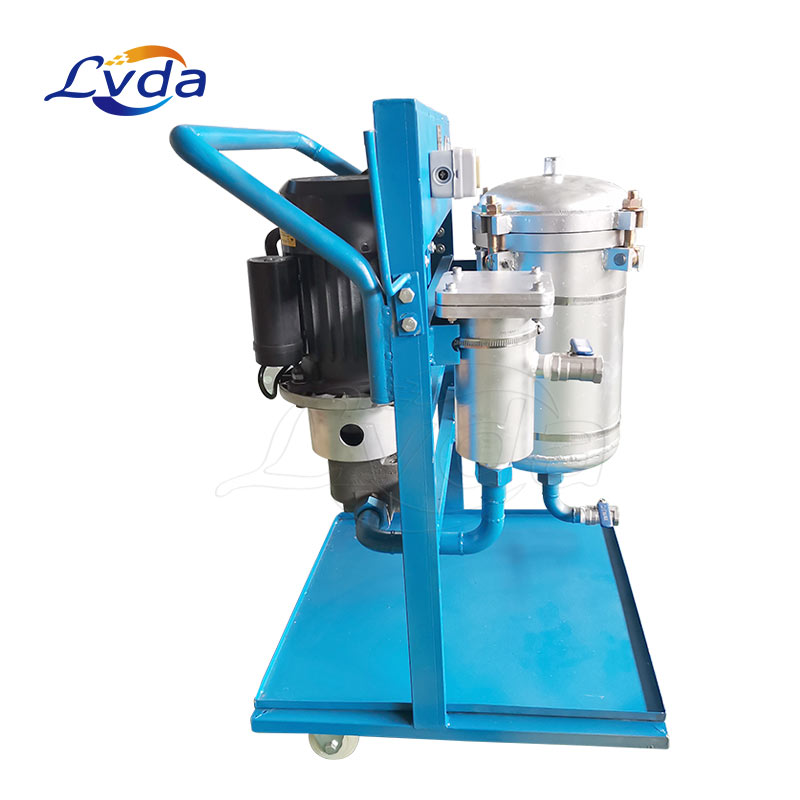

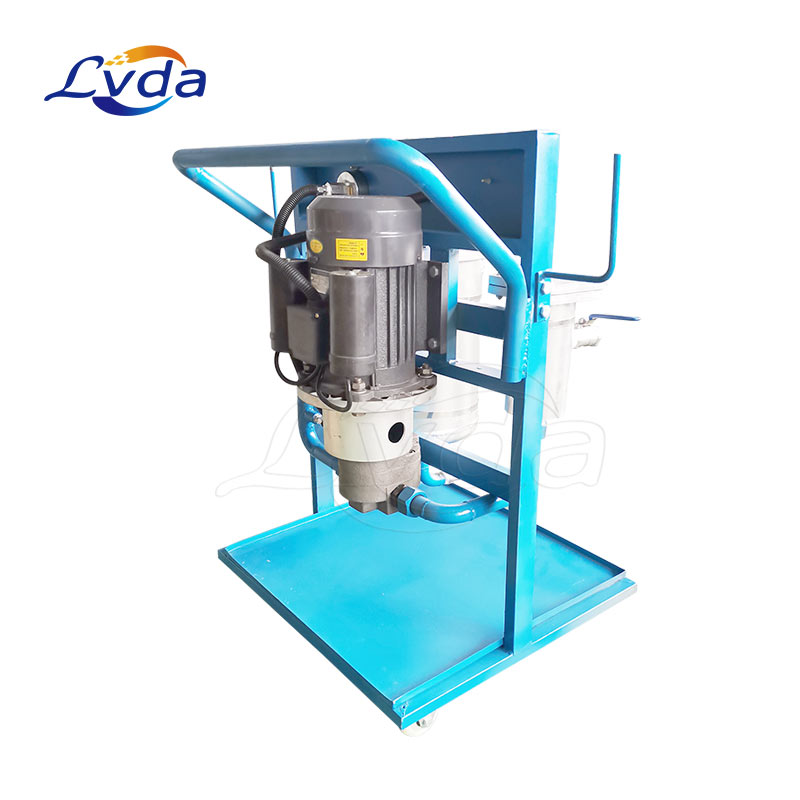

Mobile insulation oil purification and filtration skid
Our mobile insulation oil purification and filtration skid increases the reliability of power transformer, eliminates unscheduled repairs and downtime, and also saves money on purchases of fresh oils. We produce customized oil filtration skids for individual orders, supervise installation and commissioning and assist with the startup of equipment. In addition, it is possible to add new features and functions.
One important feature of our mobile insulation oil purification and filtration skid is the capability to operate with energized transformers.
Transformer oil often contains water that has a significant adverse effect on the quality and performance of the oil, decreasing breakdown voltage and accelerating aging. Our company offers a range of moveable oil filtration skids for insulation oil filtration and purification. These systems rid the oil from water, gas and solid particles.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Explosion proof
The processed material is not subjected to heating, chemicals or other factors that can adversely affect its properties;
Low power consumption;
Relative compact dimensions;
High mobility
Applications
The mobile insulation oil purification and filtration skid applies to treat various insulating oils, transformer oil, mutual inductor oil, switch oil etc.
