Product Details
Mobile portable mineral oil filtration system purifier skid
Our Mobile portable mineral oil filtration system purifier skid is used for filtration and flushing of gearboxes in rough environments, especially within the mining sector, such as truck shops, service sites etc. To optimise the filtration effect, our mobile portable mineral oil filtration system purifier skid automatically adjusts the flow through the filters based on oil temperature and viscosity, and a built in oil contamination monitor makes it possible to monitor the oil cleanliness level during the entire filtration and flushing process.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

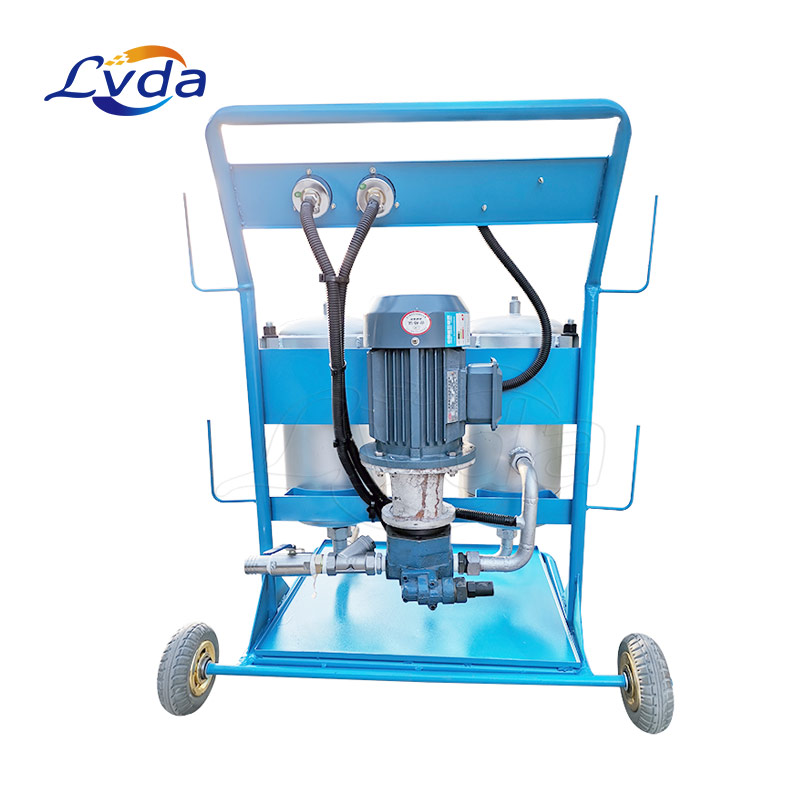

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

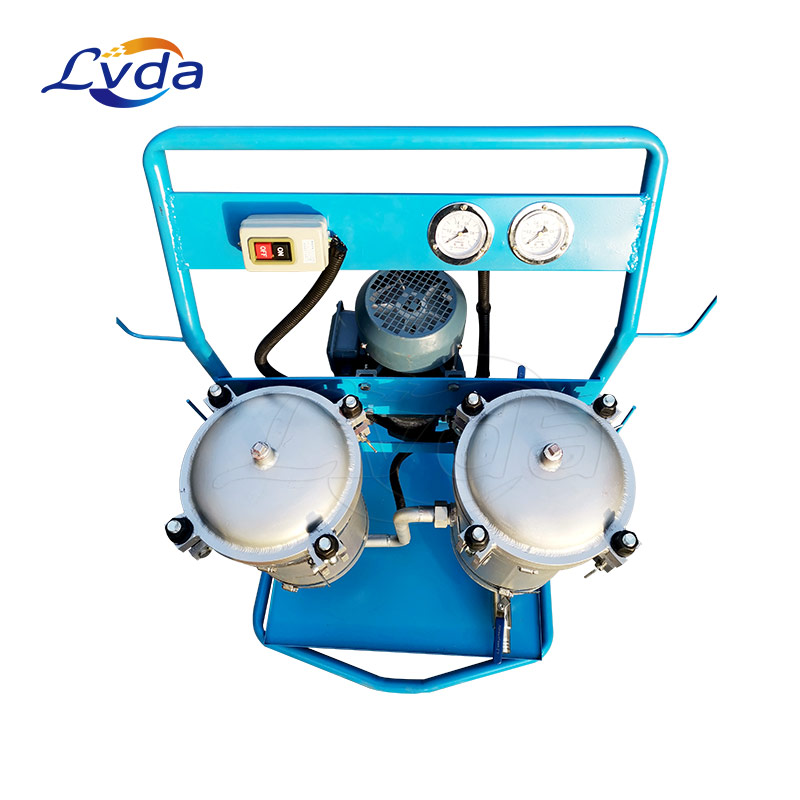

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Mobile mini type,, waterproof, dustproof, move easy.
Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil.
Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
Less power consumption, safe, and reliable.
Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
Applications
This mobile portable mineral oil filtration system purifier skid is used for insalating oil purifying mainly.
Also, it is mostly used in low-viscosity mechanical lubricating oil such as hydraulic oil, turbine oil and lubricating oil etc..
Applicable oil: For the regeneration of lubricating oil such as mechanical oil, hydraulic oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, gear oil, gasoline, etc.
