Mobile insulating oil filtration and purification life-extender system skid
Our mobile oil life extender filtration units are customer specific oil filtration and cooling units for extending oil life and lowering operating costs.
Our mobile insalating oil filtration and purification life-extender system skid,or Offline Filtration and Cooling Units (Oil Life Extenders), specifically designed and custom designed with the aim of extending oil life in situations where excessive heat is an issue.
When insulating oil becomes extremely hot, the mobile oil life extender filtration units will significantly extend the life of the insalating oil.
Our mobile insulating oil filtration and purification life-extender system skid follow the rule, for every temperature increase of 10°C above 40°C, the life of an oil is halved!
Several case studies have shown that oil changes can be postponed from once every month to once every two years!
The main advantage is that the machines experienced less wear, resulting in less downtime and lower maintenance money.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

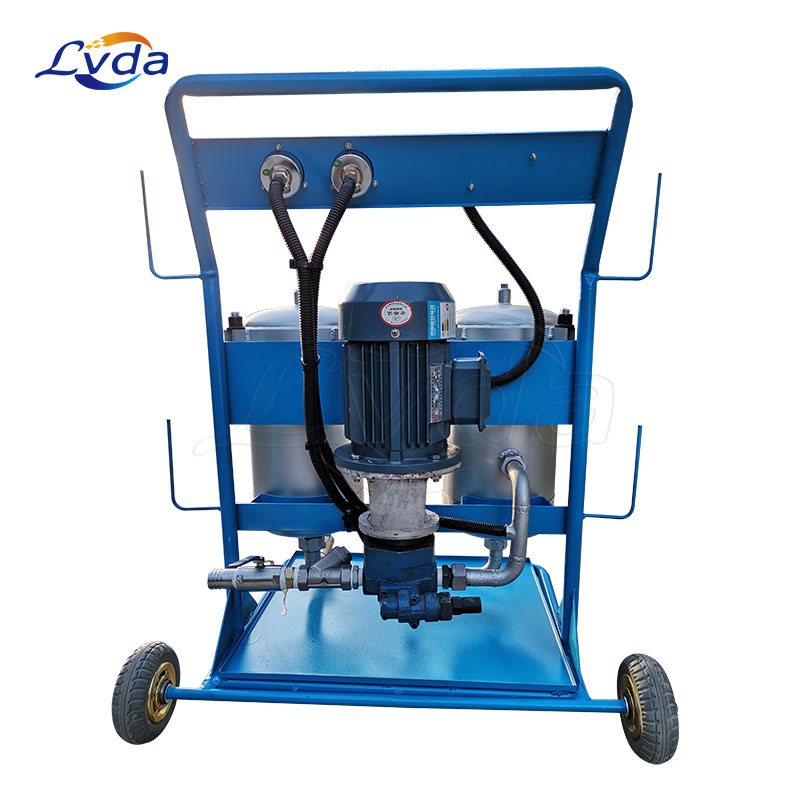

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

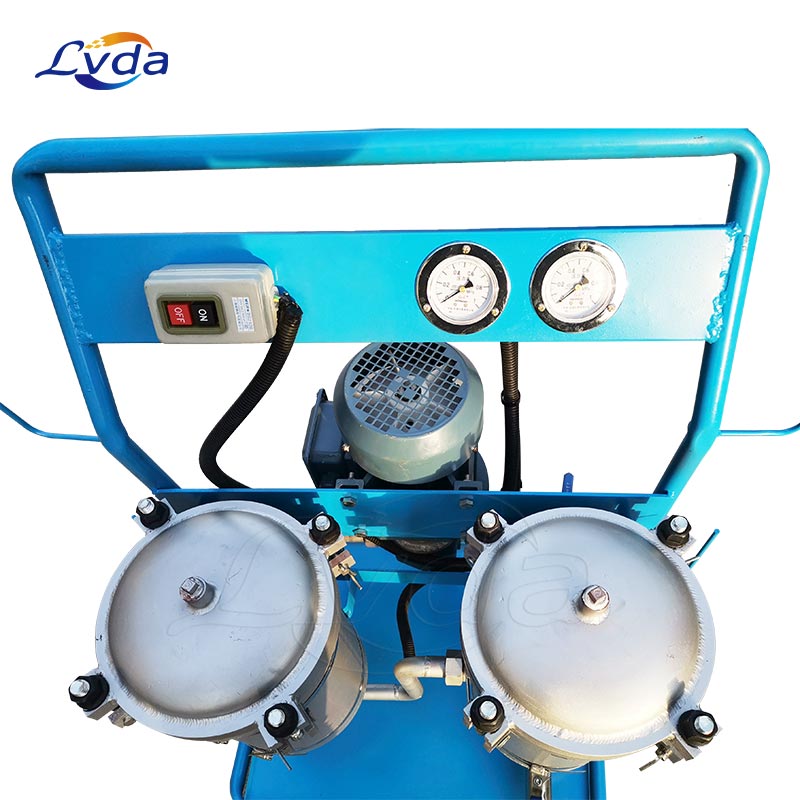

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Unique multi level vacuum chamber design
Automated control system for ease of use and unattended operation
Intuitive display of vacuum, pressure, temperature and filter conditions
Easy access to all operating parameters
Built-in logging buffer for historical informaiton retrieval
Electronic flow meter with lifetime and user resettable displays
Oil level control including high and low oil level safety shutdown
Multi-stage foam control for optimal processing
Oil pump with single mechanical seals
Low watt density heaters to aid in water removal
Inlet and outlet filters for particulate removal
Booster / backer vacuum pump to ensure a deep consistent vacuum
Thermostatically controlled heater with selectable capacity
Heavy duty rigid steel construction for long lasting durability
Oil retentive skid design for spill containment
Flow capabilities from 20 GPH to over 1000 GPH
Mobile configuration (enclosed trailer)
China-made filter cartridge
Oil trap with level sensor
Oil inhibitor system
Liquid nitrogen trap
Particulate analyzer
Alternate power configurations
Additional options available according to your specific needs
Applications
All types of insulating oils
Transformer insulating oil
Switchgear insulating oil
Load tap changer insulating oil
Other liquid applications requiring the removal of impurities and restoration
