Movable oil filter system
All advantages of our movable oil filter system is its compact and movable, as well as good quality.
Our movable oil filter systems can be used anywhere in the industries.
Our movable oil filter systems have the standard filters but for movable applications. The movable units are of very high quality and very reliable. They serve to purify the fuel or oil, keep it clean and make it 97% pure. The systems are on a cart, making them easy to move. In addition, they are very easy to maintain and operate. A cheap and mobile solution for cleaning your oil tank, your lubircation systems or your machine oils!
The movable oil filter system is designed to bring fuel and light hydraulic fluids to a very clean and clear situation. It effectively kills water, silt and all types of sediment. This movable oil filter system is easy to use, easy to maintain and a cost-effective solution for cleaning tanks. The unique thing about this movable oil filter system is simplified mobile application.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

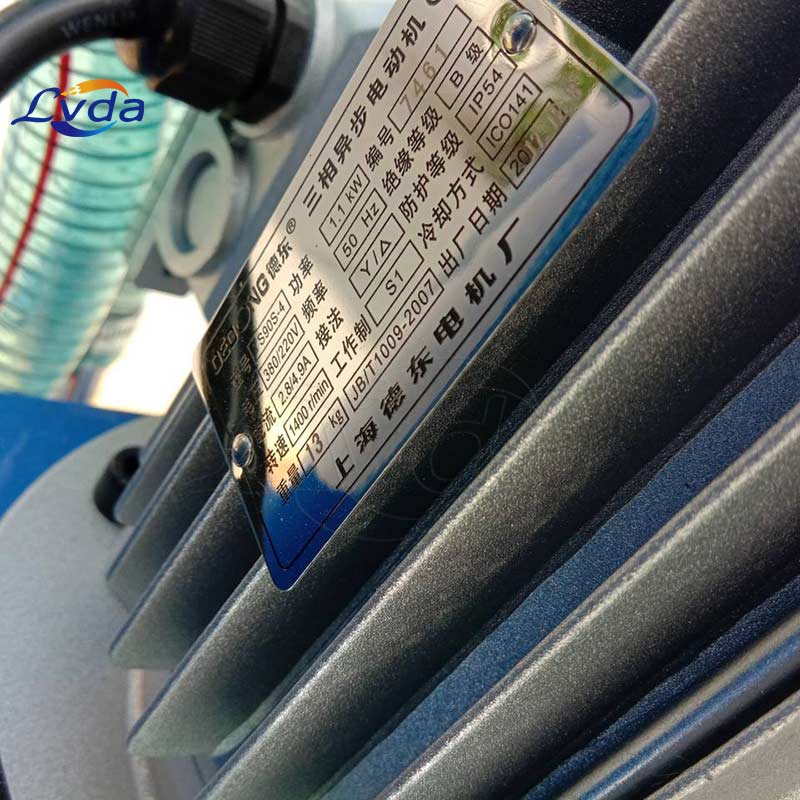

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Flow Range of 3 LPM - 70 LPM
Remove Free, Emulsified, and Dissolved Water - Achieve Overall Water Content As Low As 20 PPM In Multi-Pass
Maximizes water extraction rates, and enables the system to operate effectively on high viscosity gear oils
Adjust Flow Rates to the Optimal Rate to enhance the overall performance
Entrained Air and Gas Removal – Degassing via Vacuum Distillation
Acid Removal – Can Be Equipped with Fullers Earth or Activated Alumina Cartridges to Neutralize Acid and Lower TAN
Varnish Removal – Can Be Equipped with ion Charged Bonding Cartridges To Remove Insoluble Varnish
Visually Monitor Fluid Condition through Plexiglass Windows
Upstream and Downstream Oil Sampling Ports
Differential Pressure Gauge – Plugged Filter Indicator Light
Low-Watt Density Heaters
Dimension and Arrangement Design Flexibility
Condensate Water Holding Tank
PLC Control Start/Stop
Applications
●Filter hydraulic and lubricating oil
●Clean up the hydraulic and lubricating oil in use
●Bypass fltration of hydraulic lubrication system
