Product Details
Moveable membrane oil purifier - “an oil dehydrator and filter cart”
Membrane Oil Dehydrator and Purifier is a simple and effective portable or permanent kidney loop filtration system that works offline or online to remove:
100% Free Water
100% Emulsified Water
Dissolved Water Below 50 ppm
Dissolved Gases
Particulate Below ISO 16/14/12
Moveable membrane oil purifier does not use disposable water absorbing filters that require constant changing. Instead it dehydrates water from the oil using a proprietary, maintenance free, hollow fiber technology, along with an online miniature vacuum source, which has unlimited water removal capabilities.
Our moveable membrane oil purifier is extremely portable and compact, so it can get into spaces normal dehydrators cannot. It also has very few moving parts compared to standard dehydrators. Its set and forget design makes it as simple and easy to use as a filter cart.
When it is not being used to remove water from contaminated lube or hydraulic systems, it can be used as an oil transfer/filter cart.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.

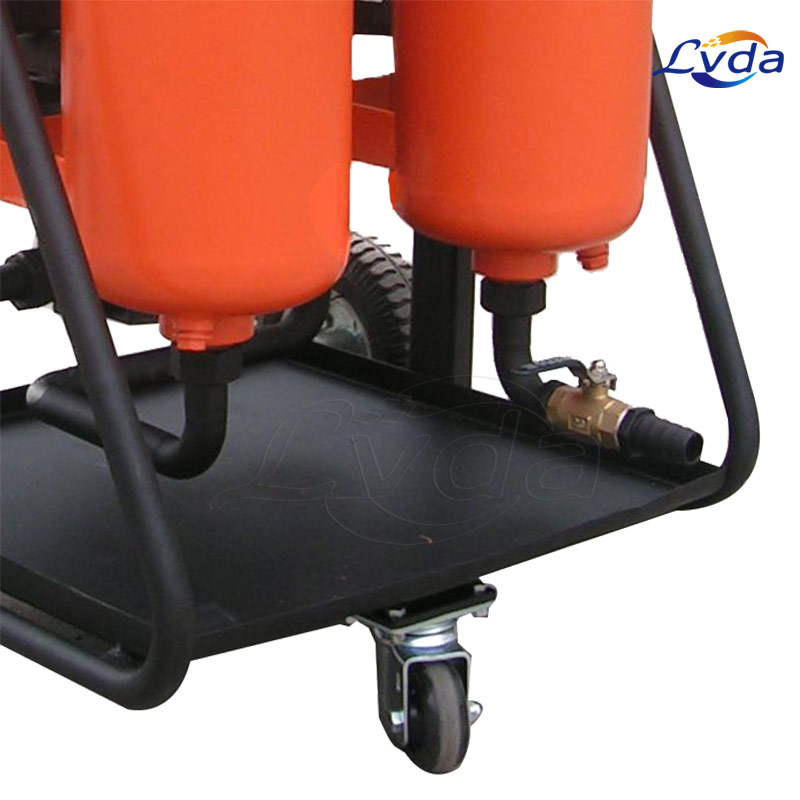

The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

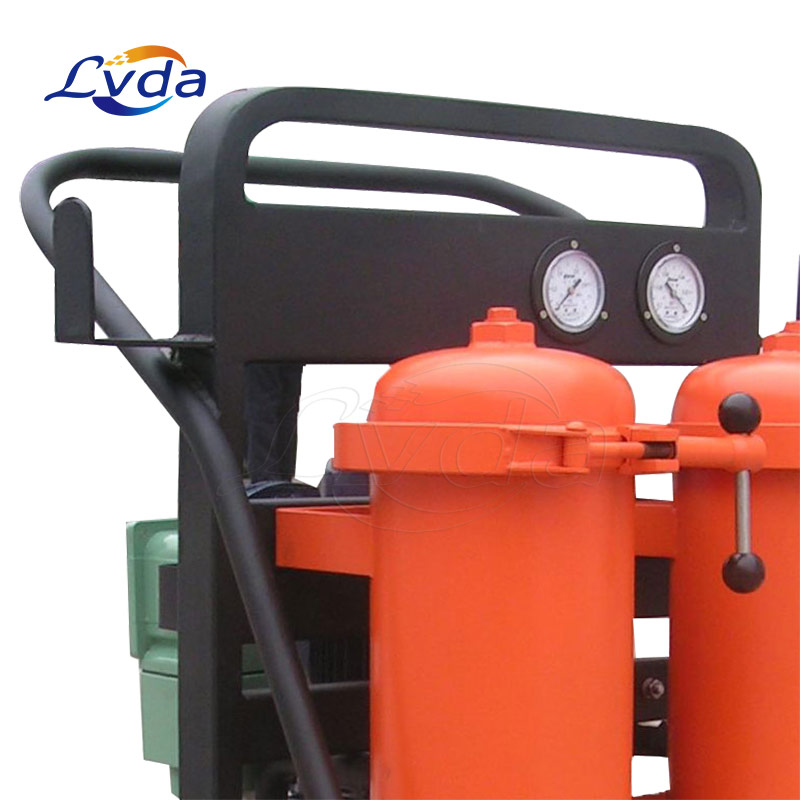

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Flow Rates Range from 1 GPM to 8 GPM
Inlet Oil Sample Valve
8 micron B2000 Spin-On Filter
Outlet Oil Flow Indicator Sight Glass
Water Removal Membrane
High Quality Heavy Duty Washdown Motor
Self-Priming Positive Displacement Gear Pump
Low Maintenance Gast Rocking Piston Vacuum Pump
Assembly Frame: Chemically Resistant Powder Coating
JIC or ORB Hydraulic Leak Resistant Fittings and Connections (where allowable)
Puncture Proof Tires
Operating Temperature
Nitrile (Buna-N): -40°F to 150°F
Fluorocarbon (Viton)*: -15°F to 200°F
High Temperature/Phosphate Ester Design
Applications
Power Generation
Combustion Turbine Lube
Coal Mill Gear Boxes
Conveyor Gear Boxes
Boiler Feed Pump Lube
Windturbine Gear Boxes
EHC Control
ACC – WCC Gear Boxes
Scrubber Equipment Gear Boxes
Light Industrial
Oil Reclamation
Blow Molding Hydraulic
Machine Tool Hydraulic
Injection Molding
Automotive transfer line Hydraulic Oil
Fuels and Chemical
Drilling Equipment Gear Box Flushing
Extruder Gear Boxes
Compressor Lube
Boiler Feed Pump Lube
Offshore Drilling Platforms
Transportation
Ship Board Hydraulic-Lube
Diesel Locomotive Gear Box
Transmission Systems
Pulp & Paper
Wet end/dryer lube
Press section lube and hydraulics
Boiler Feed Pump lube
Cooling Tower Gear Boxes
Military
Military Equipment Hydraulics
Aircraft – Road Equipment
Agriculture
Conveyor Gear Boxes
Harvesting Equipment Hydraulic
Food & Beverage
Food Grade Hydraulic Oil
Conveyor Gear Boxes
Primary Metals
Roll mill gear and pinion lube
