Product Details
Hydraulic/lubrication filter mobile portable equipment
We provide a full range of mobile filtration systems to meet every critical industrial filtration need, available for purchase and available to rent. Our most popular systems, our portable filter carts, are ideal for use in industrial plants and with many other applications because they are versatile, reliable, and portable. A portable filter cart can be used to filter nearly any type of hydraulic fluid, including insulating oils, lubricating oils, and coolants.
How would you like to completely customize your mobile filtration system to meet your needs? We can do that for you too. Our systems are perfect for removing particulate and water contamination from hydraulic fluids, such as high-viscosity lubricating oil. A filter cart can also help transfer and replenish new fluids, as well as flush fluids that are already in service with high-efficiency elements.
Our mobile filter systems can handle flow rates as low as 0.5 GPM all the way to higher flow rates (such as 5 GPM, 10 GPM, and 22 GPM) that are required in most industrial applications. We offer a large variety of materials and types of construction, including stainless steel and explosion-proof options!
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

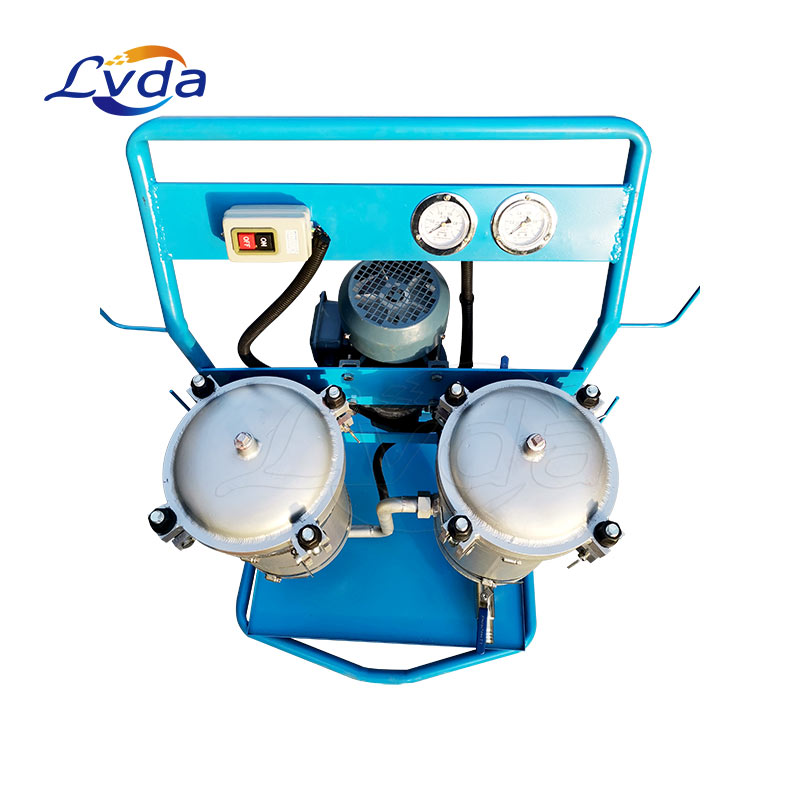

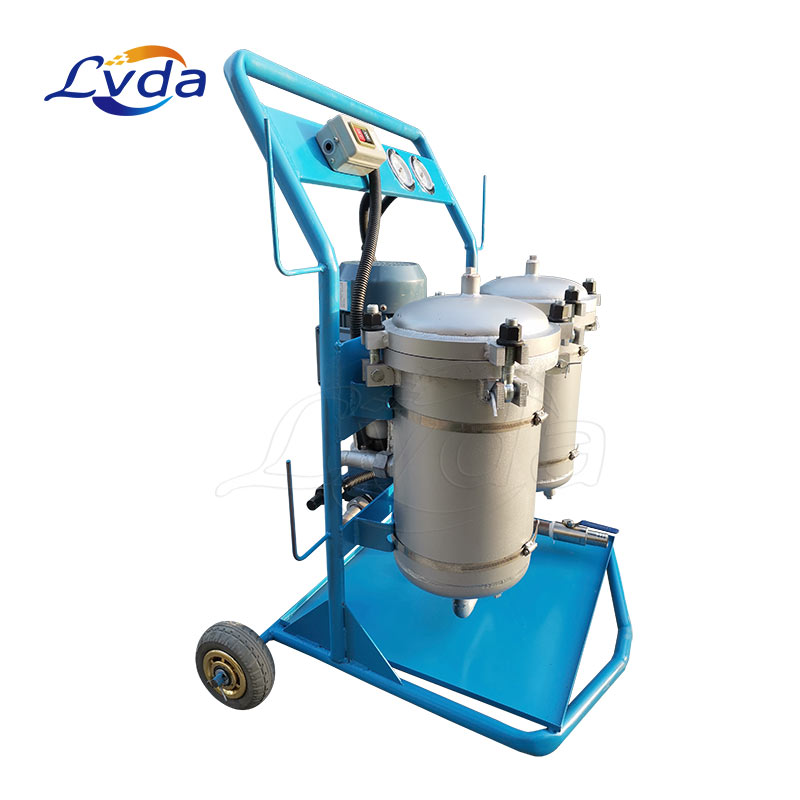

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Movable, high filtration precision, easy to operate
Small size and portable, low-noisy.
No need of filter paper, no contamination to ground and at very economical price.
It can transfer oil from long distance and high lift.
Can be installed with well-sealed anti-explosion electric control cabinet.(optional)
Applications
Particulate and Water Removal
Hydraulic Reservoir Maintenance
Gearbox Flushing & Oil Change
Filtration System Upgrades
Turbine Oil Conditioning
Refinery Upset Conditions
Complete System Flushing
Varnishing
Liquid Coalescing and Separating
High Viscosity Lubrication and Hydraulic Oils
Transfer and Replenishment of New Fluids
Reusing Oil and Extending Machinery Life
