Product Details
Mobile oil filter cart oil filtration trolley
Mobile oil filter cart oil filtration trolley is one of our supurior products. This kind of oil filtration trolley can remove particle impurities from industrial oil efficiently.
This series mobile oil filter cart oil filtration trolley is widely used in power plants, power stations, chemicals, petroleum, machinery, industrial and mining enterprises for filtrating insulating oil, hydraulic oil, turbine oil, compressor oil, refrigeration oil, diesel oil and other lubricants; and the purification of impurities, dust, etc., to achieve high-precision oil standards. It has functions such as oil pumping, refueling, and circulating filtration to meet various on-site requirements. It can be used for centralized recovery and treatment of oil, and can also be used for supporting large-scale equipment, prolonging the maintenance period of equipment, reducing the cost of replacing new oil, and is also an ideal equipment for scientific research institutes to conduct oil purification tests.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.

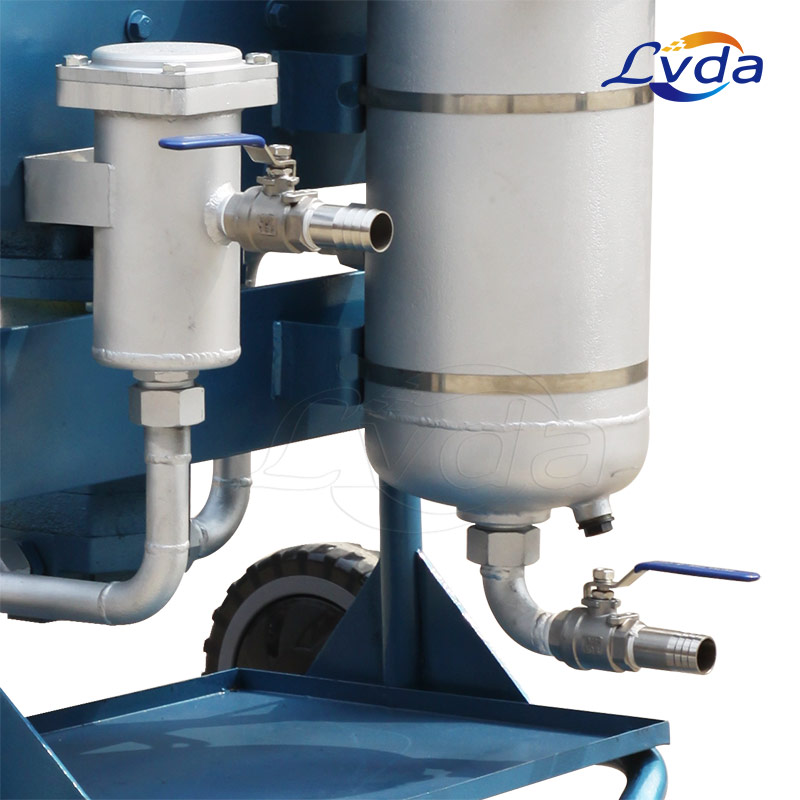

There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.

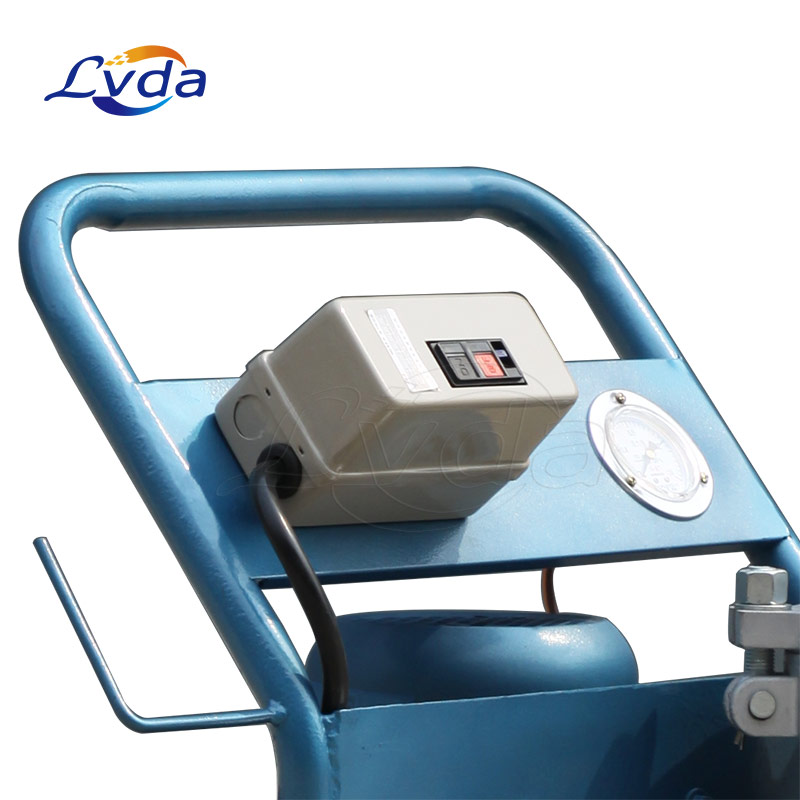

The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Prevents costly component damage and system failures
Reliable and convenient operation
Increased oil service life
Reduction in Life Cycle Cost(LCC)
Applications
The seires mobile oil filter cart oil filtration trolley can be applied in different industries, for example, machine tools, plastic injection moulding machines, paper mills, construction machinery, steel industry, marine & offshore, mobile industry.
