Product Details
Insulation oil moveable filtering and purification machine
When the treated oil is used for edible usage, it can be made of food grade 304 stainless steel material. This machine is of low cost and is easy to use, with small size and light weight. It is also widely used for oil filling and filtering for machine tools, vehicles, oil tanks, oil switch and mutual inductors. It doesn't use consumable paper filter. It adopts stainless steel filter elements which can be washed for repeated use. So the process cost is low.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

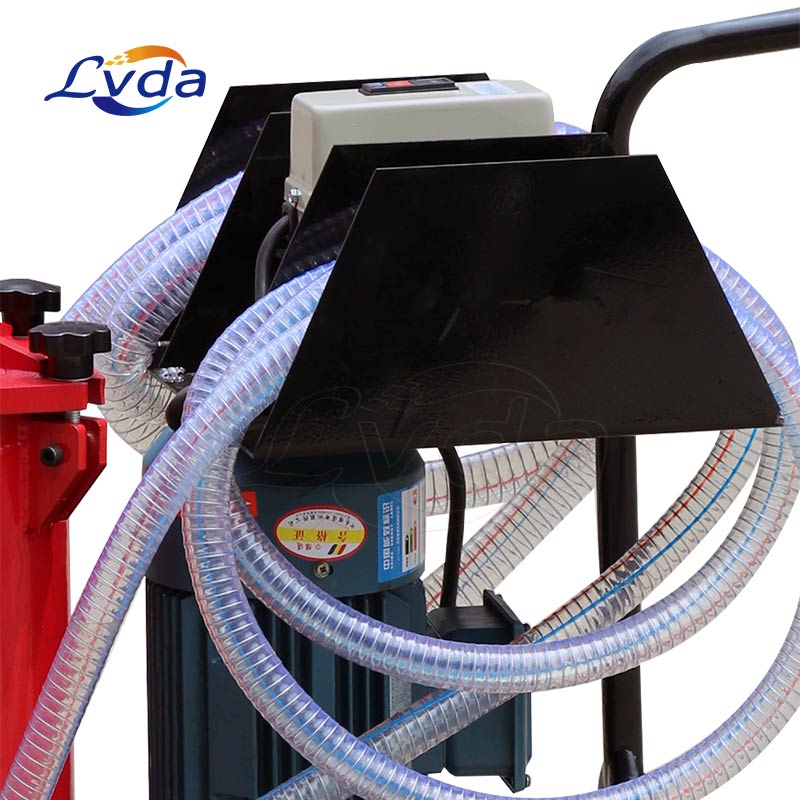

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

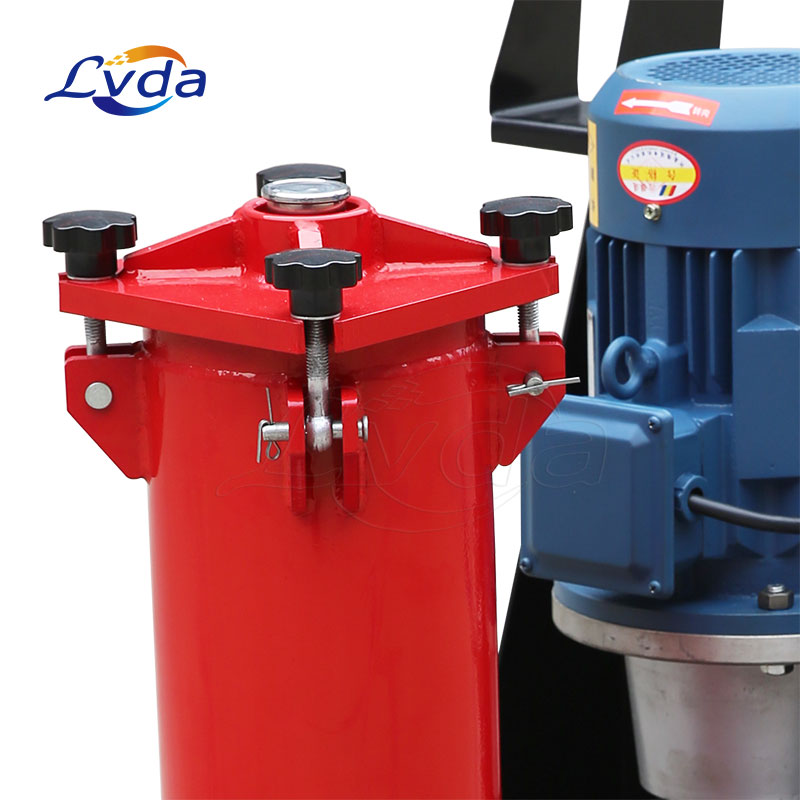

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
1. Precise filtration system, multi-stage filters, step by step encryption, accommodate large amount of pollutants,effectively remove the mechanical impurities from oil , high filtration precision.
2. Reliable filter, resistant to acid,alkali,high temperature; good mechanical strength; long service life.
3. Small size, light weight; low cost; wide application; no pollution; easy and flexible operation.
Optional design
Stages of cartridge filter (standard design is three stages, four,five,six and more stages availabe), customizable
Body material of machine (mild steel or stainless steel)
Filter element (mild mesh or stainless steel mesh)
Applications
Our insulation oil moveable filtering and purification machine is applied for oil filtering and oil filling for various kinds of oils such as insulation oil, lubricant oil, fuel oil, vegetable oil etc.
