High-precision mobile hydraulic oil filter cart
High-precision mobile hydraulic oil filter cart, also known as mobile hydraulic oil filter cart, refueling trolley or single-cylinder oil filter cart, the equipment can be used as oil filling system for hydraulic system, static pressure system, lubrication system and various oil-using equipment. Injection or regular filtration saves oil costs. And it has the advantages of reliable performance, easy maintenance and use, high precision and low noise. The filtering effect of different precisions can be achieved only by replacing the filter elements with different filtering precisions. The oil filter truck only filters out the impurities in the oil, which has no effect on the technical indicators of the oil. The material is cast iron, pure copper motor. It can also be customized according to customer needs.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.

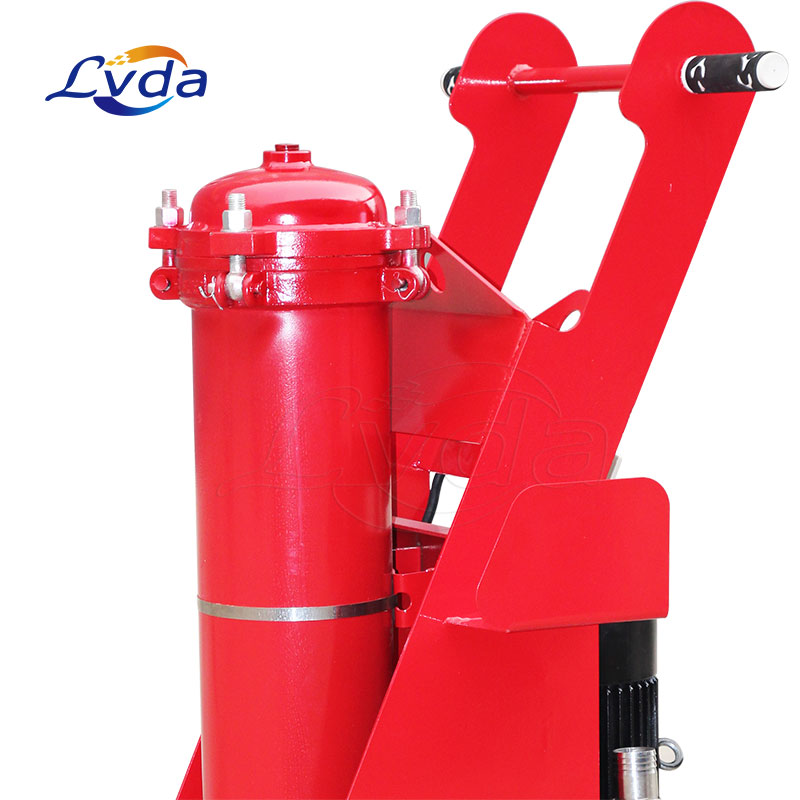

The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Movable, high filtration precision, easy to operate
Small size and portable, low-noisy.
No need of filter paper, no contamination to ground and at very economical price.
It can transfer oil from long distance and high lift.
Can be installed with well-sealed anti-explosion electric control cabinet.(optional)
Applications
Our products are widely used in machinery manufacturing, oil production, construction hydraulics, power equipment, lifting and transportation machinery, machine tool lubrication, injection molding, metallurgy, chemical equipment, and agricultural machinery. Diesel oil, hydraulic oil and other industrial oils are purified and filtered.
