Product Details

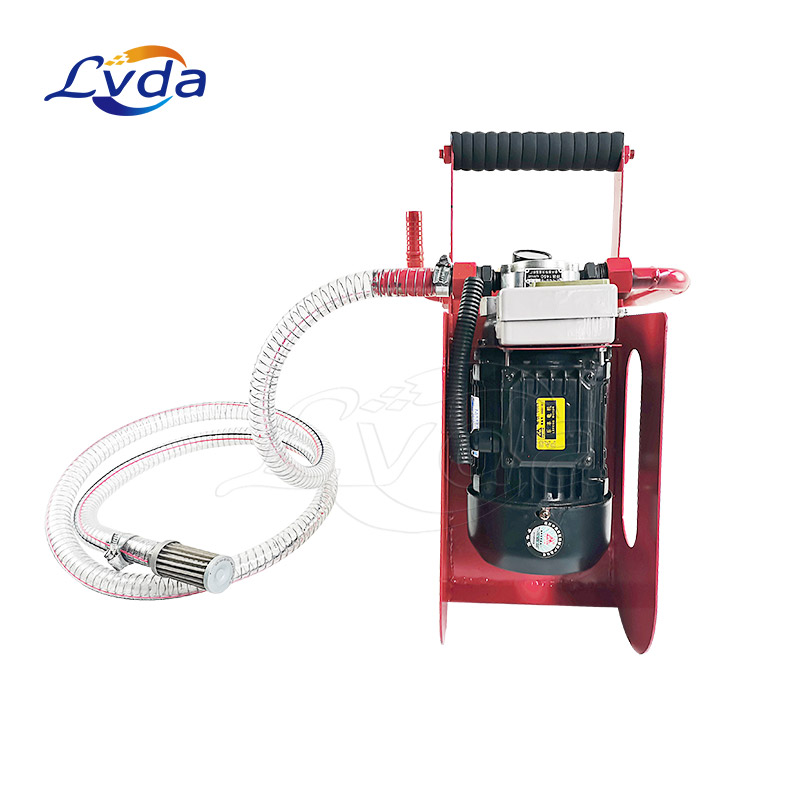

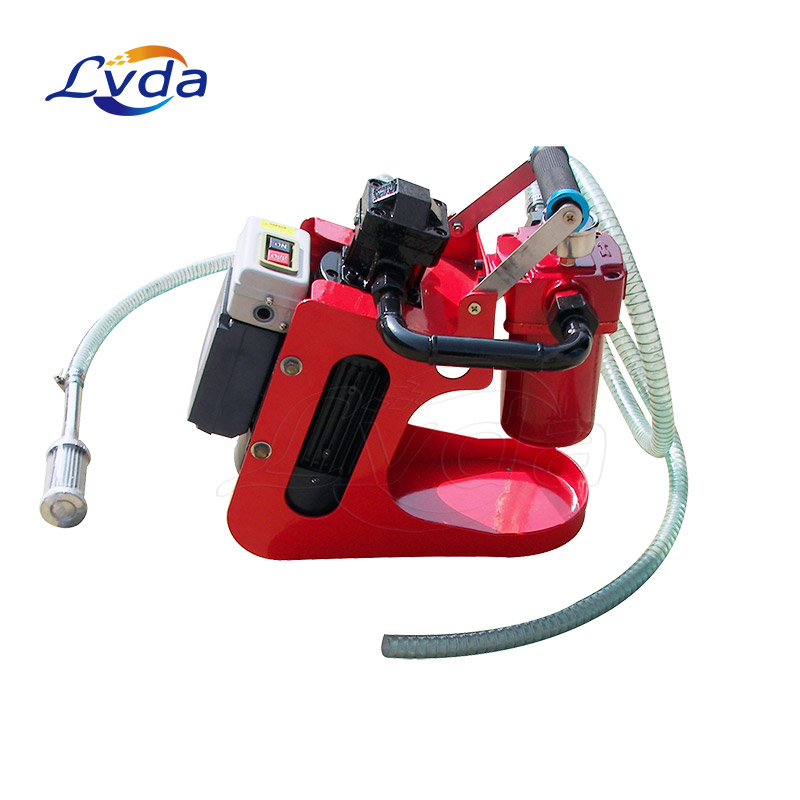

Mini scale portable oil filter systems
Our oil filter systems are designed to provide a portable mode of off-line kidney loop filtration, flushing and fluid transfer. Our oil filter carts and kidney loop filtration systems are rugged industrial systems for use where cleanliness of oil is critical. These oil filtration systems employs Absolute rated micro-glass filter elements and Adsorptive Ion Exchange Resin Media Filters for varnish removal.
Particulate Filters are available in a variety of micron retention ratings to meet any target Cleanliness Code requirements and for any industrial system.
Common applications include lube oil and hydraulic fluid reservoirs, gear box filtration, phosphate ester EHC systems, Skydrol filtration, governor speed control hydraulic systems and mobile equipment hydraulics. These oil filtration systems are an essential part of plant reliability and the reduction of unplanned downtime. They greatly extend the life of any rotating, reciprocating or hydraulic equipment.
These systems are available in a variety of flow rates ranging from 2 GPM to more than 500 GPM and standard features include motors, positive displacement gear or screw pumps with integral pressure relief, top loading filter assemblies, color coded differential pressure gauges to monitor filter life, electrical enclosures and a two-part epoxy paint coating.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
Laser particle counter with moisture content. This device displays and transmits real time ISO Cleanliness Codes and moisture content information. This instrument can be used to start, stop or transfer flow between two or more reservoirs
Varnish removal with adsorptive cellulose or Ion Exchange Resin Technology to remove sub-micron contaminants and soluble varnish from oil and varnish coated components in any system
Water absorbent filter elements
Explosion proof Class 1 Div 1 (NEMA 7) or Class 1 Div 2 rated systems
Low watt density oil heaters
Phosphate Ester or Skydrol compatible materials of construction
Variable flow rate pump controls
Hose reels
Custom footprint and component layout
Systems We Offer
Small Portable Systems
Light Weight Aluminum Portable Systems
High Flow Portable Systems
Small Stationary Kidney Loop Filtration and Varnish Removal Systems
High Capacity Stationary Systems
Portable Systems
Single phase or three phase electrical connections for any electrical service available throughout the world.
Applications
To remove harmful particulates, water and varnish
Filtering new and used oil
Transferring filtered oil
Cleaning & transferring lubricants
Draining used oil
Contamination control
