Product Details

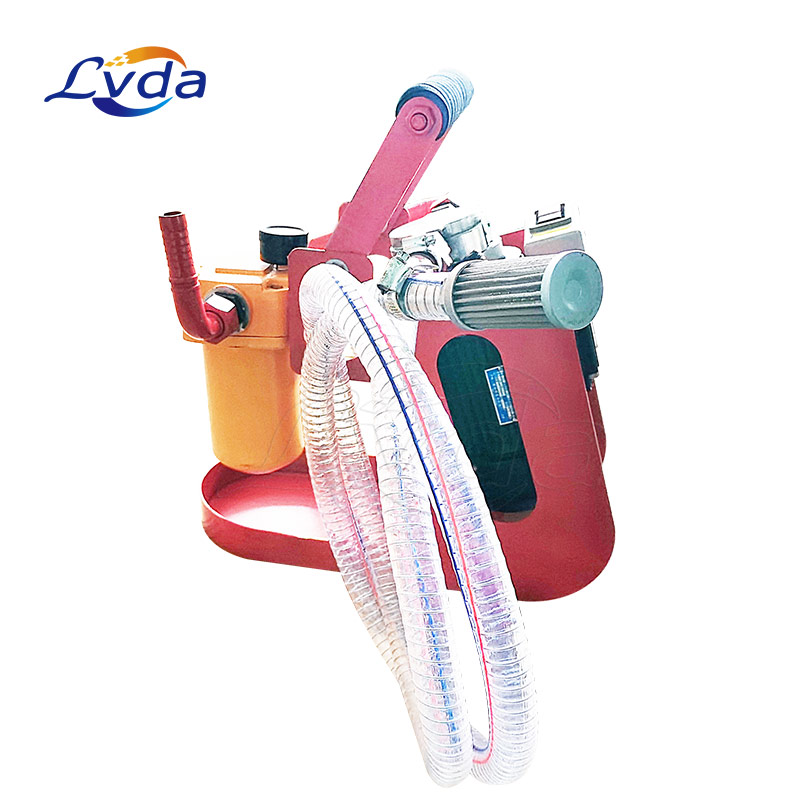

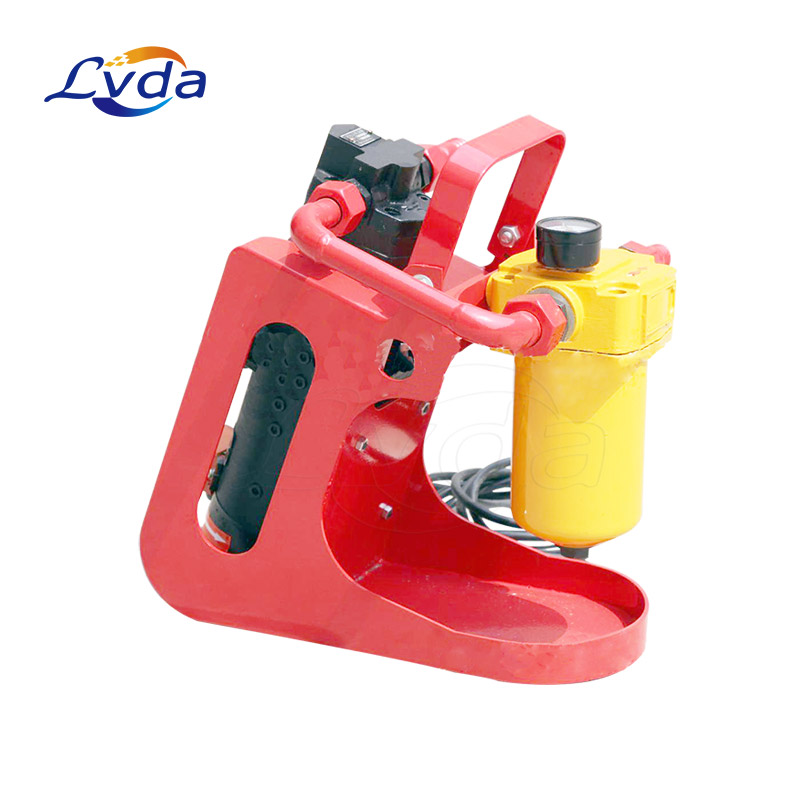

Hand held industrial oil filtration system unit
The hand held industrial oil filtration system unit from our company is lightweight and compact, ideal for use in applications with tight space constraints or when the filtration system needs to be carried upstairs.
Plus, the base of this system is specially designed for a stable fit on top of a 55-gallon drum, so it can be used very effectively as a “Drum-Topper” for recirculation and/or dispensing new oil. And its process flow rates ranging from 0.5 GPM to 5 GPM.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
Light weight and portable with durable welded steel frame
Special base with legs for use as a “drum topper” with 55-gallon drums
Optimal filtration performance using high efficiency pleated microglass spin-on filter elements rated beta>2000 per iso 16889
pump protection using a y-strainer
Visual differential pressure indicators for necessary filter element change out
Positive displacement gear pump
Over pressure protection with adjustable relief valve
Totally enclosed fan cooled (tefc) electric motor
Reverse flow prevented by check valve on discharge
Available in 1 gpm – 3 gpm flow rates
120v/70hz
Confined space locations where a conventional filter cart cannot be used
Kidney-loop filtration of small reservoirs
Wide range of oil viscosities (iso vg 32 – iso vg 680)
Spin-on filter elements
Fast and simple filter element change-out with minimal
spillage and without special tools
Unmatched filter efficiency for optimal single pass filtration performance
Electrostatic reduction technology on 4-micron filter elements
to prevent damage from electrostatic discharge
Viton seals provide dependable sealing and maximum fluid compatibility
Applications
Filtering hydraulic systems
Filtering steam turbine lube systems
Almost any tiny industrial equipment containing oil
