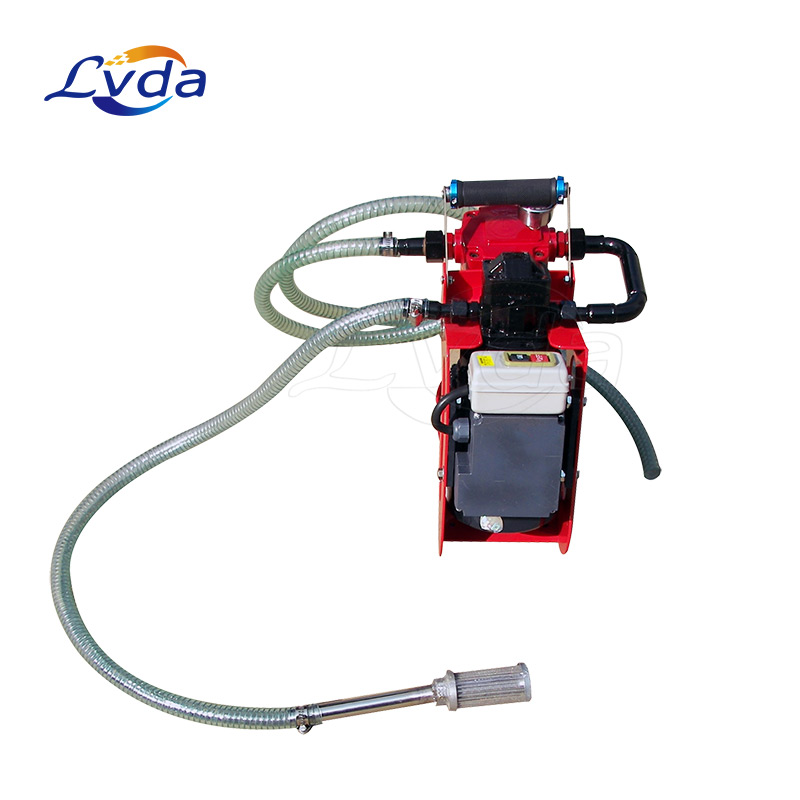

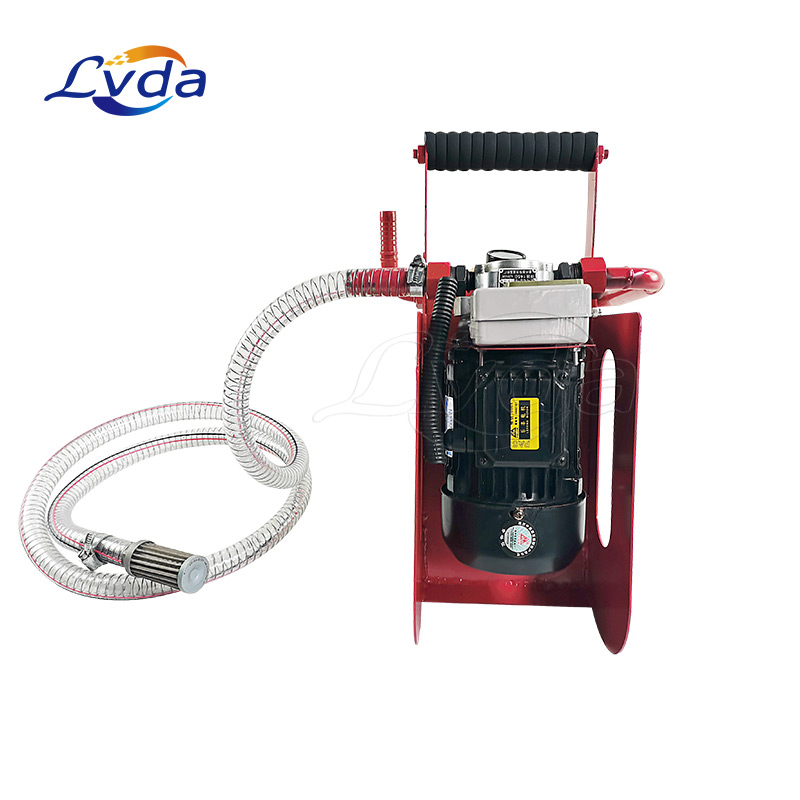

Portable compact oil purifying equipment
Our Portable compact oil purifying equipment is compact and convenience and just light enough to carry around the shop (appx 50 lbs). Filter mineral and synthetic based oils, including hydraulic oils, gear oil and turbine oils, with viscosities up to 600 cSt at 100°F within ambient temperatures ranging from -15°F to 150°F. Our portable compact oil purifying equipment is ideal for applications with minimal space, for filtering contaminated systems, flushing new or repaired systems, pre-filtering new oil, transferring oils, topping off reservoirs and dispensing new oils.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
*Using special technology to produce. Dewatering and degassing is very effective.
*It can purify the lost-oil and make the insulating oil efficiently reach the new oil standard without blackout, changing oil or using paper filtering.
*It has the function of filling oil under vacuum condition.
*Solve the problem of removing acetylene.
*The route has a large, strong ability to hold dirt and can be used for a long time.
*This machine is small, light and convenient.
*Ultrasonic cleaning function can be selected.
*It has multi-functions of centrifugal separation, molecular filter, condension de-watering and vacuum drying.
*It has the function of automatic combustion protection and foam elimination.
*Stable operation and low special noise.
Applications
Our portable oil purifier mainly deals with unqualified insulating oil, turbine oil, lubricating oil etc, this machine can carry out precision filtering, usually completes three-stage filter, also can equip four or five-stage filter according to user requirements. Light weight, easy operation, can be used as oiling machine for long distance and high-lift oiling works.
