Product Details

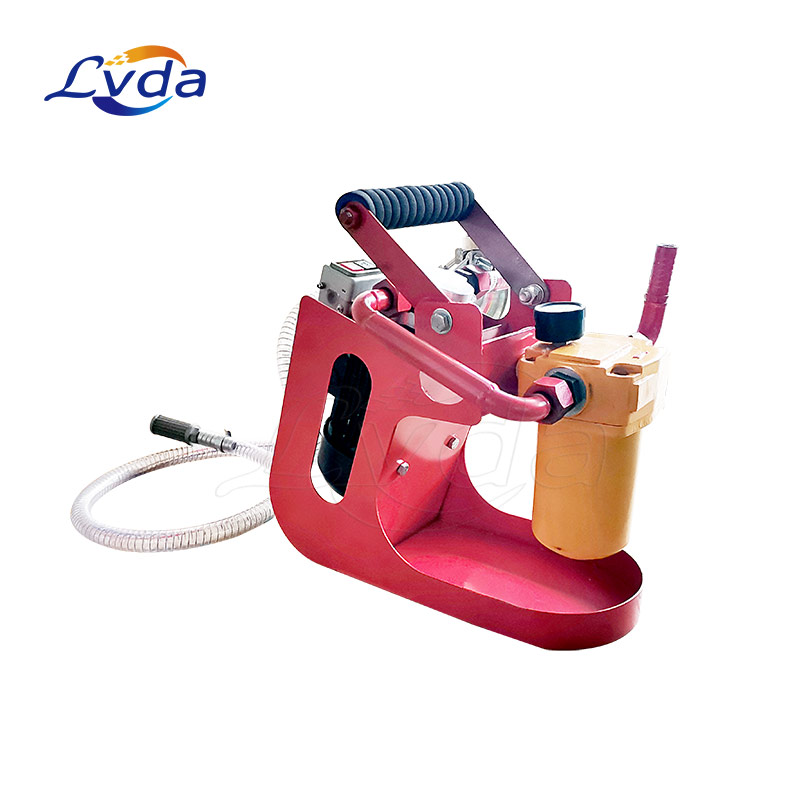

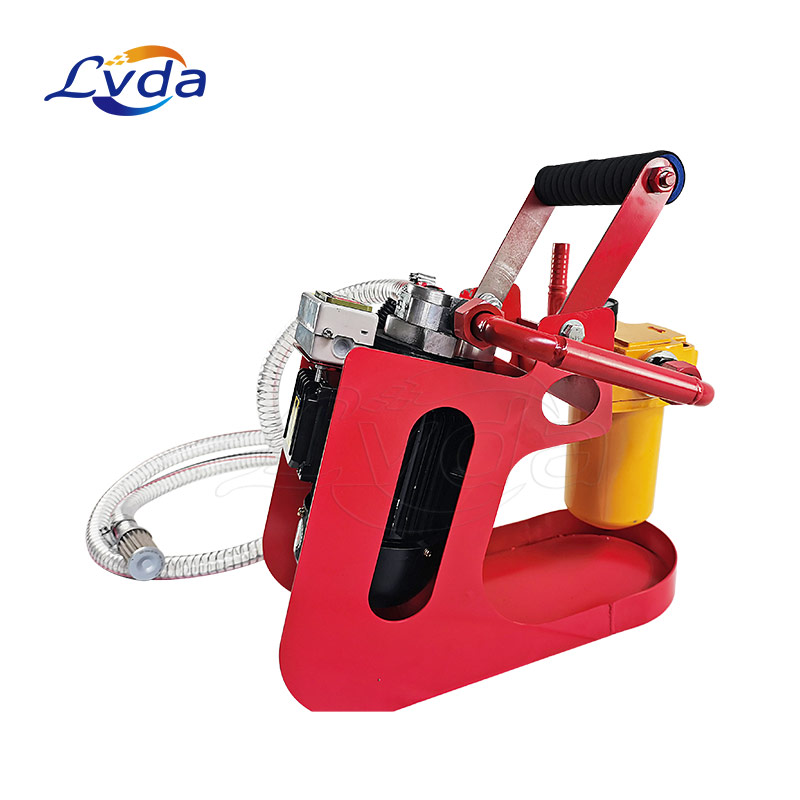

Portable hydraulic oil purifier machine
The Portable hydraulic oil purifier machine includes a special gear pump driven by motor, with the advantages of low noise, strong self suction capability, stable operation, etc.
High pressure pipeline is equipped with overflow protection device, which can effectively protect the safety of hydraulic system.
Thermal relay protection is used to prevent motor damage due to motor overload.
The oil suction port strainer protects the pump and prolongs the service life of the main filter.
The precision filter can be selected different precision according to different needs of users, to meet the requirements.
The shell of oil purifier adopts a quick opening structure, without any tools the upper cover can be quickly and rapidly opened, and change the filter element.
A pressure gauge is arranged on the panel, indicated the System operation status and the pollution degree of filter core while working.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
Dual filtration with our exclusive high efficiency media.
two pressure filters mounted in series for particulate/water or coarse/fine particle removal.
Overload protected switch prevents motor from overheating
sample ports enables system cleanliness measurements.
Two filters are better than one! creating 2.5 times the dirt holding capacity, longer element life, and element.
cost savings.
A wide variety of particulate elements available, which provides the capability of achieving desired cleanliness level of fluid, and extending the fluid life and system performance.
Our water removal elements available, able to remove "free water" and dirt from a system with one process, saving time.
The heavy duty frame is rugged, durable, and built to last, preventing unnecessary maintenance and system downtime.
Lightweight and portable, which is easy to move to a site, and only needs one person to operate two flow rate models are offered, enabling use in low or high viscosity applications.
Hose and wand assemblies are included, making additional hardware unnecessary and completely ready to use.
Applications
Our portable hydraulic oil purifier machine is widely used for petroleum, chemical, mining, metallurgy, electricity, transportation, machinery manufacturing, railway and other industries oil with significant economic benefits.
