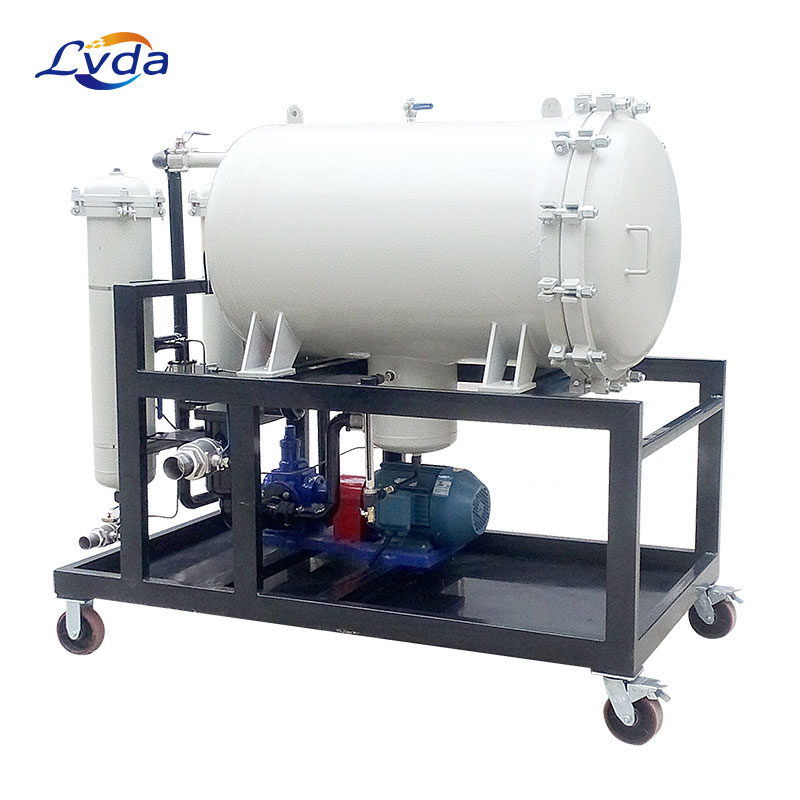

Peanut oil coalescence separation oil purifier
Our peanut oil coalescence separation oil purifier absorbs the high-quality technology of similar products at home and abroad for innovative design, and has excellent cost performance. It is at a high level in terms of oil treatment technology and equipment performance. It has the advantages of high working vacuum, fast oil filtration, and oil quality protection. It is mainly used for industrial oil purification.
The peanut oil coalescence separation oil purifier integrates vacuum flash drying technology, coalescence separation technology and "gradually denser" filtration technology. This series of two-stage vacuum system can more efficiently remove moisture, impurities, hydrocarbons and other harmful gases in the oil, improve the flash point and pressure strength of the oil, and use it in parallel with the waste oil regeneration device to accelerate the removal of acid, decolorization, reduce Dielectric loss, acid value, thereby further improving the performance of the oil. In addition, it can also be configured as a three-stage high vacuum oil filter for users to obtain a higher working vacuum and meet your higher oil treatment requirements.
The main material is high carbon steel, and 304 stainless steel can be customized.
The working principle is vacuum dehydration and degassing, coalescence and demulsification, and multi-stage filtration to remove impurities.
Product parameters
| Model |
A0P-D25 |
AOP-D50 |
A0P-D100 |
AOP-D150 |
A0P-D200 |
AOP-D400 |
| Rated flow(L/min) |
25 |
50 |
100 |
150 |
200 |
400
|
| Rated pressure(MPa) |
0.6 |
| Initial pressure loss (Mpa) |
≤0.1 |
| Filtered water content |
≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) |
10、20 |
Grade 2 filter rating( μ m) |
3、5 |
| Pressure differentials |
0.2Mpa |
| Working temperature(°C) |
25- 80 |
| Recommended viscosity(cSt) |
10-120 |
| Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.75 |
1.1 |
2.2 |
4 |
5.5 |
13
|
| Weight(kg) |
150 |
200 |
300 |
520 |
860 |
2860
|
| Dimensions(mm) |
1200x 800x1250 |
1350 x800x1400 |
1740x 980x1450 |
1800x1000x1540 |
1840x1050x1780 |
3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features

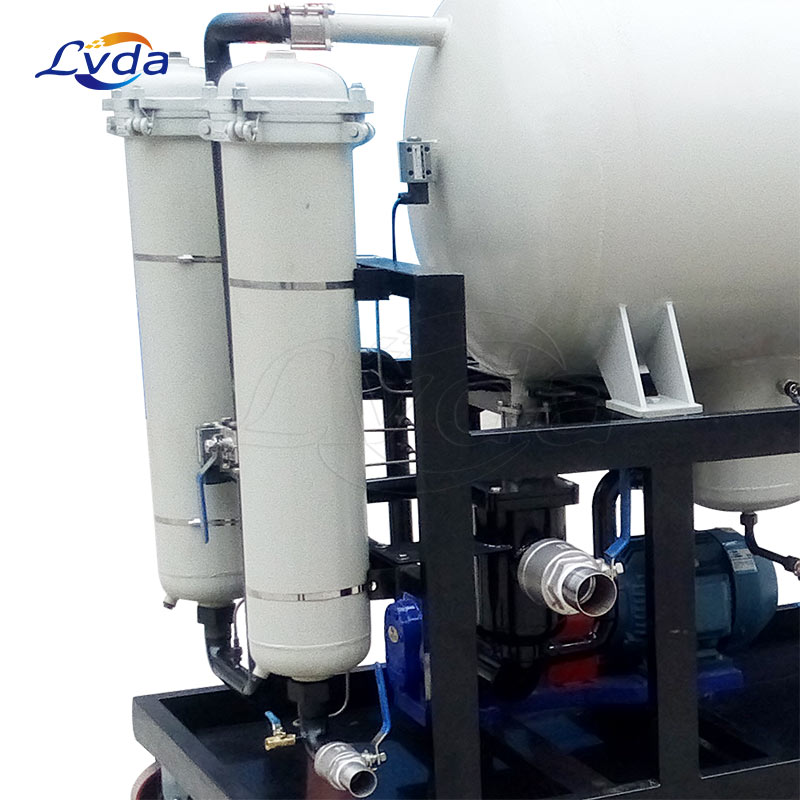

1. The machine adopts a multi-stage cartridge filter, which has a strong ability to filter out impurities. Large-flow washable filter element is used for coarse filter, which has high filtration efficiency and can remove a large amount of impurities in oil; precision filter element adopts "gradually denser" technology, which has high filtration accuracy, large scale holding capacity, high strength and long life. Remove the fine particles in the oil; the whole machine is designed with automatic backwashing function, which not only improves the continuous working time of the equipment, but also ensures the service life of the filter element.
2. The water separation device adopts high-quality coalescence separation technology and a unique stainless steel folding cyclone degassing and dehydration separation tower to remove water quickly and efficiently; the self-developed jet degassing device can effectively remove trace gases mixed in oil. The condensate water automatic separation system is equipped with a strong air cooler, which can quickly condense and separate a large amount of water vapor and other gases discharged from the vacuum, so as to achieve the high-quality effect of one-time separation.
3. High-quality filter elements and connection sealing materials with corrosion resistance, high temperature resistance and high mechanical strength are used to meet the high temperature requirement for filtering high-viscosity lubricating oil; the imported water ring vacuum pump is used, and the cooling liquid (or water) is used as the The lubricating medium is not afraid of gas entering the vacuum pump, avoiding the trouble of frequent oil change of the rotary vane vacuum pump with oil as the medium.
4. The new heating device is adopted, the heating load is low, and the oil quality is prevented from aging.
5. The fuel injection prevention device adopts the photoelectric liquid level control method, which is sensitive and accurate in control, and can even sense the foam, and there is absolutely no fuel injection phenomenon.
Product applications
Peanut oil, lubricating oil, hydraulic oil, mineral oil series, hydraulic transmission oil, gear oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, heat transfer oil, coking oil,diesel, etc.
