Product Details

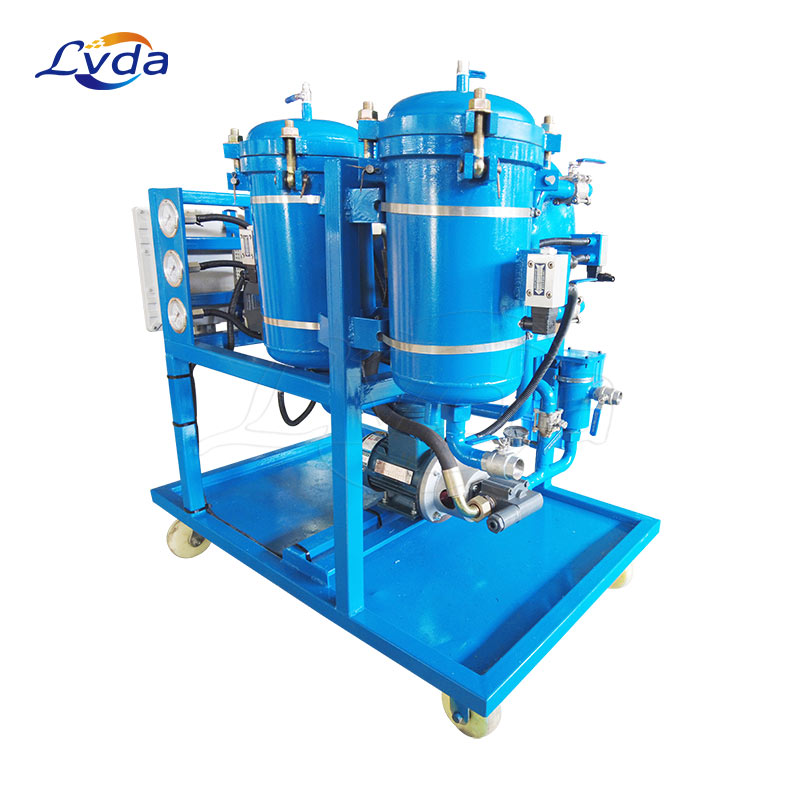

Mineral oil series coalescing and separating purifier
Our Mineral oil series coalescing and separating purifier employs advanced coalescing and separating materials as the filtering medium, which integrates emulsification and precision filtration. Combined with a special oil-water separation device, it can effectively separate the water in the oil, the dehydration efficiency is extremely high. It can perform on-line demulsification, dehydration, and impurity-removal of turbine oil for the operating steam turbine unit, and can also dehydrate and remove impurities of light oil with high water content. This machine does not need to heat and evacuate during operation, it is low energy consumption and low operating cost. The trolley structure is adopted, which is light and flexible and easy to use.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
- It integrates two functions of precision filtration and efficient dehydration.
- The water separation device adopts high-quality coalescence separation technology, and a special demulsifying device (water separation) is installed, which can not only quickly and efficiently separate a large amount of water in the oil, but also facilitate the removal of trace water; the self-developed jet degassing device can effectively remove water. Trace gas mixed in oil; condensate water automatic separation system is equipped with strong air cooler, which can quickly condense and separate a large amount of water vapor and other gases discharged from vacuum to achieve the effect of one-time separation.
- Pure physical purification, does not change the physical and chemical properties of the oil, and prolongs the service life of the oil.
- It can drain water automatically, truly unattended.
- This machine adopts a multi-stage cartridge filter, which has strong ability to filter out impurities. The high-flow washable filter element is used for the coarse filter, which has high filtration efficiency and can remove a large amount of impurities in the oil; Removes fine particles from oil.
- Continuous large flow treatment, strong purification capacity and high dehydration efficiency.
- No heating, no vacuum negative pressure required, low power and low running cost.
- High-quality filter elements and connection sealing materials with corrosion resistance, high temperature resistance and high mechanical strength are used; water ring vacuum pump imported from Germany is selected, and cooling liquid (or water) is used as the lubricating medium, so that gas is not afraid of entering the vacuum pump, and oil is used as the medium. The rotary vane vacuum pump has the trouble of frequent oil changes.
- Adopt new heating device, low heating load, avoid oil aging.
- The anti-spray device adopts the photoelectric liquid level control method, which is sensitive and accurate in control, and can even sense the foam, and there is absolutely no fuel injection phenomenon.
Product applications
Can be used to purify hydraulic oil, gear oil, hydraulic transmission oil, compressor oil, refrigeration oil, heat treatment oil, heat transfer oil, coking oil, diesel, lubricating oil, mineral oil series, etc.
