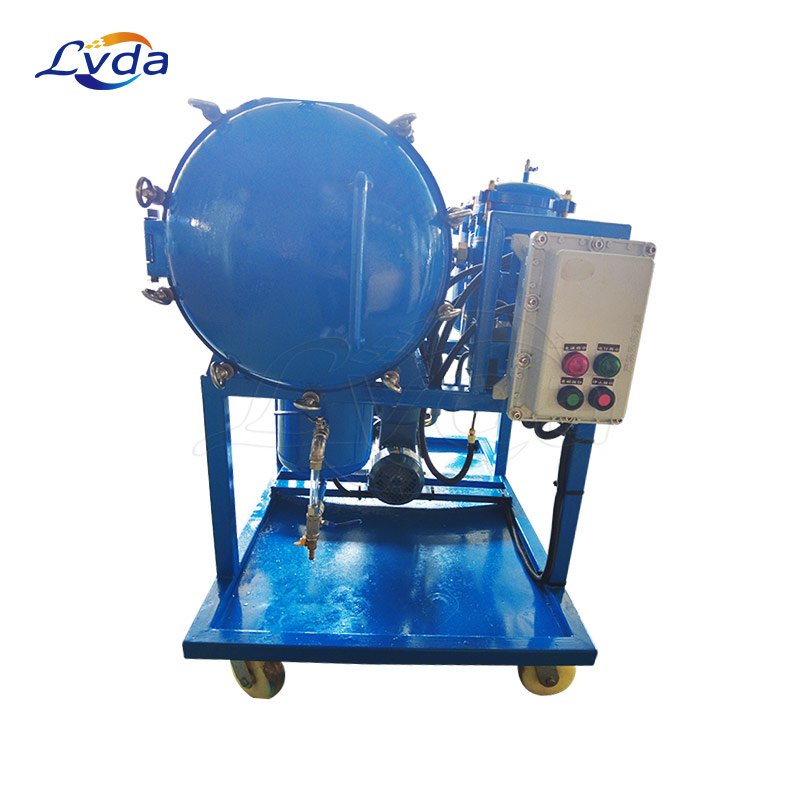

Phosphate ester anti-fuel coalescing oil purifier
Our phosphate ester anti-fuel coalescing oil purifier is specially developed due to the characteristics of EH oil. Under the suction of the entrance pump, the oil to be purified enters the coarse filtration system. After processing, the large particles of impurities are removed, and then sent to the fine filtration system to remove the fine impurities, and then enter the vacuum. The chamber is dehydrated and degassed. The purified oil is pumped out through the outlet, and can also be sent back to the fine filter system for recycling to achieve higher precision.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
- Small size, light weight, easy to move.
- Good adaptability of material and phosphate, no leakage or corrosion.
- Efficiency of 99.9% - 7 microns or larger.
- PLC control system (optional).
- Skid mounted, trailer mounted or standalone.
- Ladder and platform per OSHA requirements (optional).
- Simplex or duplex arrangement.
- Quick availability based on pre-engineered design or custom engineered per equipment specifications.
- Pressure vessel with relief valves.
- Complete process and mechanical guarantees.
- Blind flange or quick opening enclosure for easy access of filter elements.
- Manual or automatic liquid drains.
- Level indication – local and remote.
- Automatic control, low temperature online operation, pure physical purification, no secondary pollution.
- Not only can effectively and quickly remove free water and gas in oil, but also deeply remove free water and 99% dissolved water and gas in oil.
- Select new all-stainless steel materials and special filter materials, and gradually encrypt the filter element, which can remove a large amount of impurities in the oil and realize precise filtration.
- The machine is constructed of acid-resistant and anti-dissolution 304 stainless steel. The filter element and seal are made of materials that are incompatible with fire-resistant oil. It is beautiful, lightweight, easy to operate, low noise and long service life.
- The equipment is equipped with automatic infrared liquid level control system and automatic pressure protection system to ensure the high-performance, safe and reliable operation of the equipment.
- Online oil filter, unattended, the running status of the equipment indicator light.
Product applications
It is specially used for purification and regeneration of fire-resistant hydraulic oil and EH phosphate ester fire-resistant oil of the speed control system of large and medium-sized thermal power generating units.
