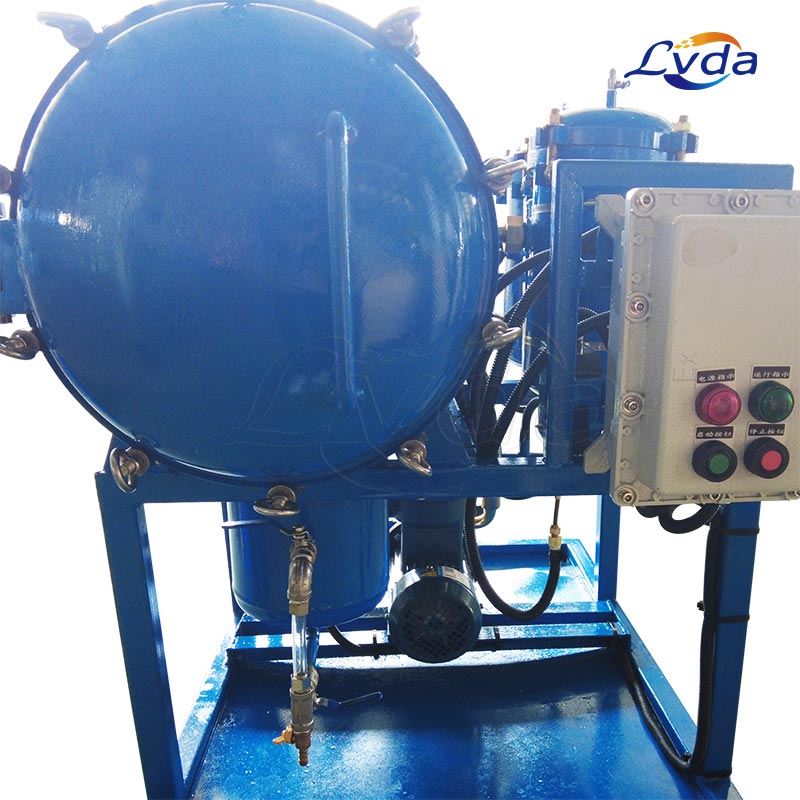

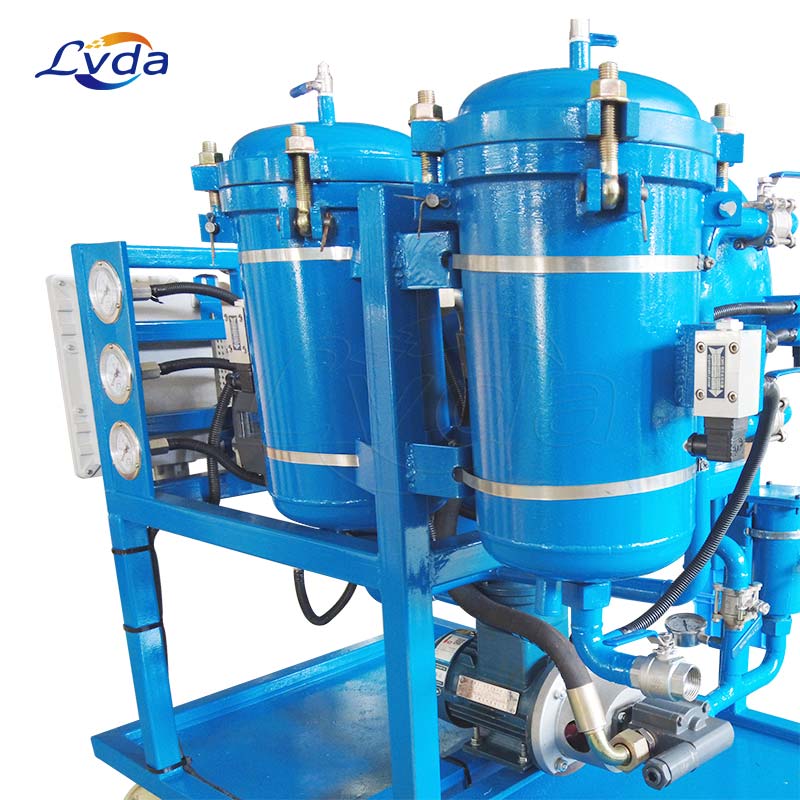

Gear oil coalescing separation purifier unit for industry
Our company has developed a new Gear oil coalescing separation purifier unit for industry, which integrates vacuum drying, separation engineering technology, coagulation technology, adsorption technology and precision filtration technology. It can quickly and reliably remove moisture, gas, impurities, gum, sludge and various pigments in gear oil under high vacuum. And reduce the dielectric loss and acid value, improve the degree of demulsification, improve the quality of gear oil in an all-round way, can realize online operation, and can automatically drain without stopping, so that the waste gear oil can reach the use standard of new gear oil, and the operation is simple.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
* Excellent water removal capacity
* Effective auxiliary equipment for bypass filtration
* Water Removal:100% free water and 90% dissolved water.
* Gas Removal : 100% free gas, related to operating vacuum setting.
* Pollutants Removal: sediment and contaminative particles
* Online oil filtering, unmanned operation can be performed, and the operating status of the equipment can be directly reflected on the PLC panel.
* Humanized design, low noise, easy operation, long maintenance interval, low energy consumption, saving operating costs.
* Optional vacuum dehydration or coalescing separation system dehydration.
* It has the functions of pressure overload protection, automatic foam elimination and automatic oil level control.
* High-performance heater is used to reduce the damage of temperature to oil quality.
Product applications
Mechanical processing, metallurgical industry, petrochemical industry, cement plant, electric power industry, iron and steel industry, paper industry, textile industry, purification of gear oil, turbine oil and transformer oil; water removal and impurity removal of oil in hydraulic lubrication system; comprehensive access to hydraulic lubrication system Improve system cleanliness.
