Product Details
Guide rail oil coalescing dewatering purifier
Our company has a new generation of intelligent coalescing dewatering oil purifier specially developed for guide rail oil.
The purpose of our coalescing vacuum oil filtration treatment is to remove particles, moisture, gases and other contaminants in the guide rail oil and to reduce the acid value. Make the oil clear and transparent, restore the performance, and prolong the service life of the guide rail oil as much as possible.

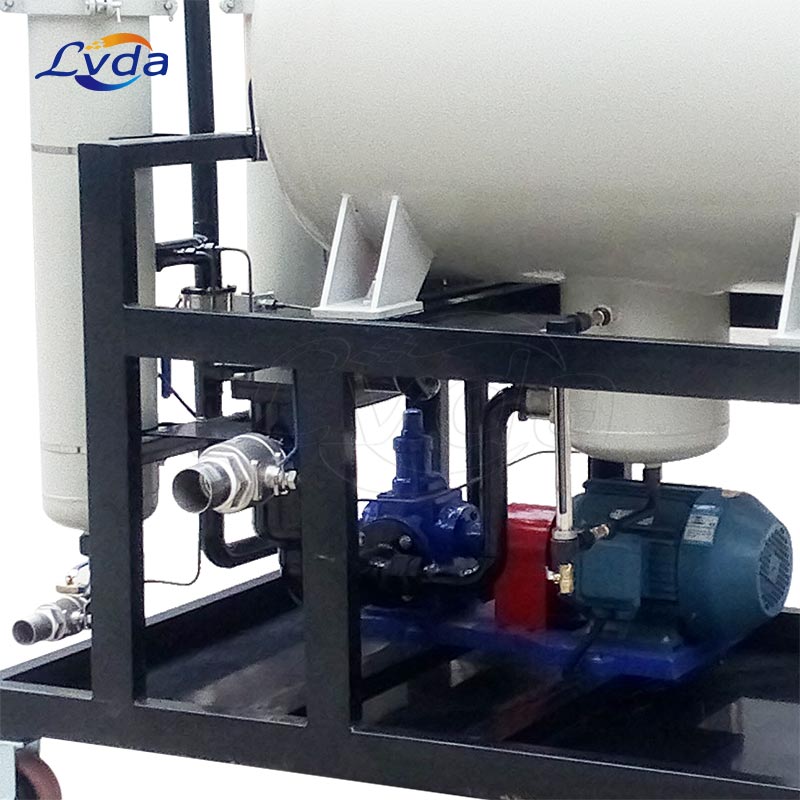

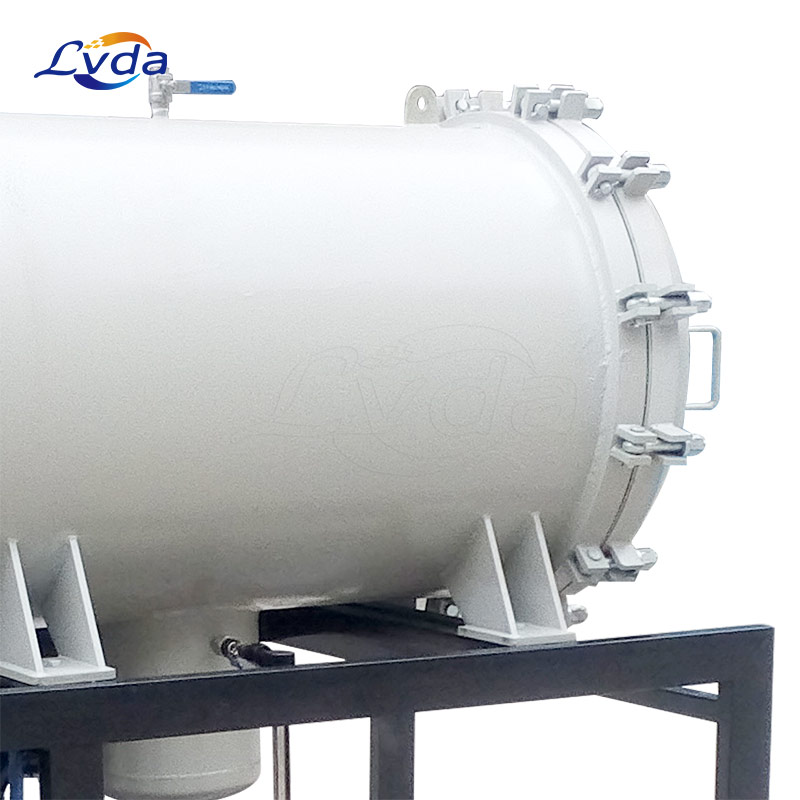

The guide rail oil coalescing dewatering purifier is a skid-mounted independent oil purification and filtration system, which can be connected to the user's oil system for online circulation filtration, or can be moved to the oil processing station for offline oil filtration.
The guide rail oil coalescing dewatering purifier not only has the reliable function of filtering and dewatering oil, but also can conveniently switch the valve for oil pumping, oil filling and oil replenishment functions to meet the requirements of on-site use.
Most of the guide rail oils currently used in industry are processed by adding various petrochemical additives to the base oil through a special blending and refining process. Therefore, the process of the user putting the oil into operation is the process of consuming and wearing the additives in the oil. In this process, if the pollution of the oil is heavier and the working environment is worse, the consumption of the oil will be faster.
Application experience shows that: generally, if the user finds that the guide rail oil is contaminated, or finds that the cleanliness exceeds the standard, the guide rail oil in normal use should be purified and filtered immediately. You can save 2 times the cost of guide rail oil for users. Its production benefits cannot be estimated.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
●Specialized design of the whole machine, beautiful appearance, low power and low operating cost;
●Integrate two functions of precision filtration and high-efficiency dehydration;
●Continuous treatment in large flow, strong purification ability and high dehydration efficiency;
●Pure physical purification, does not change the physical and chemical properties of the oil, and prolongs the service life of the oil;
●Automatic drainage, truly unattended;
●Multi-layer filtering is adopted for impurities. The coarse filter element, protective filter element and fine filter element are all made from China, and the particle size control effect is remarkable.
Producer applications
Guide rail oil, turbine oil, turbine oil, lubricating oil, hydraulic oil, mechanical oil and other thin oils.
Widely used in electric power, machinery, metallurgy, petrochemical, military, papermaking, home appliance manufacturing, hydraulic lubrication and other industrial industries. Purification and filtration of thin oil to meet high-precision oil requirements.
