Product Details
Quick dewatering unit for virgin coconut(vco) oil filtering machine
Quick dewatering unit for virgin coconut(vco) oil filtering machine is special for filtering coconut oil,used cooking oil,dirty vegetable oil , groundnut oil, olive oil,palm oil,biodiesel oil production pretreatment etc.

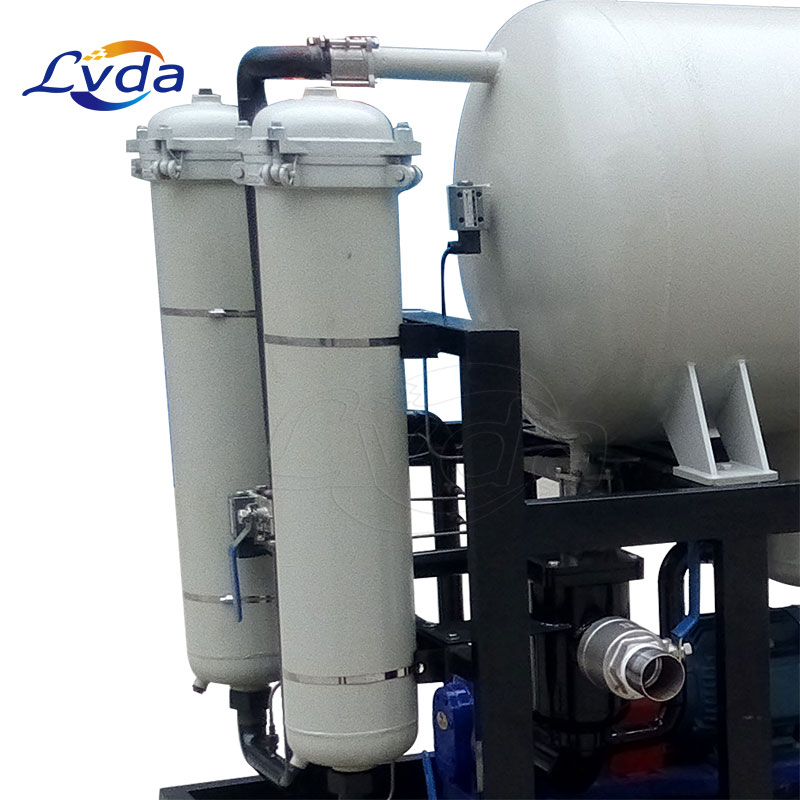

Our Quick dewatering unit for virgin coconut(vco) oil filtering machine concludes oil water coalescing filter and oil gas coalescing filter.when fluid pass through the fiber, small oil drops in fluid will be aggregate into large droplets and discharged by gravity.
It can remove particle ,separate moisture, gas, free fatty acids, volatile odoriferous material,odor, and wax, foam in the waste oil.
The treated oil is clean, limpidity, and good smell. It is a good purification machine for Fry food factory, oil restaurant, cooking oil factory, biodiesel factory,vegetable oil factory, and waste oil collecting store.
According to the treated oil usages, you can choose different machine body. For edible usage, we suggest you choose stainless steel body; For industrial use, we suggest you choose carbon steel body. If your oil contains too many impurities,we suggest you choose a press filter.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product Features:
⊙ Efficiently remove all oil-water emulsification structure in oil. Free moisture in escape oil, low moisture content after treatment.
⊙ Filter solid particles in oil, cleanliness NAS6-9. It integrates two functions of precision filtration and high-efficiency dehydration.
⊙ It has high filtration precision, large dirt holding capacity, long service life of filter element and high dehydration efficiency.
⊙ No need for receipt of vacuuming and high-speed centrifugation, low energy consumption and low operating costs.
⊙ It will not change the physical and chemical properties of the oil and prolong the service life of the oil.

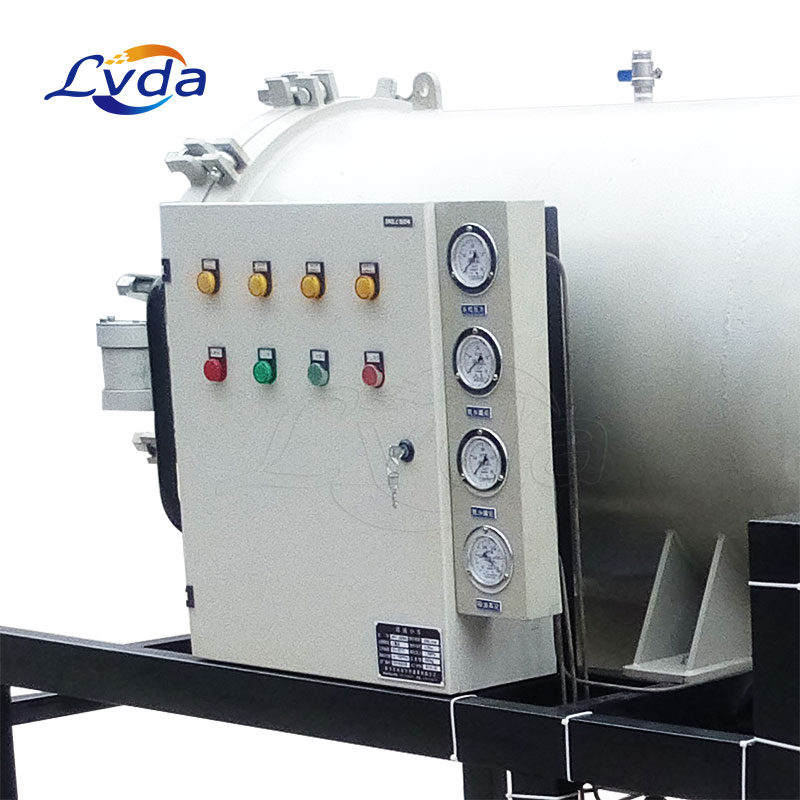

⊙ Filter element failure alarm, electrical overload protection, alarm remote transmission.
⊙ The equipment runs online, automatically controlled, unattended, and continuously processes large flow.
⊙ According to the working conditions, the explosion-proof grade (ExdIIBT4 or ExdIICT4) can be customized.
Product applications
Filtering rapeseed oil, sunflower seed oil, canola oil, vegetable oil, vegetable seed oil,coconut oil,used cooking oil,dirty vegetable oil , groundnut oil, olive oil,palm oil,biodiesel oil production pretreatment etc.
