Product Details

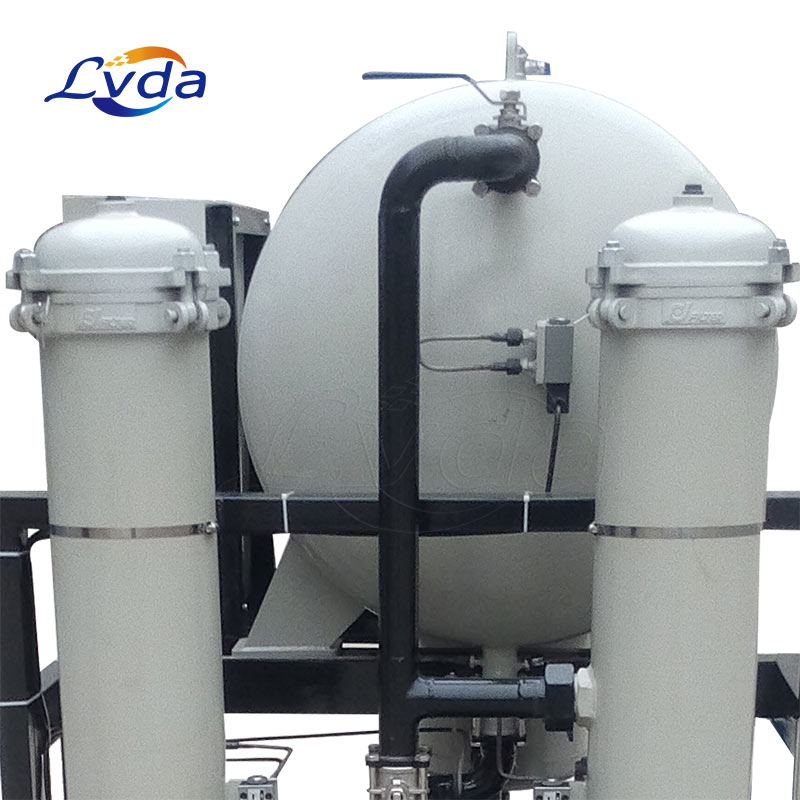

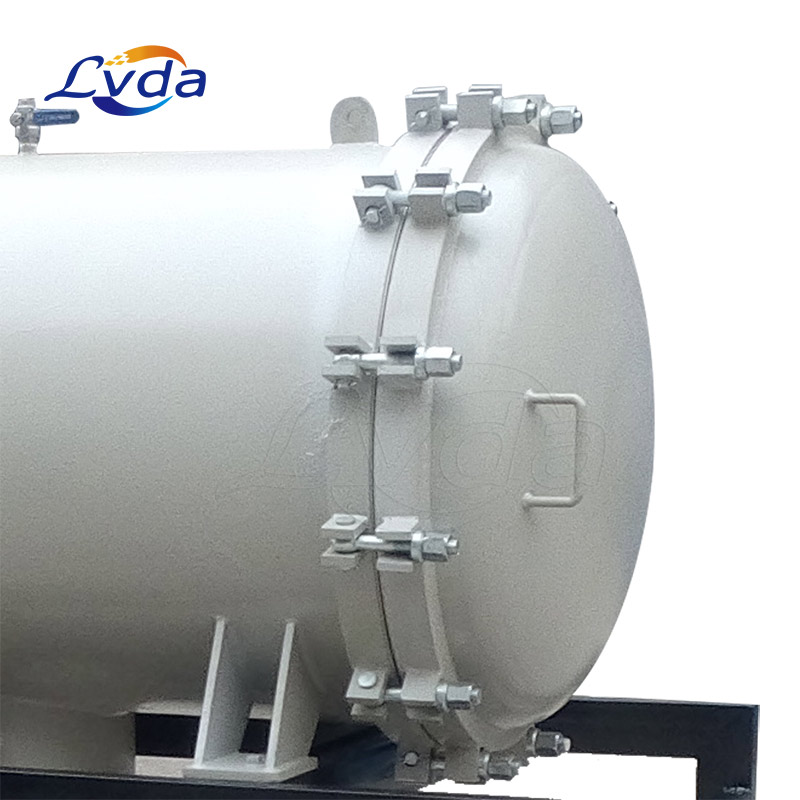

Virgin coconut(vco) oil coalescing filtering unit
The virgin coconut(vco) oil coalescing filtering unit is special for filtering coconut oil,used cooking oil,dirty vegetable oil , groundnut oil, olive oil,palm oil,biodiesel oil production pretreatment etc.
Our virgin coconut(vco) oil coalescing filtering unit concludes oil water coalescing filter and oil gas coalescing filter.when fluid pass through the fiber, small oil drops in fluid will be aggregate into large droplets and discharged by gravity.
It can remove particle ,separate moisture, gas, free fatty acids, volatile odoriferous material,odor, and wax, foam in the waste oil.
The treated oil is clean, limpidity, and good smell. It is a good purification machine for Fry food factory, oil restaurant, cooking oil factory, biodiesel factory,vegetable oil factory, and waste oil collecting store.
According to the treated oil usages, you can choose different machine body. For edible usage, we suggest you choose stainless steel body; For industrial use, we suggest you choose carbon steel body. If your oil contains too many impurities,we suggest you choose a press filter.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features:
> Optimized design to minimize space requirements
> Robust construction structure even in harsh environment
> High temperature resistance and high pressure resistance
> Good performance of oil-water and oil-gas filtration
> High quality stainless steel and carbon steel material
> Good protection of downstream equipment and components
> Strong ability to filter the impurity,strong capability of breaking emulsification. We adopt the high quality filter materials, which has a good function in anti-corrosive, thermos table, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
> The combination of coalescing separation and vacuum dewatering
> Advanced dielectric condensation device
> With H.P.M high polymeric absorbing material
> Using the 3D Stereo-Evaporation technology, which can separate the odor and gas from the oil quickly.
> This machine installs the new pressure protector, which can control the temperature automatically; also it can drain water on line by the water–separator device. So it is easy to control this machine.
Product applications
Filtering coconut oil,used cooking oil,dirty vegetable oil , groundnut oil, olive oil,palm oil,biodiesel oil production pretreatment etc.
