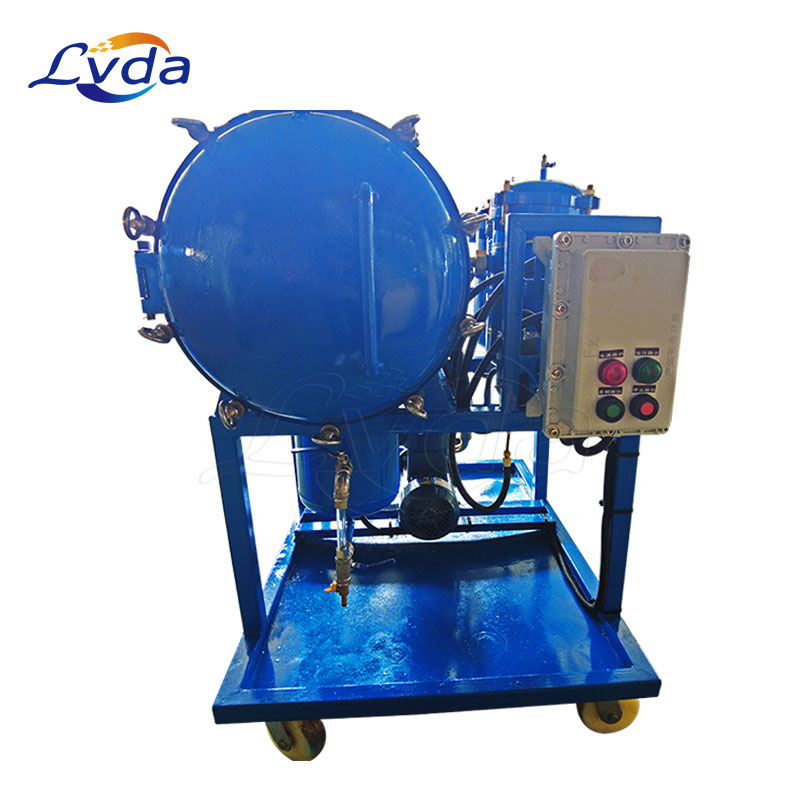

Light oil coalescing dehydration device

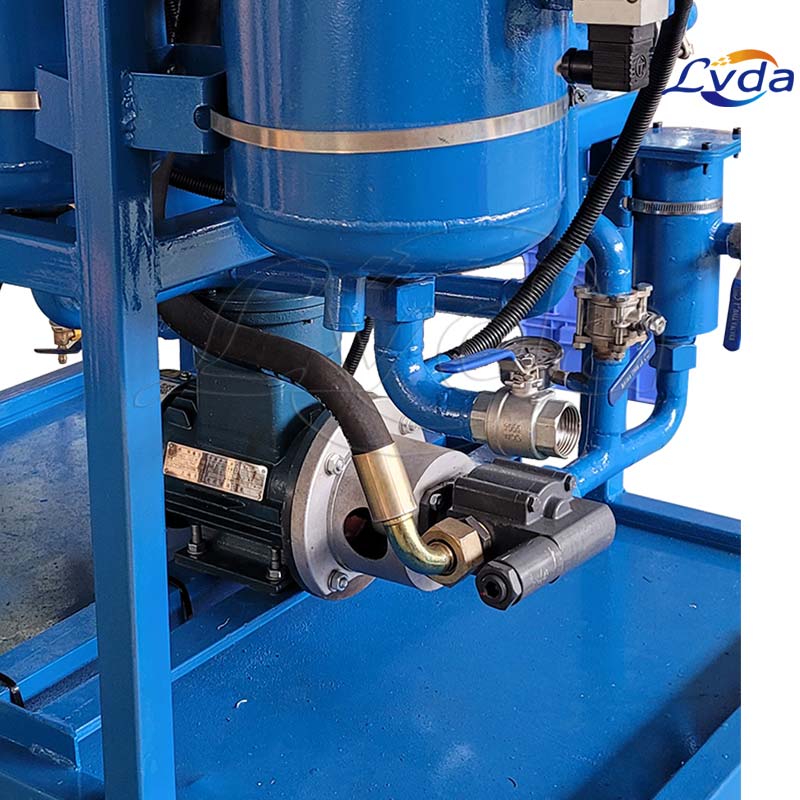

The unqualified oil first enters the primary filtration, and the large particles of impurities are retained. The oil that removes the large particles of impurities is transported to the fine filter by the oil pump. After the small impurities are removed in the fine filter, it continues to enter the coalescing separator. Its internal molecular separation technology principle performs pressure-variable analysis on the oil, eliminates the intermolecular binding force, dissolves water, free water in the oil, quickly breaks the oil film and separates the oil molecules and separates out; completes dehydration and removes impurities, so as to achieve the required Moisture and cleanliness requirements.
A special fuel filter specially designed for the volatile characteristics of fuel. It integrates precision filtration and high-efficiency dehydration, which can effectively remove particulate impurities, emulsified water, and free water in the oil without heating. For oil containing a lot of water, the separation effect is particularly significant, and the separation speed is several to dozens of times that of the traditional speed. Filter the moisture and mechanical impurities in various light oils of the purifier, so as to purify and regenerate the oil.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Prodcut features
1) Remove large moisture without heating;
2) The dehydration speed is fast, and the oil that is half oil and half water can be quickly separated;
3) Step-by-step precision filtration to remove mechanical impurities to zero;
4) Cart type design, easy to use, suitable for light oil with high water content to draw fuel;
5) The operation is simple, it can automatically run and release water online, and no need to be guarded;
6) Low operating cost, 50% lower cost than vacuum oil filter, centrifugal separation, plate and frame pressure filter;
7) This equipment has common type and explosion-proof type. It can also be specially designed according to customer requirements.
Product applications
The specific applicable oil products are as follows: purification of aviation fuel, gasoline, kerosene, diesel oil, turbine oil and other low-viscosity hydraulic lubricating oils.
