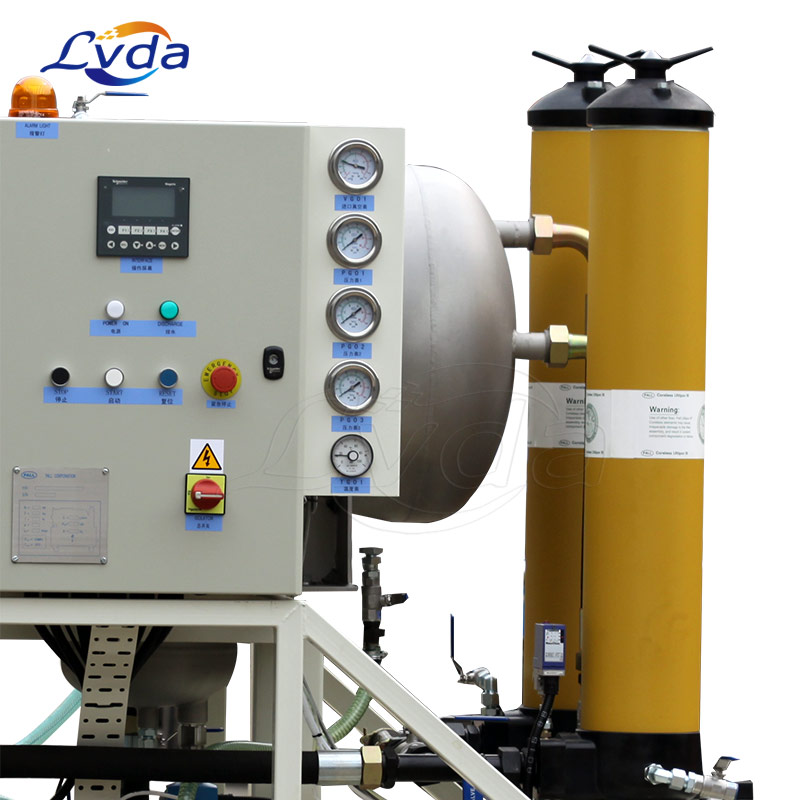

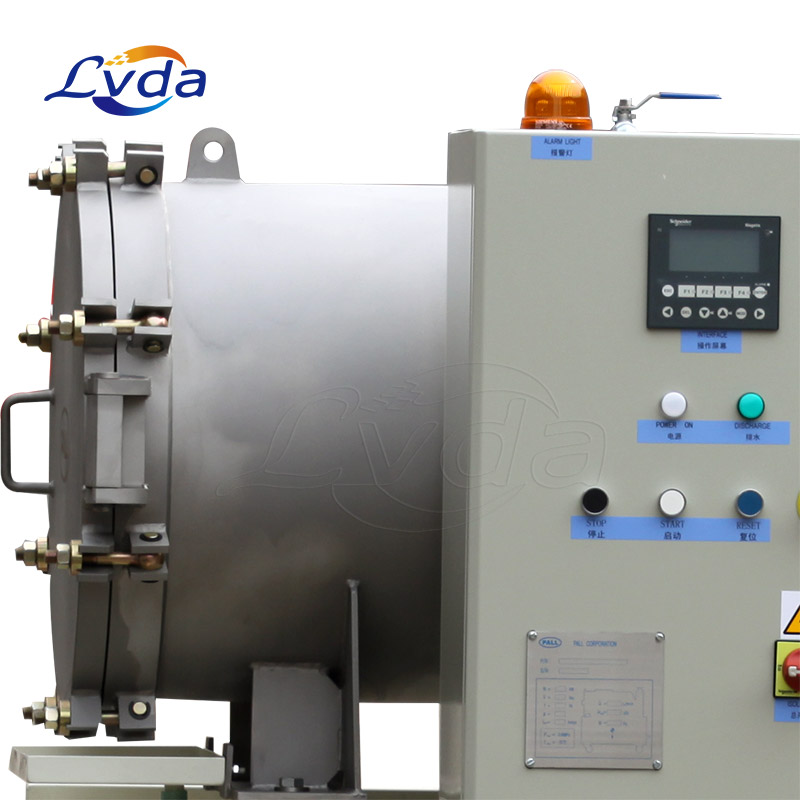

Cooking oil coalescing dewatering purification machine
Cooking oil coalescing dewatering purification machine is special for filtering used cooking oil, Coconut Oil,dirty vegetable oil , groundnut oil, olive oil,palm oil,biodiesel oil production pretreatment etc.
It can remove particle ,separate moisture, gas, free fatty acids, volatile odoriferous material,odor, and wax, foam in the waste oil.
The treated oil is clean, limpidity, and good smell. It is a good purification machine for Fry food factory, oil restaurant, cooking oil factory, biodiesel factory,vegetable oil factory, and waste oil collecting store.
According to the treated oil usages, you can choose different machine body. For edible usage, we suggest you choose stainless steel body; For industrial use, we suggest you choose carbon steel body. If your oil contains too many impurities,we suggest you choose a press filter.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
Strong ability to filter the impurity,strong capability of breaking emulsification. We employ the high quality filter materials, which has a good function in anti-corrosive, thermos table, mechanical strength. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
The combination of coalescing separation and vacuum dewatering
Advanced dielectric condensation device.
With H.P.M high polymeric absorbing material.
Using the 3D Stereo-Evaporation technology, which can separate the odor and gas from the oil quickly.
This machine installs the new pressure protector, which can control the temperature automatically; also it can drain water on line by the water–separator device. So it is easy to control this machine.
Product applications
*Food and beverage industry; beer, wine. wine: sake, liquor, wine: fruit juice, bottled water, tea drinks, soy milk, syrup. dairy products, food addtives, water filtration to clarify the process and CIP.
*Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered.
*Oil and gas industry; amine desulfurization. dehydration flux filter, oil field water, completion fluid filtration.
*Car paint. painting industry: paint, electrophoretic paint, pre-treatment fluid. paint and paint raw materials and solvent filtration.
*Textile, printing and dyeing, paper making industry: spinning liquid. dyes, flux, water, additives, adhesives filter.
*Edible oils and soap industry; coconut oil, polishing purification of edible oil, soap raw materials and water filtration.
*Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration.
*The electronic and electroplating industry: a variety of plating solution and water filtration.
*Machining industry; a variety of cutting fluid, coolant and cleaning liquid filtration.
