Cooking oil coalescing dewatering purifier
The cooking oil coalescing dewatering purifier integrates two functions of precision filtration and high-efficiency dehydration. The filter uses advanced "coalescence separation" technology for dehydration, with high dehydration efficiency and strong capacity, especially for the separation of a large amount of water in the oil. It has the incomparable advantages of vacuum method and centrifugal method, and can break all the oil-water emulsification structure in the medium.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
Particle Filtration System: The coalescence dehydration oil purifier uses high-efficiency filter material as the filter medium, and the design of the large filter area can effectively filter out extremely fine particles and impurities, so that the oil can reach a high degree of cleanliness.

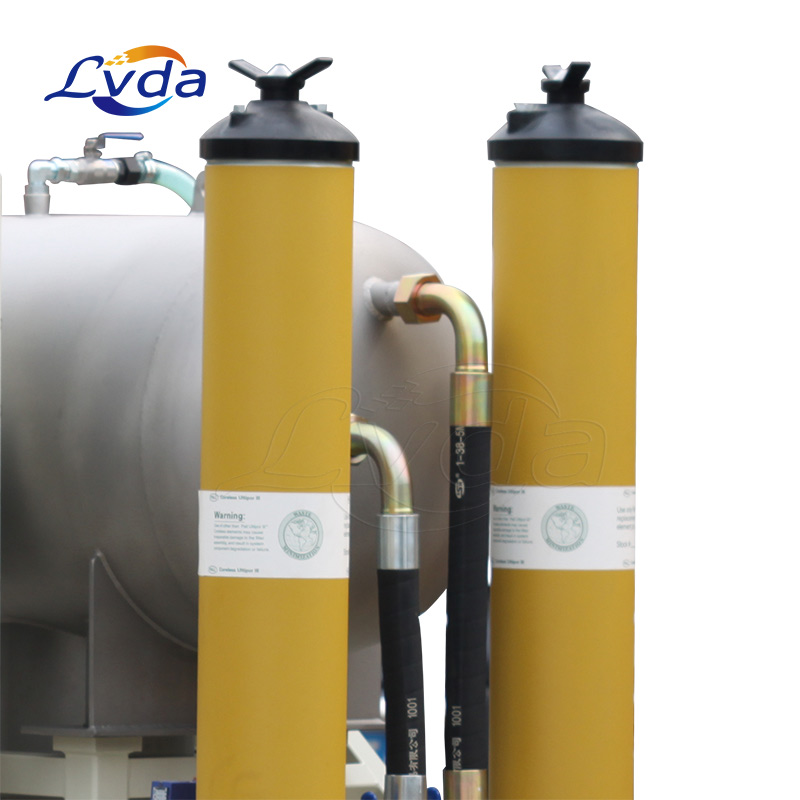

Coalescing System:The coalescing system is composed of a set of coalescing filter elements. The coalescing filter element adopts a unique polar molecular structure. After passing through the filter element, the free water and emulsified water in the oil are coalesced into larger water droplets, and then rely on gravity. Settled into the water storage tank under the action.
Separation system:The separation filter element of the separation system is made of special hydrophobic material. When the oil passes through the filter element, the water droplets are blocked on the outer surface of the filter element and coalesce with each other until they settle into the water storage tank due to the action of gravity.
Drainage system:The separated water is stored in the water storage tank. When the interface height reaches the set value, the valve is opened to discharge the water until it drops to the lower liquid level, and the valve is closed to stop the drainage.
*Use special oil pump to transport oil.
* Unique degassing and dehydration system to quickly separate water and gas in oil.
*Multi-stage filtration is encrypted step by step, with large dirt holding capacity, long service life of filter element, and automatic detection function of filter element pollution.
*The heating system adopts the optimized pipeline design to ensure uniform heating and stable oil temperature.
*Automatic constant temperature control system, automatic liquid level control system, automatic defoaming control system, automatic pressure protection system and sophisticated configuration ensure the high-performance operation of the equipment.
*Online oil filter, can be unattended, and the running status is displayed by indicator lights.
*Humanized design of this machine, low noise, simple operation, long maintenance interval, low energy consumption, saving operating cost.
*Equipped with filter element replacement indicator and filter element saturation shutdown device.
*Equipped with leakage and overload shutdown device to protect the motor.
*Equipped with phase sequence, phase loss protection functions, and sudden shutdown safety control.
Cooking oil coalescing dewatering purifier optional mode
*According to the needs of users, PLC intelligent control, touch screen operation, and dynamic display can be selected.
*Optional online moisture detector.

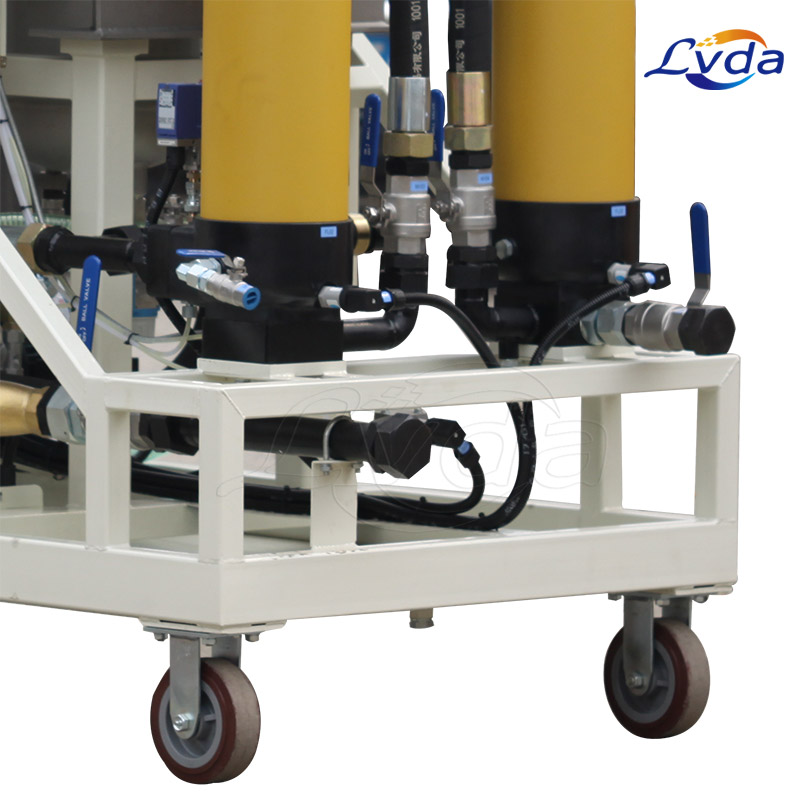

*The structure of the whole machine can be made into mobile type, fixed type and trailer type (half-axle or double-axle).
*It can be made into fully enclosed type, canopy type, canvas awning and open type.
*Optional water ring vacuum pump
Product applications
Mechanical processing, metallurgical industry, petrochemical industry, cement plant, electric power industry, iron and steel industry, paper industry, textile industry, purification of turbine oil and transformer oil; water removal and impurity removal of oil in hydraulic lubrication system; comprehensive access to hydraulic lubrication system Improve system cleanliness.
