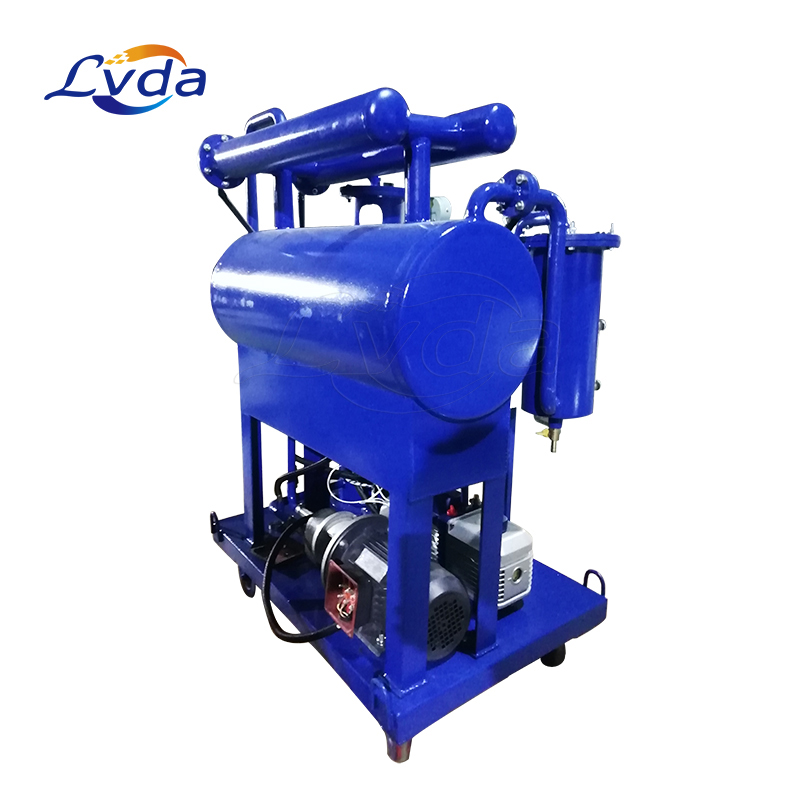

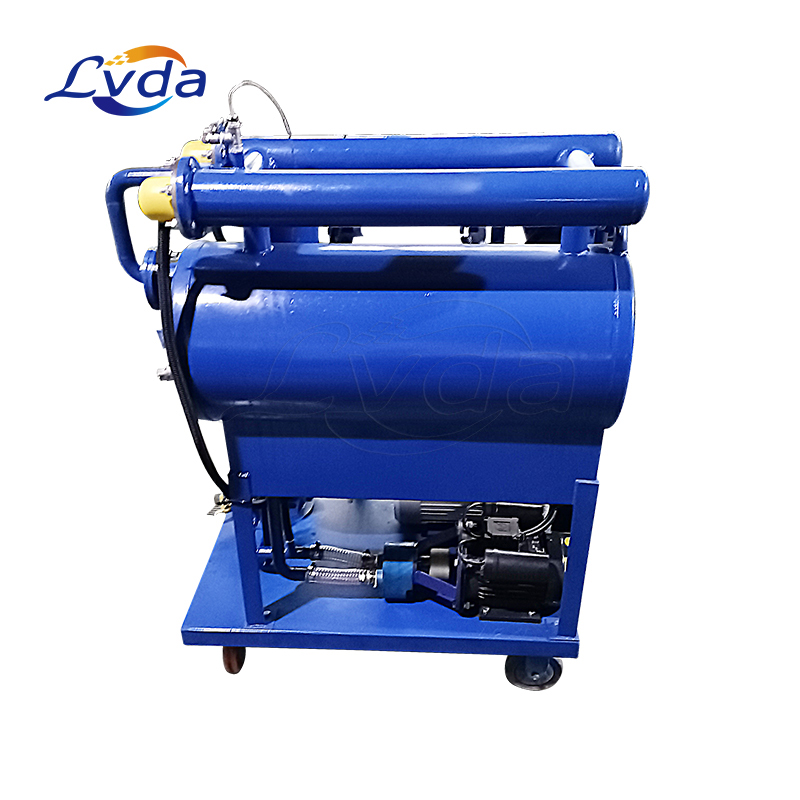

Vacuum pump oil decolorization regeneration vacuum filter equipment
When the vacuum pump oil decolorization and regeneration vacuum filtration equipment works, the oil to be filtered enters the heater under the action of the external atmospheric pressure and the suction of the vacuum pump. The heated oil passes through the strong magnetic filter, and the metal particles and large particles of impurities are removed After filtering out, the fine impurity particles enter the secondary and precision filters for re-filtration, and the oil with the impurities removed enters the three-dimensional vacuum flash tower. On the flashing Pall ring, a very thin oil film (thickness is 0.025mm) is formed, and the oil film curve moves downward, resulting in a larger aeration area and a time retention process of aeration, so as to carry out sufficient demulsification, dehydration and dehydration. gas separation process. The mixed gas formed by the evaporated water vapor, light hydrocarbons and other gases enters the water-gas separation device, and the strong wind condenses into water and discharges it through the drainage device. The non-condensable gas is discharged through the vacuum pump, and the oil that removes moisture, gas and mechanical impurities enters the precision filter through the oil pump, and the particulate impurities in the oil are filtered out to be the purified oil. The clean oil completes the entire purification process. It is a professional purification equipment for removing water, solid particles, gas and other impurities in industrial compressor oil. Our vacuum pump oil decolorization and regeneration vacuum filter equipment can quickly restore the performance of waste hydraulic oil and waste lubricating oil, and prolong the service life for more than 3 years. Cost savings and effective protection of production equipment.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
The vacuum pump oil decolorization and regeneration vacuum filter equipment not only has the characteristics of a vacuum oil filter, but also has the function of decolorizing oil.
Color: This vacuum pump oil decolorization and regeneration vacuum filtration equipment can purify the opaque oil appearance of waste oil to the color close to the national standard oil of new oil.
Adopt unique invention patent technology - decolorization process to separate oxides, carbon residues, colloids and chromosomes in waste oil without acid-base process
The whole machine does not need filter cloth and filter paper, which greatly reduces the production cost.
Low temperature distillation is adopted to better protect the oil quality.
Pure physical purification, the oil quality is restored as before, without destroying the oil additives.
Product applications
Vacuum pump oil decolorization and regeneration vacuum filtration equipment is mainly used to process vacuum pump oil, unqualified turbine oil of steam turbine equipment, and also can process mechanical lubricating oil, gear oil, hydraulic oil, coal mill oil, rail oil, cutting oil, motor oil, mechanical oil , Turbine oil, transformer oil, insulating oil, diesel oil, fuel oil and other high, medium and low viscosity industrial oils.
