Product Details

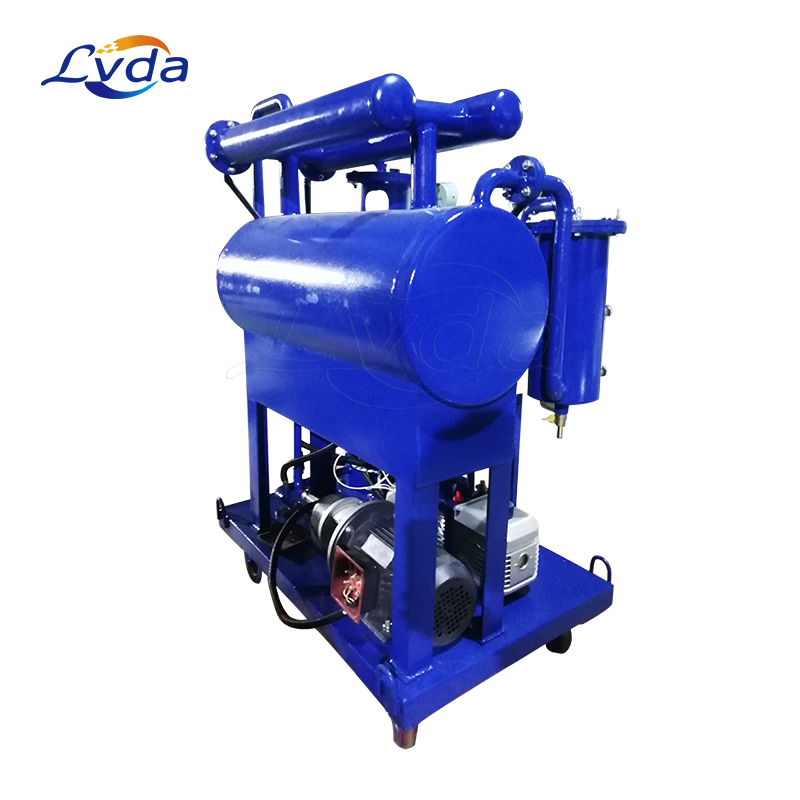

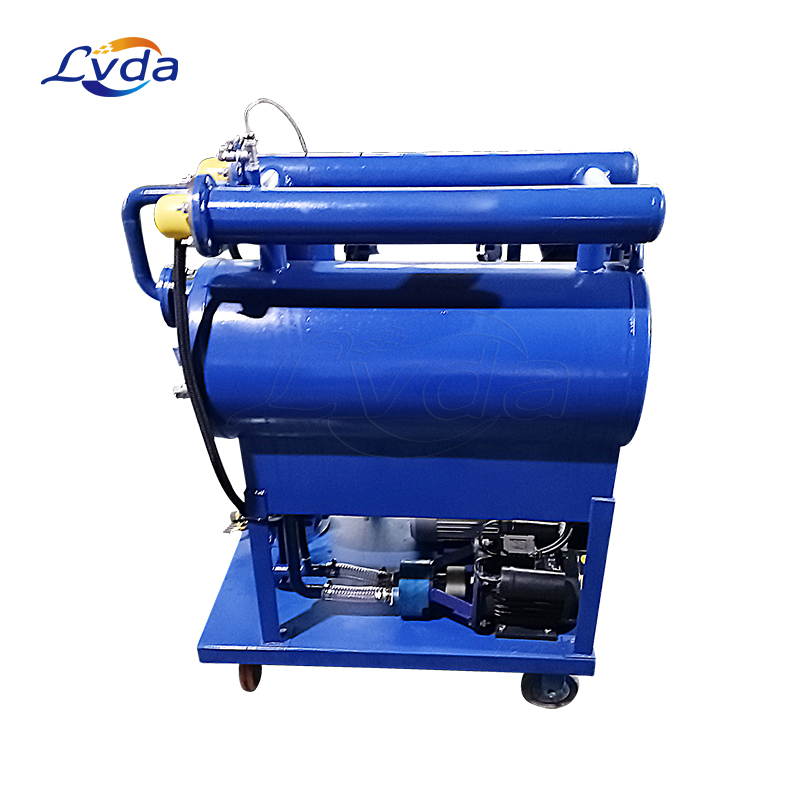

Compressor oil filtration and purification vacuum oil purifier
When the compressor oil filtration and purification vacuum oil purifier works, the oil to be filtered enters the heater under the action of the external atmospheric pressure and the suction of the vacuum pump, and the heated oil passes through the strong magnetic filter, metal particles and large particles. The impurities are filtered out, and the fine impurity particles are sent to the secondary and precision filters for re-filtration. The oil with the impurities removed enters the three-dimensional vacuum flash tower. Under the action of the spray device, the oil is dispersed into mist and sprayed. On the three-dimensional flash Pall ring, a very thin oil film (thickness is 0.025mm) is formed, and the oil film curve moves downward, resulting in a larger aeration area and a time retention process of aeration, so as to carry out sufficient demulsification, Separation process of dehydration and degassing. The mixed gas formed by the evaporated water vapor, light hydrocarbons and other gases enters the water-gas separation device, and the strong wind condenses into water and discharges it through the drainage device. The non-condensable gas is discharged through the vacuum pump, and the oil that removes moisture, gas and mechanical impurities enters the precision filter through the oil pump, and the particulate impurities in the oil are filtered out, which is the purified oil.
It is a professional purification equipment for removing moisture, solid particles, gas and other impurities in industrial compressor oil. It can quickly restore the performance of waste hydraulic oil and waste lubricating oil, prolong the service life of 3-5 years, greatly save production costs, and can effectively Protect production equipment.
Product parameters
Model
|
AOP-1V-25
|
AOP-1V-32
|
AOP-1V-50
|
AOP-1V-100
|
AOP-1V-150
|
AOP-1V-200
|
Flow rate(L/min)
|
25
|
32
|
50
|
100
|
150
|
200
|
Working pressure(Mpa)
|
|
|
0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
|
≤ - 0.095
|
|
|
|
Water content
|
|
|
5 - 30
|
|
|
|
Air content
|
|
|
≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
|
100 |
|
|
|
Grade 1 filter rating(μm)
|
|
|
10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
|
3/5 |
|
|
|
Pressure differentials
|
|
|
00.2Mpa |
|
|
|
Voltage(V)
|
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
|
18 |
26 |
36 |
65 |
65 |
135 |
Weight(kg)
|
360
|
470
|
680
|
840
|
960
|
1500
|
Dimensions(mm) |
12500x920x1600
|
1350x980x1600
|
1500x1060x1800
|
1600x1080x2100
|
1800x1200x2200
|
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
The compressor oil filtration and purification vacuum oil purifier not only has the characteristics of the vacuum oil purifier, but also has the function of decolorizing the oil.
Color: This machine can purify the opaque oil appearance of waste oil to the color close to the national standard oil of new oil.
Adopt unique invention patent technology - decolorization process to separate oxides, carbon residues, colloids and chromosomes in waste oil without acid-base process
The whole machine does not need filter cloth and filter paper, which greatly reduces the production cost.
Low temperature distillation is adopted to better protect the oil quality.
Pure physical purification, the oil quality is restored as before, without destroying the oil additives.
Fully enclosed operation, environmental protection, no material loss.
Automatic slag discharge greatly reduces the labor intensity of one person and realizes continuous operation
Adopt advanced indirect heating system, fast heating, stable oil temperature and uniform heating.
The advanced shower deodorization system is used to quickly and effectively remove various odors in the oil and protect the environment.
The conventional material of lubricating oil and hydraulic oil vacuum oil purifier is carbon steel, but non-standard customization can choose 304 stainless steel and 306 stainless steel
Lubricating oil, hydraulic oil vacuum oil filter optional mode
According to user requirements, PLC intelligent control, touch screen operation, and dynamic display can be selected.
Optional online moisture detector and particle detector.
The structure of the whole machine can be made into mobile type, fixed type, trailer type (half shaft or double shaft), fully enclosed type, canopy type, canvas shed, open type
Product applications
It is widely used in electric power, chemical industry, metallurgy, machinery, mining, transportation, manufacturing and other industries to purify hydraulic oil, refrigeration oil, hydraulic transmission oil, gear oil, vacuum pump oil, internal combustion engine oil, etc. It can quickly remove moisture, demulsification, gas and mechanical impurities in oil, and restore the performance of lubricating oil.
