Product Details

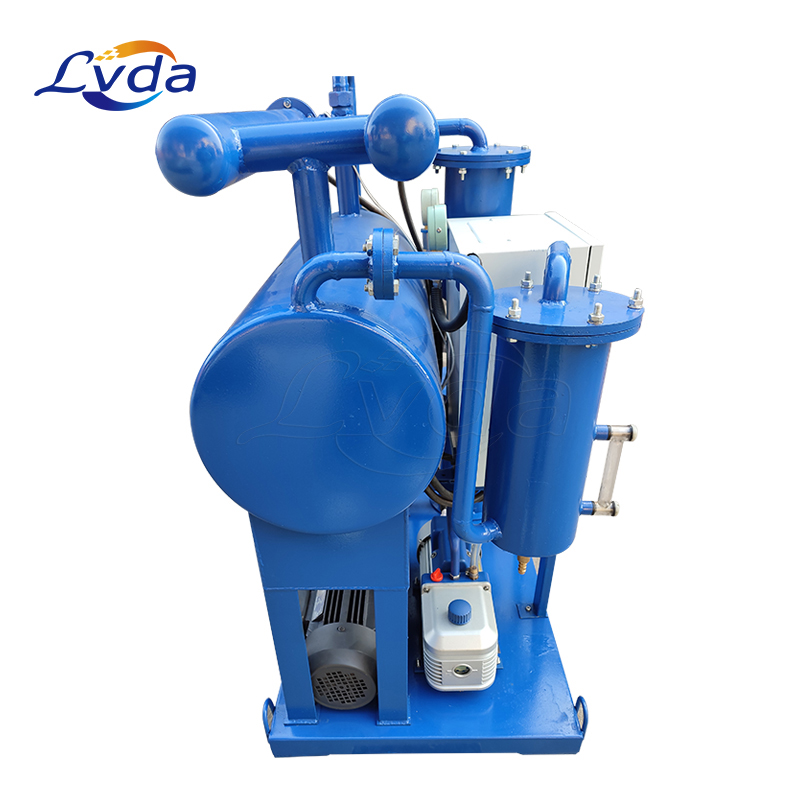

The purification and regeneration vacuum purifier for mechanical transmission oil
When the purification and regeneration vacuum purifier for mechanical transmission oil is working, the oil that needs to be filtered enters the heater under the action of the external atmospheric pressure and the suction of the vacuum pump, and the heated oil passes through the strong magnetic filter, metal particles and large particles. The particulate impurities are filtered out, and the particles containing fine impurities enter the secondary and precision filters for re-filtration, and the oil from which impurities are removed enters the three-dimensional vacuum flash tower. Under the action of the spray device, the oil is dispersed into mist, spray It is drenched on the three-dimensional flash Pall ring to form a thin oil film (thickness is 0.025mm), and the oil film curve moves downward, resulting in a larger aeration area and a time retention process of aeration, so as to carry out sufficient demulsification , dehydration, degassing separation process. The mixed gas formed by the evaporated water vapor, light hydrocarbons and other gases enters the water-gas separation device, and the strong wind condenses into water and discharges it through the drainage device. The non-condensable gas is discharged through the vacuum pump, and the oil that has removed moisture, gas and mechanical impurities enters the precision filter through the oil pump, and the particulate impurities in the oil are filtered out, which is the purified oil and clean oil, and the whole purification process is completed.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
The purification and regeneration vacuum purifier for mechanical transmission oil is made of stainless steel and special sealing materials for pipes, tanks and pumps, which can effectively prevent corrosion and leakage.
It can degas, dehydrate, deacidify, remove foam, remove impurities, etc.
Vacuum three-dimensional flash evaporation combined with membrane separation technology can maximize the dehydration and degassing efficiency.
Multi-stage precision filtration, impurity removal and acid removal and other oil purification technologies make the treated fire-resistant oil as close as possible to the new oil standard.
A variety of media, multi-mode condensation system.
The use of various safety protection interlocking devices makes the equipment safer and more reliable.
Material of hydraulic vacuum anti-rust oil purification equipment
Regular: Carbon Steel
Non-standard customization: 304 stainless steel and 306 stainless steel can be selected
Optional modes of the purification and regeneration vacuum purifier for mechanical transmission oil:

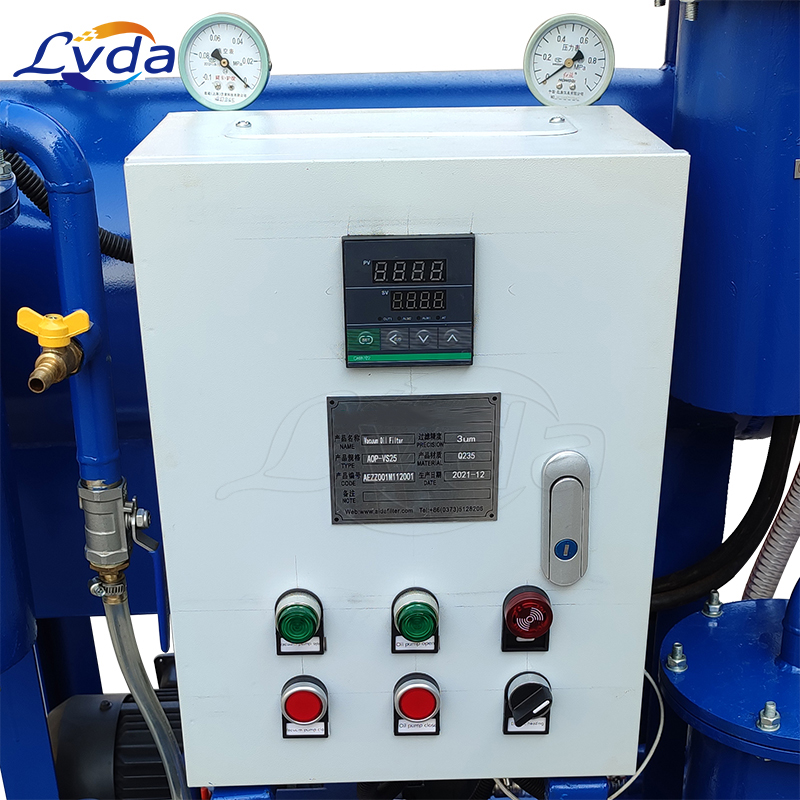

According to user requirements, PLC intelligent control, touch screen operation, and dynamic display can be selected.
Optional online moisture detector and particle detector.
Product applications
Our purification and regeneration vacuum purifier for mechanical transmission oil is widely used in metallurgy, machinery, mining, transportation, manufacturing and other industries to purify hydraulic oil, refrigeration oil, hydraulic transmission oil, gear oil, vacuum pump oil, internal combustion engine oil, etc. It can quickly remove moisture, demulsification, gas and mechanical impurities in oil, and restore the performance of lubricating oil.
