Product Details

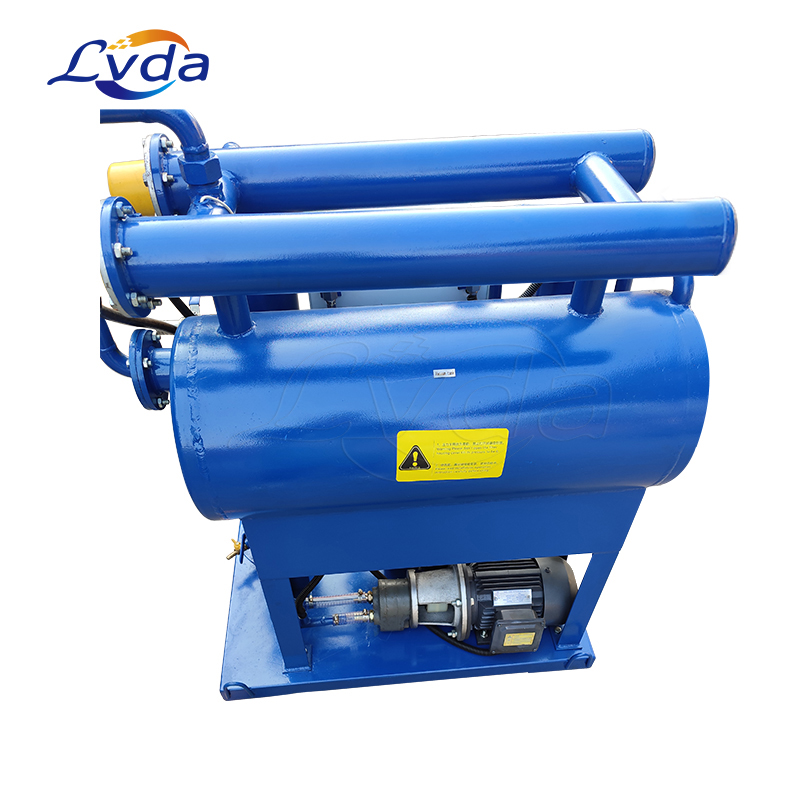

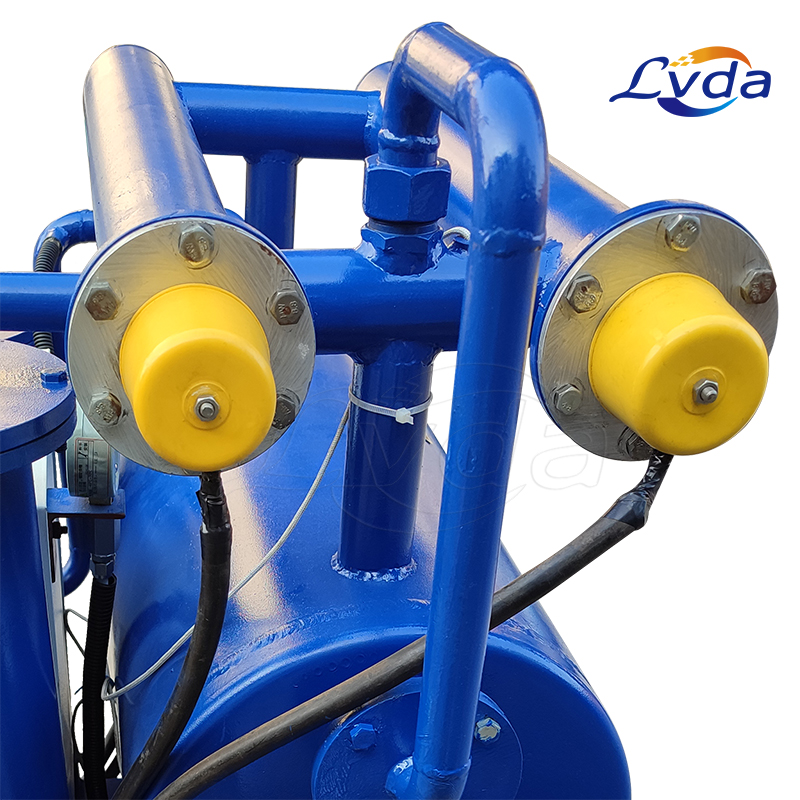

Hydraulic oil vacuum purifier
This one is a hydraulic oil vacuum purifier. During the operation of the oil, moisture, gas, volatile substances and impurities are inevitably mixed into the lubricating oil for various reasons, which accelerates the oxidation of the oil, promotes the formation of foam, scale and sludge, and reduces the insulation and lubrication of the oil. , heat dissipation, dispersion, cooling and other performance. At the same time, it causes corrosion and wear of metal parts, which affects the normal operation of hydraulic system, power system and lubrication system. This series of multifunctional hydraulic oil vacuum oil filter can quickly remove moisture, gas, impurities and volatiles (gasoline, diesel, kerosene, etc.) in oil. Improve oil quality, restore lubricating oil viscosity insulation performance, flash point and performance. Ensure the normal operation of hydraulic system, power system and lubrication system.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Main product features of the multifunctional hydraulic oil vacuum purifier
◆High filtration precision and strong ability to filter out impurities
This series of multi-functional hydraulic oil vacuum purifier adopts a multi-stage cartridge filter, the pre-stage magnetic filter has strong ability to filter impurities, and the coarse filter adopts a large-flow washable filter element, which has high filtration efficiency and can remove a large amount of impurities in the oil. "The high-efficiency fine filtration device of glass fiber has large scale holding capacity, high strength and long life, and can remove fine particles in oil.
◆Strong ability to remove moisture and demulsification
This series of multifunctional hydraulic oil vacuum purifier adopts the world's advanced coalescence separation technology and a special polymer material demulsification device, which can not only quickly and easily separate the liquid water and free water in the oil, but also remove the dissolved water in the oil. . It can make the heavily emulsified lubricating oil clear and transparent, and meet the requirements of hydraulic lubricating equipment.
Product applications
This hydraulic oil vacuum purifier is suitable for unqualified insulating oil, hydraulic oil, lubricating oil, refrigeration oil, anti-wear hydraulic oil and other high-precision industrial lubricating oils in oil fields, mining, metallurgy, engineering machinery, electricity, transportation, manufacturing and other industries. regeneration treatment.
