Product Details

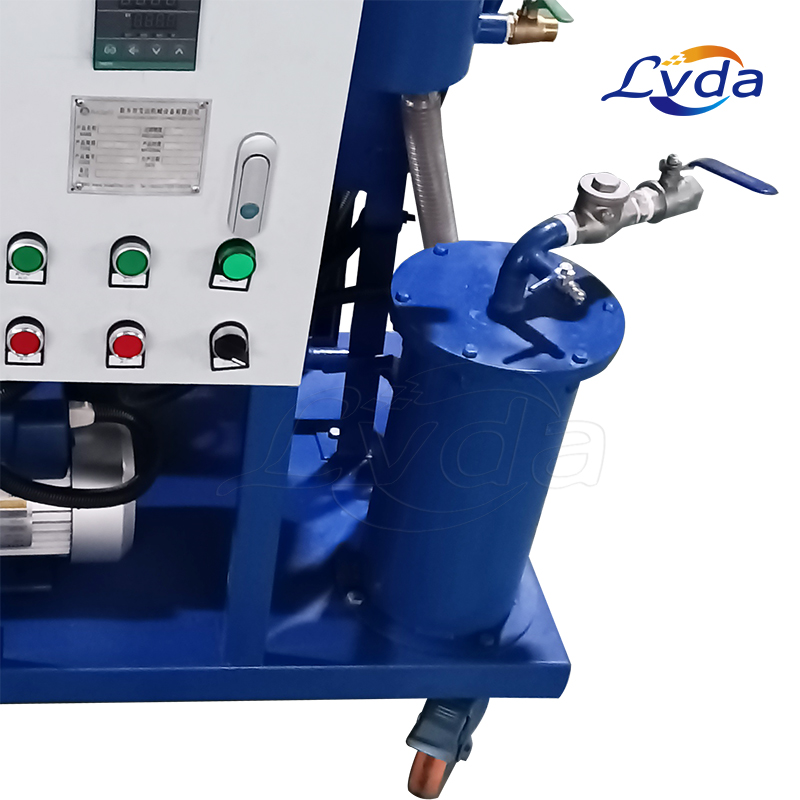

Decolorization vacuum oil purifier
This series of decolorization vacuum oil purifier is innovatively designed by absorbing the advanced technology of similar products at home and abroad. It is cost-effective, and its oil purification process and equipment performance are at the leading level in China. It integrates vacuum flash drying, flocculation, adsorption and other purification technologies. It can remove moisture and impurities (solid impurities and oxidized impurities) in the oil more efficiently.
Hydrocarbons, colloids and chromosomes and other harmful substances, restore various physical and chemical indicators of oil: viscosity, acid value, pour point emulsifying performance, viscosity-temperature performance, corrosion performance, oxidation stability, etc., while improving oil products Flash point 5%-30%. The flash point of an oil is an important volatility indicator. The higher the flash point, the less volatile it is, the better the cooling performance, the better the cooling performance for mechanical equipment, the better the viscosity-temperature performance of the oil, and the longer the lubricating effect and service life. Ensure that the oil is circulated for a long time. It is mainly used for oil purification of hydraulic and lubricating systems to ensure the pollution degree of the system to the working medium, thereby improving the maintenance level of equipment, energy saving and emission reduction.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
1. This machine not only has the characteristics of vacuum oil filter, but also has the function of decolorizing oil.
2. Color: This machine can purify the opaque oil appearance of waste oil to the color close to the national standard oil of new oil.
3. Using the unique patented technology one - decolorization process, to separate the oxides, carbon residues, colloids and chromosomes in the waste oil, no acid-base process is required
4. The whole machine does not need filter cloth and filter paper, which greatly reduces the production cost.
5. Use low temperature distillation to better protect the oil quality.
6. Pure physical purification, the oil quality is restored as before, without destroying the oil additives.
7. Fully enclosed operation, environmental protection, no material loss.
8. Automatic slag discharge greatly reduces the labor intensity of one person and realizes continuous operation
9. Using advanced indirect heating system, the heating is fast, the oil temperature is stable, and the heating is even.
10. Adopt advanced shower deodorization system to quickly and effectively remove various peculiar smells in oil and protect the environment.
11. The oil purification effect is obvious and intuitive, and the oil that has deteriorated and turned black and smelly can be refined into the national standard oil that is clear, transparent and has no peculiar smell.
12. By removing the oxides in the fluid, restore the various properties and physical and chemical indicators of the oil (national GB standard).
13. Automatic slag discharge: easy to operate, labor-saving and time-saving; about 90% shorter than manual slag discharge.
Product applications
This machine is suitable for the regeneration and decolorization of seriously deteriorated transformer oil, switch oil, insulating oil, etc., and can remove acid components, suspended substances, sedimentary substances, etc. in the oil. This type of oil filter can also be used for equipment oil filling, oil transfer of oil storage tanks and other operations.
