Used cooking oil vacuum purifier
Used cooking oil vacuum purifier is especially designed to remove water, gases and particulates from waste cooking oils, vegetable oils, palm oil, rapeseed oil, sunflower seed oil, olive oil, peanut oil coconut oil, etc. to produce high quality biodiesel.
The used cooking oil vacuum purifiers are designed for processing oils in workshops or in the field.This machine can rapidly remove water, particulate matters, impurities and gas, air, volatile matter (for example ethyl alcohol, gasoline, ammonia and so on) from waste cooking oil completely.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
1. This used cooking oil vacuum purifier is composed of two parts, one is the press filter, and the other is the vacuum oil purifier system. The press filter can remove the big or tiny impurities; The precision of purification can reach to 1 Micro. The vacuum system is equiped with filters of three grade (primary filter, mass water separator, and fine filer). All processes is under vacuum condition.

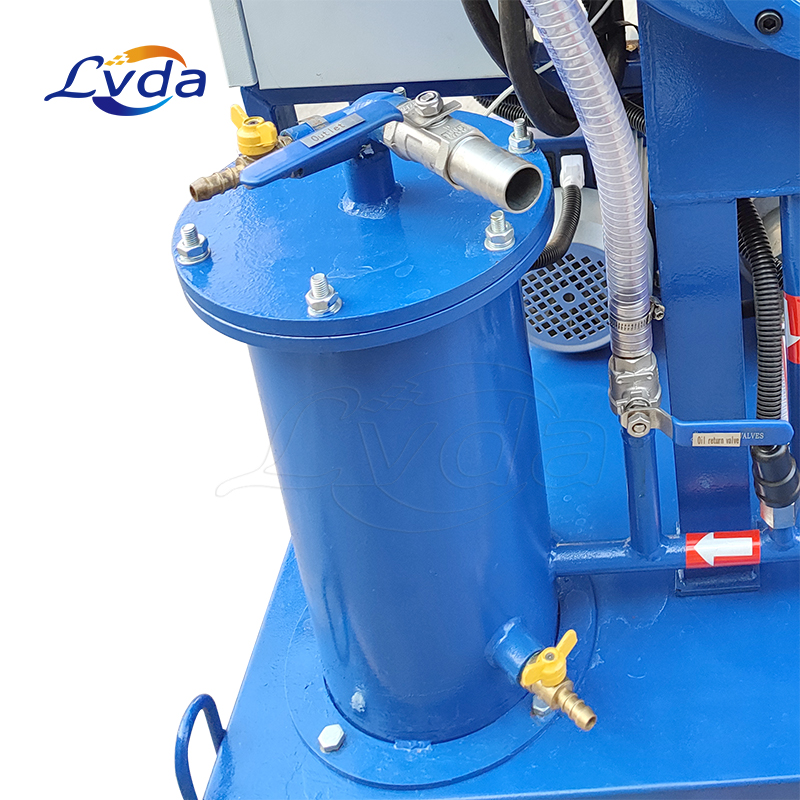

2. The primary filter, which is made of the stainlessness steel, is anti-rust and anti-corrupt. It mainly removes the residual impurities which escape from the press filter, making sure the treated oil won't have any impurity when it goes into the water separator and vacuum separator.
3. The water separator, which is equiped with a special filter, mainly removes the mass water from the oil. Usually the waste cooking oil contains much water and it need to be removed from the oil. After the water separator, the oil just contains the tiny water and soluble water.

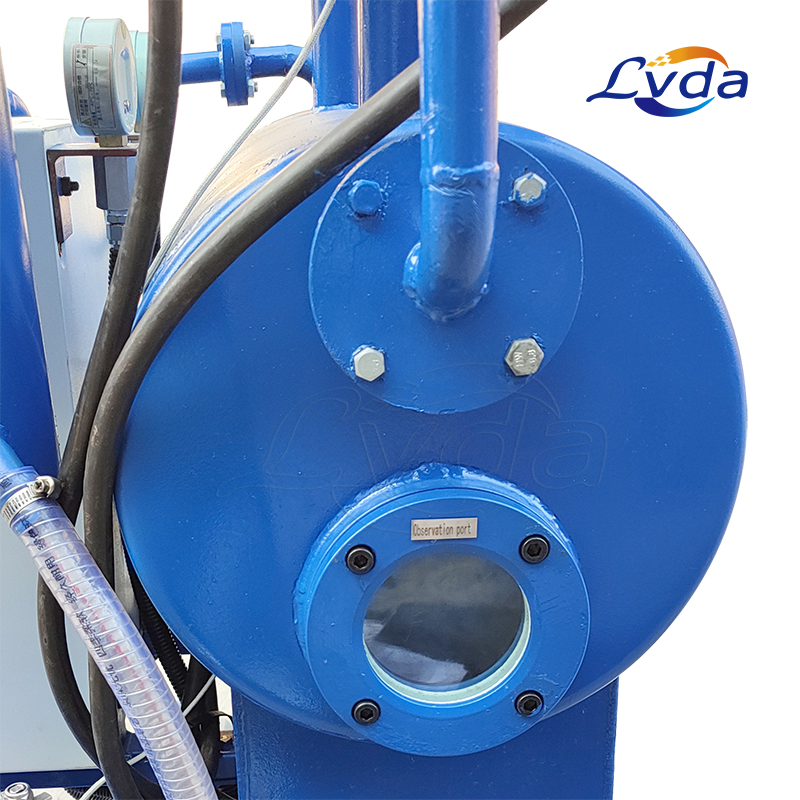

4. After the process of the water separator, the oil will goes into the vacuum separator which adopts three-dimensional duplex evaporation and film evaporation. For protecting the oil nature, it is better that the oil temperature is lower than 80°c. Because our machine works under the vacuum and low pressure condition, so the oil doesn't need to be heated to 100 °c and usually it just need to be heated to 45 °c. Then the tiny water, soluble water, acid, alcohol, other volatility liquid and so on can be removed completely and effectively.
5. For the fine filter, which is equips with the stainless steel filter, the purification hole is less than 1 Micro, which can make sure the filtered oil is completely clear without any impurity.
6. It adopts back flushing system, which can clear impurities automatically.
7. We uses stainless steel filter element which is good at anti-corrosion. Especially, the precision of filtering impurities is quite high and the service life is long. Also, it has a large volume for storing the impurities.
8.Its unique degassing and dewatering system adopts the 3D-evaporation technique and thin film evaporation, which can separate the trace water, soluble water and gas from the oil quickly by the multi-level water-oil separation technology.
9. Highly automatic operation. convenient, reliable, and safe.
AdvantagesAccording cooking oil nature, the used cooking oil/vegetable oil includes high water, more acid matter, much impurities and offensive odor. This filtration system adopts Plate Pressure system can separate the sundry matters and water from the oil quickly, and break the oil emulsification effectively. Then equip with two primaries filter and fine filter, it can remove impurities thoroughly. Next, the machine adopts highly vacuum system to dewater system to dehydrate and deodorize the oil fast. In addition, this machine use stainless steel filter element, it resists the acid in oil strongly. So after the treatment by the machine, the quality will become very good and without such contamination again, which is perfect as raw material to produce biodiesel, or other products like soaps, and so on.
Product applications
1.Remove water, gases and particulates from waste cooking oils, vegetable oils, palm oil, rapeseed oil, sunflower seed oil, olive oil, peanut oil coconut oil, etc. to produce high quality biodiesel.
2,Rapidly remove water, particulate matters, impurities and gas, air, volatile matter (for example ethyl alcohol, gasoline, ammonia and so on) from waste cooking oil completely.
