Product Details
Vacuum silicone oil purifier
Vacuum silicone oil purifier is designed for purifying silicon oil, used or aged transformer oil, FR3 Vegetable Oil,FR3 fire-resistant green dielectric liquids,switchgear oil and different insulating oils. It is also used for purifying insulation oil in all kinds of large power equipments,which are above 110KV, and 500 meters altitude.
The system can remove the free water, soluble water, big and small size particles, impurity,gas, acid, PCB,free carbon (polarity material) , increasing the pressure force and quality of oil, improving the breakdown voltage value, making the transformers and electric device running safely.
Mobile (trailer) type is optional, completely closed structure, waterproof, dustproof, it can move long distance working in field. According to fieldwork requirement, it can be easy to move to any work point by traction. It is special suitable for purifying the transformer oil which is located in different fields.
Product parameters
Model
| AOP-1V-25
| AOP-1V-32
| AOP-1V-50
| AOP-1V-100
| AOP-1V-150
| AOP-1V-200
|
Flow rate(L/min)
| 25
| 32
| 50
| 100
| 150
| 200
|
Working pressure(Mpa)
|
|
| 0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
| ≤ - 0.095
|
|
|
|
Water content
|
|
| 5 - 30
|
|
|
|
Air content
|
|
| ≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
| 100 |
|
|
|
Grade 1 filter rating(μm)
|
|
| 10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
| 3/5 |
|
|
|
Pressure differentials
|
|
| 00.2Mpa |
|
|
|
Voltage(V)
|
|
| AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
| 18 | 26 | 36 | 65 | 65 | 135 |
Weight(kg)
| 360
| 470
| 680
| 840
| 960
| 1500
|
Dimensions(mm) | 12500x920x1600
| 1350x980x1600
| 1500x1060x1800
| 1600x1080x2100
| 1800x1200x2200
| 2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
1 Advanced dehydrating and degassing system that uses large area three-dimensional flash distillation technique to remove harmful composition in the oil such as water, air and gas.
2 used for oil filling for transformers and circuit breakers under vacuum condition.

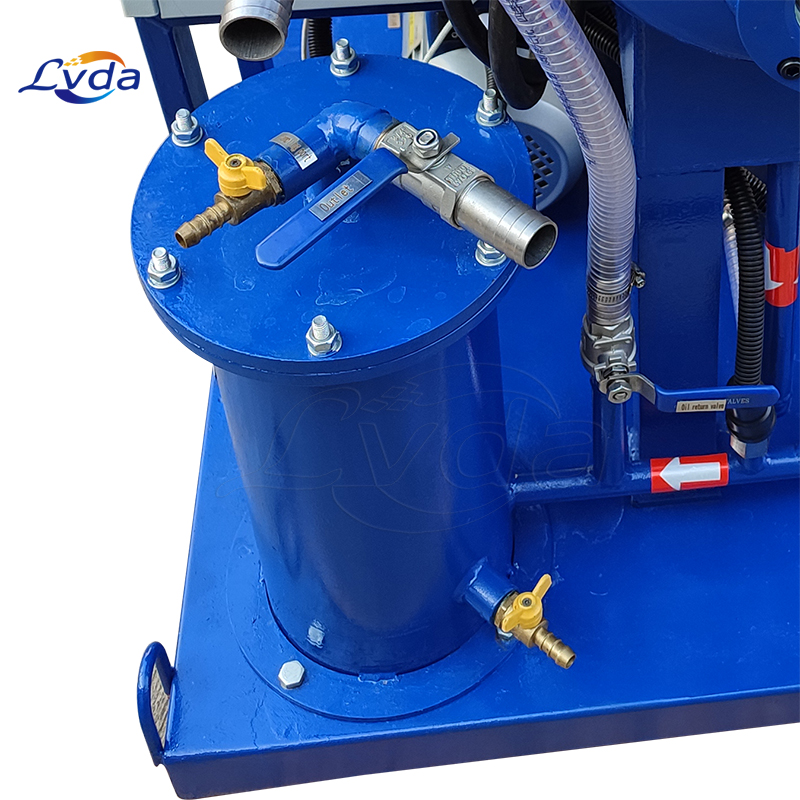

3 Precise filtration system, high-quality filter element , multistage filtration with gradual precision can help to remove mechanical impurities in the oil.
4 An advanced fully automatic temperature controlling system , liquid-level controlling system ,defoaming controlling system, pressure protecting system and excellent configuration can ensure operation of the equipment with high performance.
5 Online work , allowing separated operation of manual operates from machine with lamps indicating the condition for operation.
6 It is humanization design with low noise , deep purification and long time free maintenance to save cost from the running process.
7 Purifiers are equipped with a chain safety protective system, an interlocking of oil drainage system ,vacuum system and heating system which avoids any possible negative impacts caused by mal-operation.
Product applications
Designed to process and maximize dielectric strength in electrical insulating liquids - including mineral oil, natural esters, synthetic esters, silicone oil and LFH’s (less flammable hydrocarbons) - used in transformers, tap changers, circuit breakers, and other oil-filled electrical devices.
