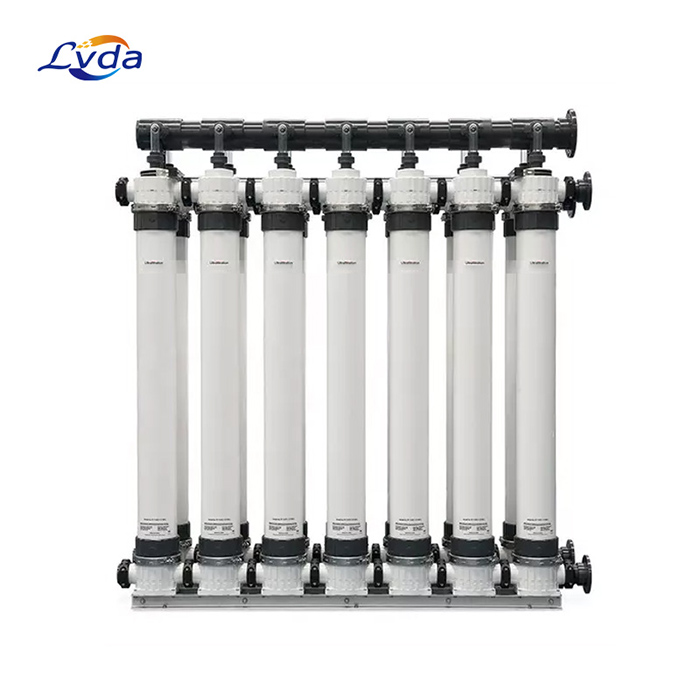

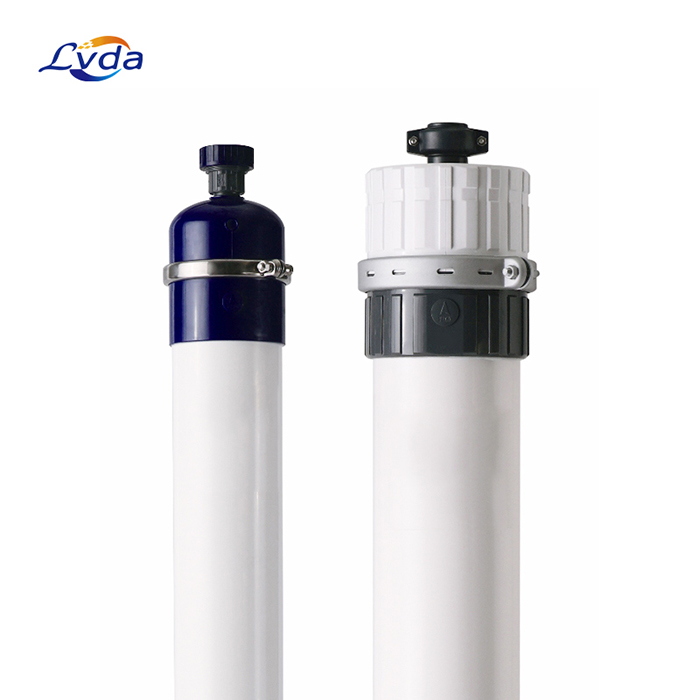

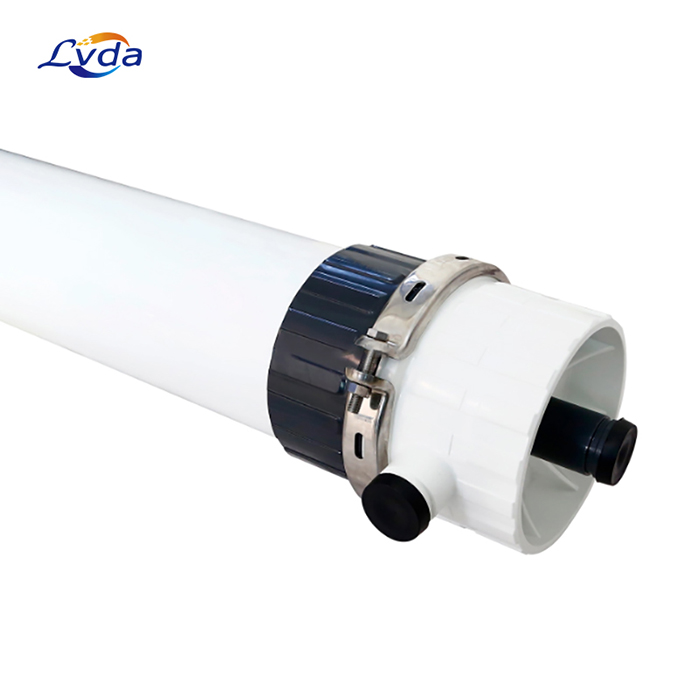

DOW IntegraFlux™ SFP-2880XP Ultrafiltration Modules are an excellent choice for larger systems in which the exceptional permeability of the new XP fiber leads to extra productivity that can contribute substantially to system savings by reducing fittings, frame materials, operating trains, valve stacks, and overall system footprint. DOW IntegraFlux SFP-2880XP Modules offer a high effective membrane area, which contributes to a more economical membrane system design. Containing XP fiber, with up to 35% higher permeability than previous generation modules, these modules improve operating efficiencies and productivity even further. DOW IntegraFlux SFP-2880XP Modules are made from high-strength, PVDF hollow fiber membranes engineered to reduce design and fabrication requirements. The fibers have a 0.03-µm pore size for removal of bacteria, viruses, and particulates.
Product features
1.Excellent removal of colloids, particles, and bacteria
2.Extra high flux membrane with XP fiber
3.High surface area for good packing density and small footprint
4.Low chemical consumption
5.High chemical-resistance PVDF that allows aggressive chemical use for treating challenging water when needed
6.Temperature tolerant for more effective cleaning
7.Mechanically strong fibers enabling long module life
8.Robust design for long life
Product parameters
Product | Type | Membrane Area | Volume | Weight | |||
㎡ | ft² | liters | gallons | kq/lbs | kg/lbs | ||
SFP-2860XP | Industrial | 51 | 549 | 35 | 9.3 | 48/83 | 106/183 |
SFD-2860XP | NSFI/ANSI 61 | 51 | 549 | 35 | 9.3 | 48/83 | 106/183 |
SFP-2880XP | Industrial | 77 | 829 | 39 | 10.3 | 61/100 | 135/220 |
SFD-2880XP | NSF/ANSI 61 | 77 | 829 | 39 | 10.3 | 61/100 | 135/220 |
Product | Units | Length | Diameter | Width | ||||
L | L1 | L2 | L3 | D | W1 | W2 | ||
SFP-2860XP and SFD-2860XP | SI(mm) | 1860±3 | 1500 | 1630±3 | 1820±3 | 225 | 180 | 342 |
US (inch) | 73.2±0.1 | 59.1 | 64.2±0.1 | 71.7±0.1 | 8.9 | 7.1 | 13.5 | |
SFP-2880XP and SFD-2880XP | Sl(mm) | 2360±3 | 2000 | 2130±3 | 2320±3 | 225 | 180 | 342 |
US (inch) | 92.9±0.1 | 78.7 | 83.9±0.1 | 91.3±0.1 | 8.9 | 7.1 | 13.5 |
SI Units | US Units | |
Filtrate Flux (25°C) | 40-110 l/m²/hr | 24-65 gfd |
Flow Range | 3.1-8.5 m³/hr | 13.6-37.4 gpm |
Temperature | 1-40℃ | 34-104℉ |
Maximum Inlet Module Pressure (20℃) | 6.25 bar | 90.65 psi |
Maximum Operating TMP | 2.1 bar | 30.5 psi |
Maximum Operating Air Scour Flow | 12 Nm³/hr | 7.1 scfm |
Maximum Backwash Pressure | 2.5 bar | 36 psi |
Operating pH | 2-11 | |
Maximum NaOCl | 2,000 mg/L | |
Maximum Particle Size | 300 μm | |
Flow Configuration | Outside in, dead end flow | |
Expected Filtrate Turbidity | ≤0.1 NTU | |
Expected Filtrate SDI | ≤ 2.5 |
Product application
1.Industrial water pretreatment
2.Protection of reverse osmosis elements
3.Wastewater and water reuse systems
4.Ground water and surface water treatment
5.Seawater desalination pretreatment
