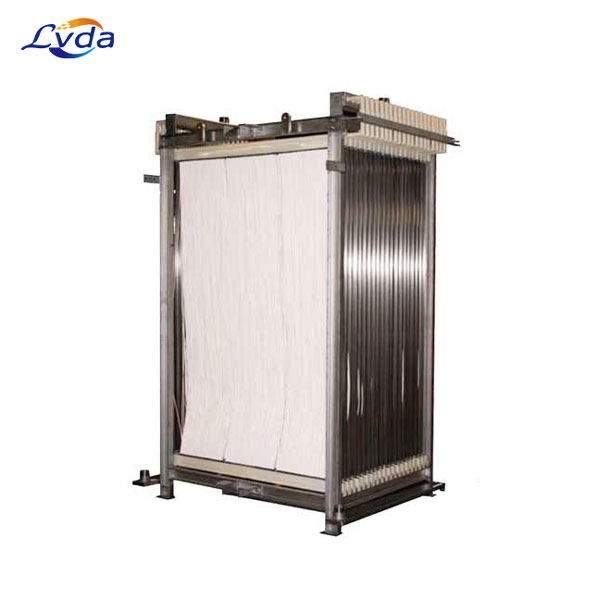

HSMM1200-ES Submerged filtration
HSMM1200-ES Submerged filtration

HSMM1200-ES Submerged filtration

Other water filters

Model Number: HSMM1200-ES HSMM1600-ES HSMM2400-ES

Operating Filtrate Flux : 4-20 gfd (7-34 lmh)

Peak Operating Flux : 30 gfd (51 lmh)

Chemically Enhanced Backwash (CEB) Flux : 2.4 gfd (4 lmh)

CEB Chemicals : NaOCl

Clean In Place (CIP) Flux : 2.4 gfd (4 lmh)

Get Quotation

Product Details

HSMM1200-ES for MBR applications. Compared to conventional activated sludge treatment, MBR produces high-quality permeate water suitable for RO treatment.

Application Data

Configuration:Submerged Membrane

Fiber Orientation:Vertical

Filtrate Flow :Bi-directional

Membrane Polymer:Polyvinylidene Flouride (PVDF)

Pore Size (nominal):0.05 μm

Number of Elements in Module:30 (40 m² each)

Nominal Membrane Area per Module:12,912 ft2 (1200 m²)

Permeate Connections:(2)- 3” MNPT

Air Connections:(2)- 2” MNPT

Guide Pipe Connections:(2)- To fit 3” pipe

Typical Module Dry Weight:2343 lbs (1063 kg

Typical Module Wet Weight:3400 lbs (1543 kg)
