HSMM600-ES Submerged filtration
HSMM600-ES Submerged filtration

HSMM600-ES Submerged filtration

Other water filters

Model Number: HSMM600-ES HSMM800-ES HSM1000-ES HSM1500-ES

Operating Filtrate Flux : 4-20 gfd (7-34 lmh)

Peak Operating Flux : 30 gfd (51 lmh)

Chemically Enhanced Backwash (CEB) Flux : 2.4 gfd (4 lmh)

CEB Chemicals : NaOCl

Clean In Place (CIP) Flux : 2.4 gfd (4 lmh)

CIP Chemicals : NaOCl or Citric Acid

Get Quotation

Product Details

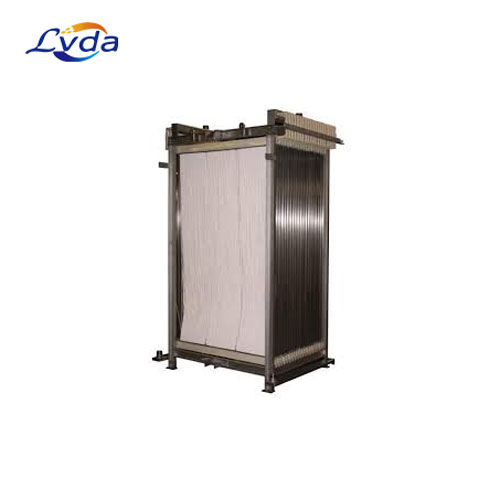

HSMM600-ES is a hybrid wastewater treatment technology that combines biological treatment by activated sludge and physical treatment by membrane filtration.

Application Data

Configuration:Submerged Membrane

Fiber Orientation:Vertical

Filtrate Flow :Bi-directional

Membrane Polymer:Polyvinylidene Flouride (PVDF)

Pore Size (nominal):0.05 μm

Number of Elements in Module:15 (40 m² each)

Nominal Membrane Area per Module:6456 ft2 (600 m²)

Permeate Connections:(2)- 2” MNPT Connections

Air Connections:(2)- 2” MNPT Connections

Guide Pipe Connections:(2)- To fit 3” pipe

Typical Module Dry Weight:1278 lbs (580 kg)

Typical Module Wet Weight:1631 lbs (740 kg)
