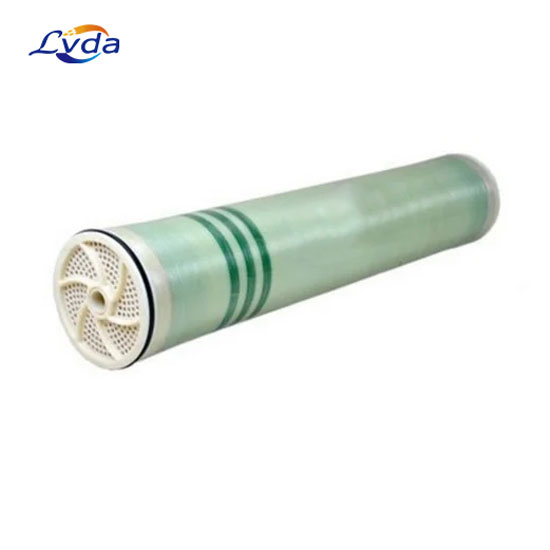

CAB3-4040 Cellulose Acetate

Product Details

CAB3-4040 provides high flow and rejection with excellent tensile strength. These are constructed sanitary style with a polypropylene net wrap and its components conform to FDA regulation.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Feedwater Chlorine Concentration: 0.3 - 0.5 PPM (1.0 PPM maximum)

Maximum Operating Temperature: 104 °F (40 °C)

Feedwater pH Range: 4.0 - 6.0

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to

 Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
