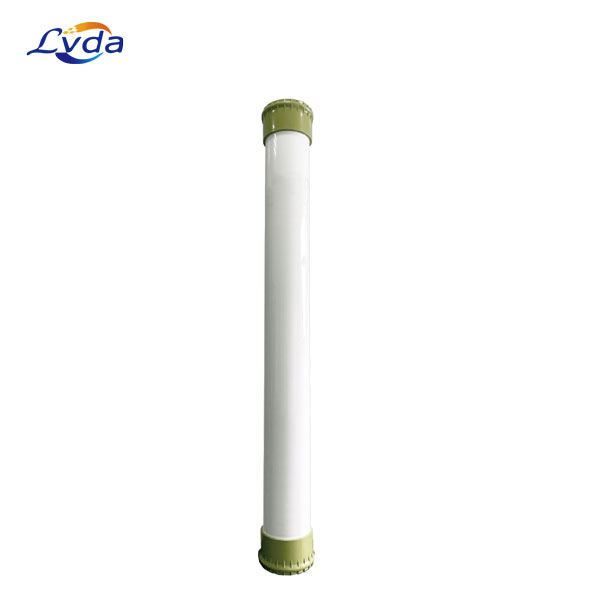

Model Number: HYDRAcap-MAX-80 HYDRAcap-MAX-4040

Filtrate Flow : 15.7 – 51.0 gpm (3.6 – 11.6 m3 /h)

Bacteria removal : ≥ 4 log

Nominal Membrane Area : 1130 ft2 (105 m2 )

Fiber Dimensions : ID 0.024” (0.6 mm), OD 0.047” (1.2 mm)

Pore size : 0.08 micron

Get Quotation

Product Details

HYDRAcap-MAX-80 is used to treat a wide range of highly variable waters as either primary treatment or as pretreatment to reverse osmosis (RO) and nanofiltration (NF)

Application Data

Typical Filtrate Flux Range: 20 – 65 gfd (34 – 110 l/m2/h)

 Maximum Applied Feed Pressure: 73 psig (5.0 bar)3

Maximum Transmembrane Pressure 30 psig (2.0 bar)

Instantaneous Chlorine Tolerance: 5000 ppm4

Maximum Chlorine Exposure: 1,000,000 ppm-hrs

 Maximum Feed Turbidity: 300 NTU5

 Maximum Operating Temperature: 104 °F (40 °C)

 pH Operating Range: 2.0 – 11.0

 Cleaning pH Range: 1.0 – 13.0

 Operating Mode: Outside to Inside Filtration Dead End or Cross flow mode
