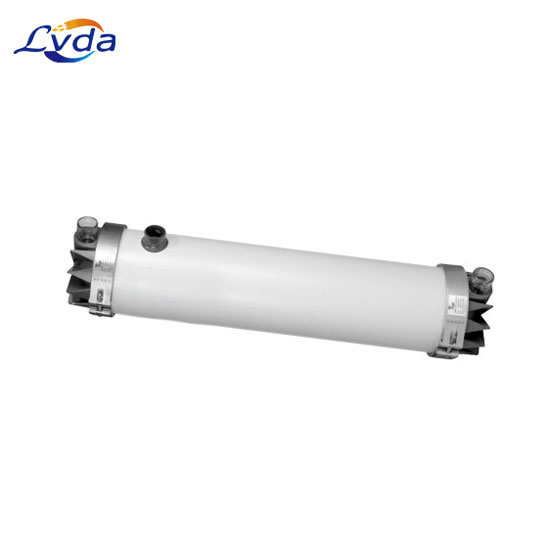

HYDRAcap-80 Ultrafiltration
HYDRAcap-80 Ultrafiltration

HYDRAcap-80 Ultrafiltration

Other water filters

Model Number: HYDRAcap-80 HYDRAcap-80+

Filtrate Flow : 16.3 – 39.5 gpm (3.7 – 9.0 m3 /h）

Membrane Polymer : Hydrophilic Polyethersulfone

MWCO, nominal : 150,000 Daltons

Nominal Membrane Area : 670 ft2 (62.2 m2 )

Fiber Dimensions : ID 0.031” (0.8 mm), OD 0.055” (1.4 mm)

Get Quotation

Product Details

HYDRAcap-80 is a technology using ultrafiltration PVDF TIPS hollow fibers (0.08 micron pore size). The pressurized hollow fiber modules are suitable for a wide range of applications as either final treatment or as pretreatment to reverse osmosis (RO) and nanofiltration (NF).

Application Data

Typical Filtrate Flux Range: 35 – 85 gfd (59 – 145 l/m2/h)

Maximum Applied Feed Pressure: 73 psig (5 bar)

Maximum Transmembrane Pressure: 20 psig (1.4 bar)

Maximum Backwash Transmembrane Pressure: 20 psig (1.4 bar)

Instantaneous Chlorine Tolerance: 100 ppm

Instantaneous Hydrogen Peroxide Tolerance: 200 ppm

Maximum Chlorine Exposure: 100,000 ppm-hrs

Maximum Instantaneous Feed Turbidity: 100 NTU

Maximum Operating Temperature: 104 °F (40 °C)

pH Operating Range: 4.0 - 10.0

Cleaning pH Range: 1.5 – 13.0

Operating Mode: Inside to Outside Filtration Direct flow or Crossflow
