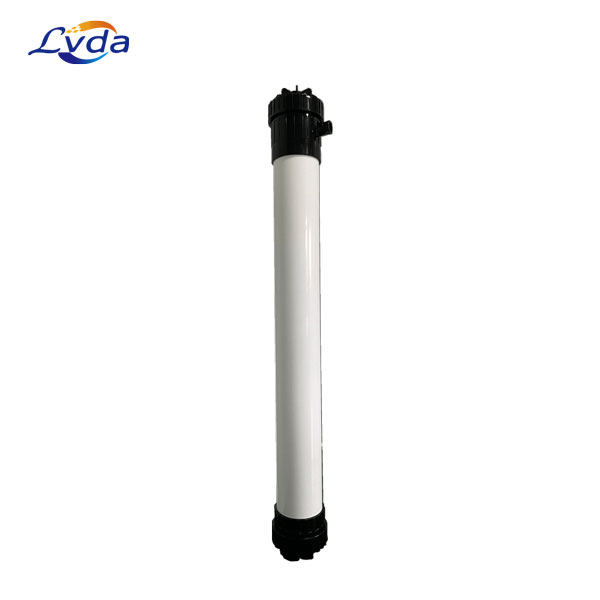

HYDRAcap60-DWI Ultrafiltration

Product Details

HYDRAcap60-DWI is a technology using ultrafiltration PES hollow fibers (0.025 um pore size). The modules are suitable for a wide range of applications including ground water and pretreated surface water for potable water production. The low fouling hydrophilic structure enables to operate at high fluxes for long filtration periods.

Application Data

Typical Filtrate Flux Range: 35 – 85 gfd (59 – 145 l/m2/h)

Maximum Applied Feed Pressure: 73 psig (5 bar)

Maximum Transmembrane Pressure 20 psig (1.4 bar)

Maximum Backwash Transmembrane Pressure: 20 psig (1.4 bar)

Instantaneous Chlorine Tolerance: 100 ppm

Instantaneous Hydrogen Peroxide Tolerance: 200 ppm

Maximum Chlorine Exposure: 200,000 ppm-hrs

Maximum Instantaneous Feed Turbidity: 100 NTU

Maximum Operating Temperature: 104 °F (40 °C)

pH Operating Range: 4.0 - 10.0

Cleaning pH Range: 1.5 – 13.0

Operating Mode: Inside to Outside Filtration Direct flow or Crossflow
