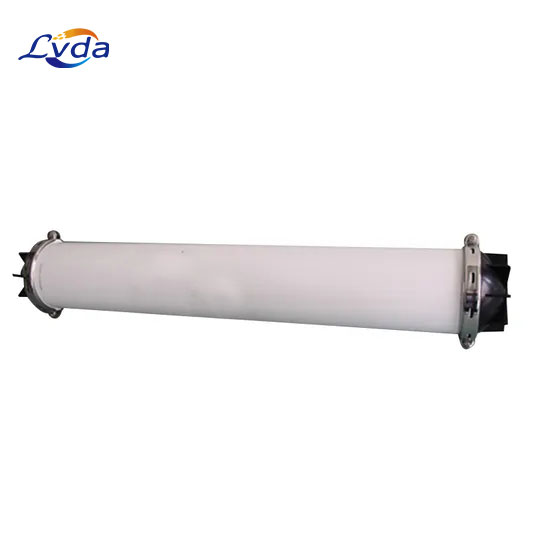

HYDRAcap-60-E Ultrafiltration
HYDRAcap-60-E Ultrafiltration

HYDRAcap-60-E Ultrafiltration

Other water filters

Model Number: HYDRAcap-60-E HYDRAcap-60+ HYDRAcap60 E+ HYDRAcap-60-LD HYDRAcap-60 ACS

Filtrate Flow : 11 – 30 gpm (2.7 – 6.8 m3 /h)

Membrane Polymer : Hydrophilic Polyethersulfone

Nominal Membrane Area : 500 ft2 (46 m2 )

Fiber Dimensions : ID 0.031” (0.8 mm), OD 0.055” (1.4 mm)

Pore Size : 0.02 micron

Get Quotation

Product Details

HYDRAcap-60-E is used to treat surface water, groundwater, seawater and wastewaters as either primary treatment or as pretreatment to reverse osmosis (RO) and nanofiltration (NF).

Application Data

 Typical Filtrate Flux Range: 35 – 85 gfd (59 – 145 l/m2/h)

 Maximum Applied Feed Pressure: 300 psig (20.7 bar)

 Maximum Transmembrane Pressure 20 psig (1.4 bar)

 Maximum Backwash Transmembrane Pressure: 20 psig (1.4 bar)

 Instantaneous Chlorine Tolerance: 100 ppm3

 Instantaneous Hydrogen Peroxide Tolerance: 200 ppm3

Maximum Chlorine Exposure: 200,000 ppm-hrs

 Maximum Instantaneous Feed Turbidity: 100 NTU

 Maximum Operating Temperature: 104 °F (40°C)

 pH Operating Range: 4.0 - 10.0

 Cleaning pH Range: 1.5 – 13.0

 Operating Mode: Inside to Outside Filtration Direct flow or Crossflow
