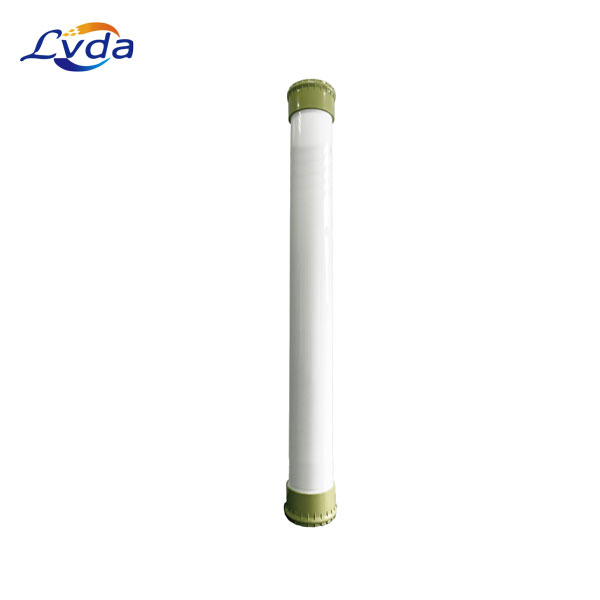

HYDRAcap-60 Ultrafiltration
HYDRAcap-60 Ultrafiltration

HYDRAcap-60 Ultrafiltration

Other water filters

Model Number: HYDRAcap-60

Filtrate Flow : 12.1 – 29.5 gpm (2.7 – 6.7 m 3 /h)

Membrane Polymer : Hydrophilic Polyethersulfone

Nominal Membrane Area : 500 ft2 (46 m 2 )

Fiber Dimensions : ID 0.031” (0.8 mm), OD 0.055” (1.4 mm)

Pore size : 0.02 micron

Get Quotation

Product Details

HYDRAcap-60 is used to treat surface water, groundwater, seawater and wastewaters as either primary treatment or as pretreatment to reverse osmosis (RO) and nanofiltration (NF).

Application Data

Typical Filtrate Flux Range: 35 – 85 gfd (59 – 145 l/m2/h)

Maximum Applied Feed Pressure: 73 psig (5 bar)

Maximum Transmembrane Pressure 20 psig (1.4 bar)

Maximum Backwash Transmembrane Pressure: 20 psig (1.4 bar)

Instantaneous Chlorine Tolerance: 100 ppm

Instantaneous Hydrogen Peroxide Tolerance: 200 ppm

Maximum Chlorine Exposure: 200,000 ppm-hrs

Maximum Instantaneous Feed Turbidity: 100 NTU

Maximum Operating Temperature: 104 °F (40  °C)

pH Operating Range: 4.0 - 10.0

Cleaning pH Range: 1.5 – 13.0

Operating Mode: Inside to Outside Filtration Direct flow or Crossflow
