Model Number: HYDRAcap-40-LD

Filtrate Flow : 5 – 12.3 gpm (1.1 – 2.8 m 3 /h)

Configuration : Capillary Ultrafiltration Module

Nominal Membrane Area : 208 ft2 (19.3 m 2 )

Fiber Dimensions : ID 0.047” (1.2 mm), OD 0.08” (2.0 mm）

Pore size : 0.02 micron

Get Quotation

Product Details

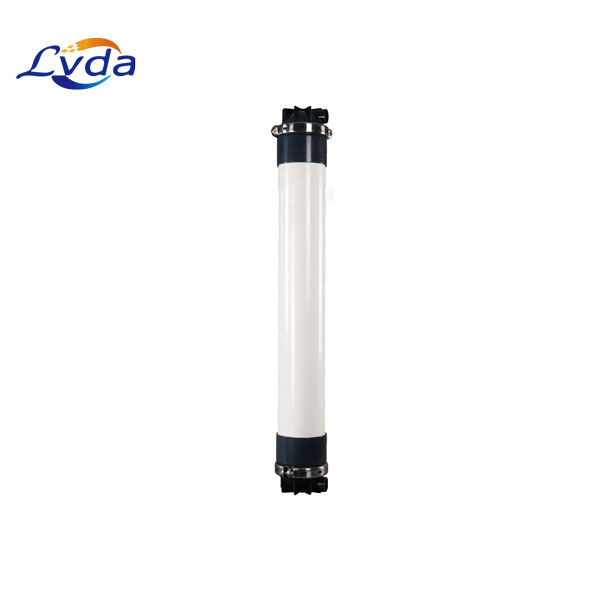

HYDRAcap-40-LD is a technology using ultrafiltration PVDF TIPS hollow fibers (0.08 micron pore size). The pressurized hollow fiber modules are suitable for a wide range of applications as either final treatment or as pretreatment to reverse osmosis (RO) and nanofiltration (NF).

Application Data

Typical Filtrate Flux Range: 35 – 85 gfd (59 – 145 l/m2/h)

Maximum Applied Feed Pressure: 73 psig (5 bar)

Maximum Transmembrane Pressure 20 psig (1.4 bar)

Maximum Backwash Transmembrane Pressure: 20 psig (1.4 bar)

Instantaneous Chlorine Tolerance: 100 ppm

Instantaneous Hydrogen Peroxide Tolerance: 200 ppm

Maximum Chlorine Exposure: 100,000 ppm-hrs

Maximum Instantaneous Feed Turbidity: 200 NTU

Maximum Operating Temperature: 104 F (40 C)

pH Operating Range: 4.0 - 10.0

Cleaning pH Range: 1.5 – 13.0

Operating Mode: Inside to Outside Filtration Direct flow or Crossflow
