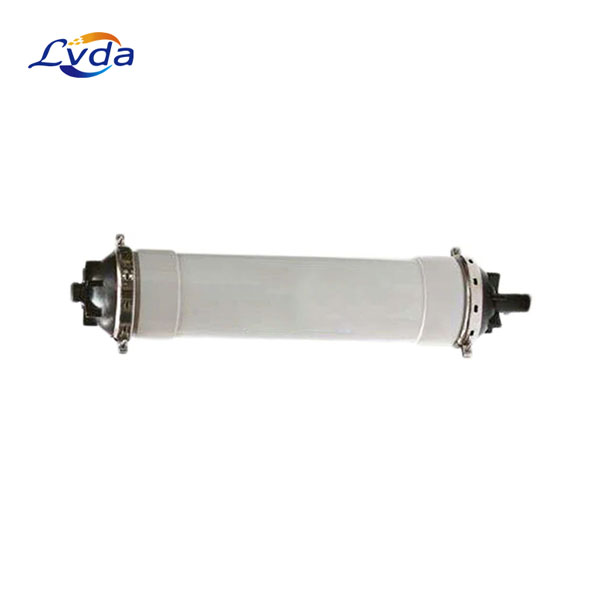

HYDRAcap-AM-2,5 Ultrafiltration
HYDRAcap-AM-2,5 Ultrafiltration

HYDRAcap-AM-2,5 Ultrafiltration

Other water filters

Model Number: HYDRAcap-AM-2,5

Filtrate Flow : 10 – 30 gpm (2.2 – 6.8 m 3 /h)

Filtrate Turbidity : ≤ 0.10 NTU

Bacteria remova : ≥ 4 log

Nominal Membrane Area : 538 ft2 (50 m 2 )

Fiber Dimensions : ID 0.024” (0.6 mm), OD 0.047” (1.2 mm)

Get Quotation

Product Details

HYDRAcap-AM-2,5 is used to treat surface water, groundwater, seawater and wastewaters as either primary treatment or as pretreatment to reverse osmosis (RO) and nanofiltration (NF).

Application Data

Typical Filtrate Flux Range: 20 – 65 gfd (34 – 110 l/m2/h)

Maximum Applied Feed Pressure: 73 psig (5.0 bar)

Maximum Transmembrane Pressure 30 psig (2.0 bar)

Instantaneous Chlorine Tolerance: 5000 ppm

Maximum Chlorine Exposure: 750,000 ppm-hrs

Maximum Feed Turbidity: 300 NTU

Maximum Operating Temperature: 104 °F (40 °C)

pH Operating Range: 4.0 – 10.0

Cleaning pH Range: 1.0 – 13.0

Operating Mode: Outside to Inside Filtration Dead End or Cross flow mode
