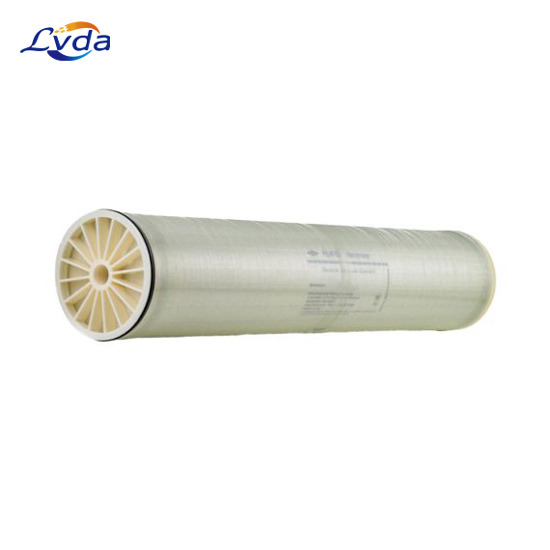

SWC6-LD RO Membrane Seawater
SWC6-LD RO Membrane Seawater

SWC6-LD RO Membrane Seawater

Other water filters

Model Number: SWC6-LD

Permeate Flow : 6,000 gpd (22.7 m3 /d) -12,000 gpd (45.4 m3 /d)

Salt Rejection : 99.6% (99.4% minimum) - 99.8% (99.7% minimum)

Applied Pressure : 600 psi (4.1 MPa) -800 psi (5.5 MPa)

Membrane Active Area : 400 ft2 (37.2 m2 )

Feed Spacer : 34 mil (0.86 mm)

Get Quotation

Product Details

SWC6-LD seawater desalination membranes are high productivity elements offering the highest levels of salt rejection and a consistently pure end product.

Application Data

Maximum Applied Pressure: 1200 psig (8.27 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113°F (45°C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 85 gpm (19.3 m3/h)

Minimum Brine Flow: 12 gpm (2.7 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
