Model Number: SWC6-8040

Permeate Flow : 6,000 gpd (22.7 m3 /d)-12,000 gpd (45.5 m3/d)

Salt Rejection : 99.6% (99.4 % min)-99.8 % (99.7 % min)

Boron Rejection (Typical) : 83.0%-91.0%

Applied Pressure : 600 psi (4.1 MPa)-800 psi (5.4 MPa)

Membrane Active Area : 400 ft2 (37.2m2 )

Get Quotation

Product Details

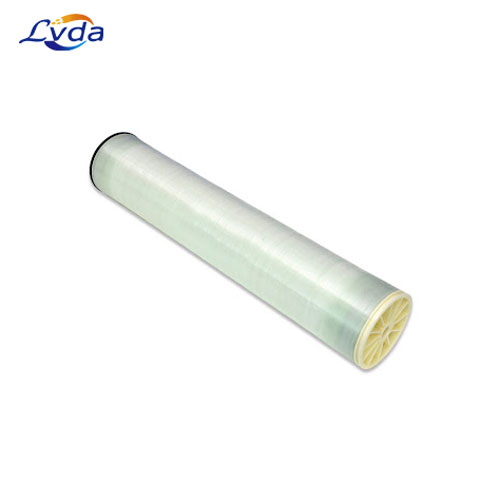

SWC6-8040 seawater desalination membranes are available in high productivity 8-inch and 4-inch elements, all offering the highest levels of salt rejection and a consistently pure end product.

Application Data

Maximum Applied Pressure: 1200 psig (8.27 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113  °F (45 °C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
