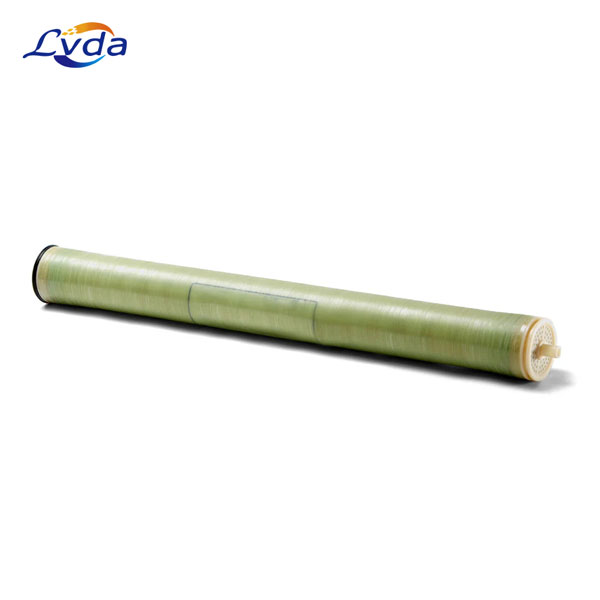

SWC6-LD-4040 Reverse Osmosis Membranes
SWC6-LD-4040 Reverse Osmosis Membranes

SWC6-LD-4040 Reverse Osmosis Membranes

Other water filters

Model Number: SWC6-LD-4040

Permeate Flow : 1,170 gpd (4.43 m 3 /d) -2,350 gpd (8.90 m 3 /d)

Salt Rejection : 99.6% (99.4% min)-99.7% (99.5% min)

Applied Pressure : 600 psi (4.1 MPa)-800 psi (5.5 MPa)

Membrane Active Area : 80 ft2 (7.4 m2 )

Feed Spacer : 34 mil (o.864 mm)

Get Quotation

Product Details

SWC6-LD-4040 seawater desalination membranes are high productivity elements offering the highest levels of salt rejection and a consistently pure end product.

Application Data

Maximum Applied Pressure: 1000 psig (6.9 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45°C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 16 GPM (3.6 m3/h)

Minimum Recovery for any Element: 10%

Maximum Pressure Drop for Each Element: 15 psi
